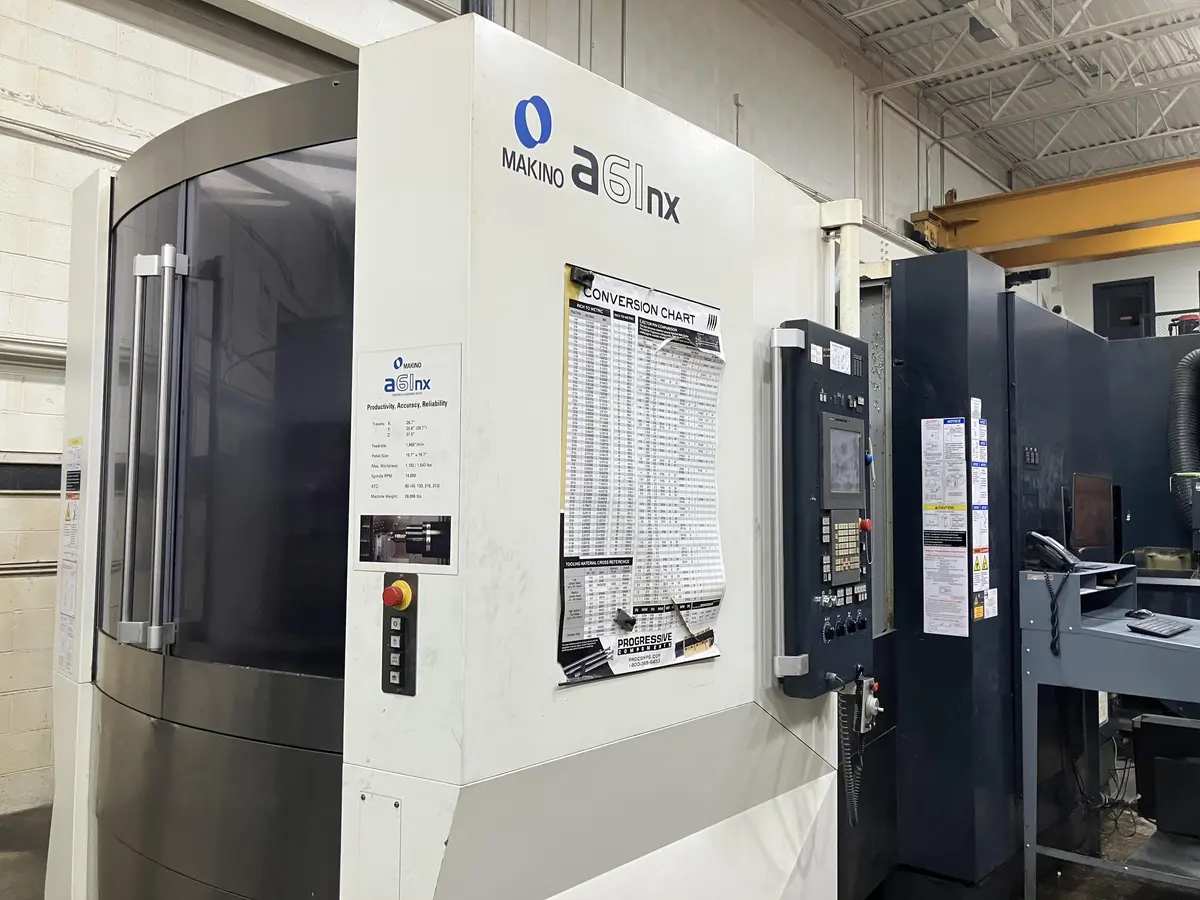

Makino A61NX 4 Axis Horizontal Machining Center (2013)
Have one to sell?
ConditionUsed
1 available
Makino A61NX 4 Axis Horizontal Machining Center (2013)
Makino A61NX 4 Axis Horizontal Machining Center
New 2013
Control: Professional 5
Number of Pallets 2
Pallet Size 19.7" x 19.7"
Maximum Pallet Load 1100 LBS
Maximum Work Piece Size 31.5" x 39.4"
X-Axis Travel 28.7"
Y-Axis Travel 25.6"
Z-Axis Travel 31.5"
B-Axis Contouring - Minimum .001 Degrees
Rapid Traverse Rate - All Axes 2362 IPM
Cutting Feed Rate - All Axes 1969 IPM
Spindle Speed Range 50 -14,000 RPM
Spindle Motor 30 HP
Spindle Taper HSK 63A
Automatic Tool Changer Capacity 60 Tools
Maximum Tool Weight 26.4 LBS
Tool Change Time - Tool to Tool .9 Seconds
Tool Change Time - Chip to Chip 2.5 Seconds
Approximate Machine Dimensions 115" x 190" x 115"
Approximate Machine Weight 27,000 LBS
Fanuc PRO 5 CNC Control w/10.4" LCD Screen
RS-232C Port & Ethernet Interface for DNC Operation
Rigid Tapping
1000 PSI Coolant Thru Spindle
Chip Blaster 1000 PSI Pump Unit
Pallet Indexing 4th Axis
48 Work Offsets
67,200' Extended Program Storage
4000 Registerable Programs
600 Macro Commands
External Setting Orientation
200V Breaker
Chip Conveyor
