Cincinnati Milacron 3 Axis CNC Traveling Gantry Type Double Column Gantry Mill
Have one to sell?
ConditionUsed
1 available

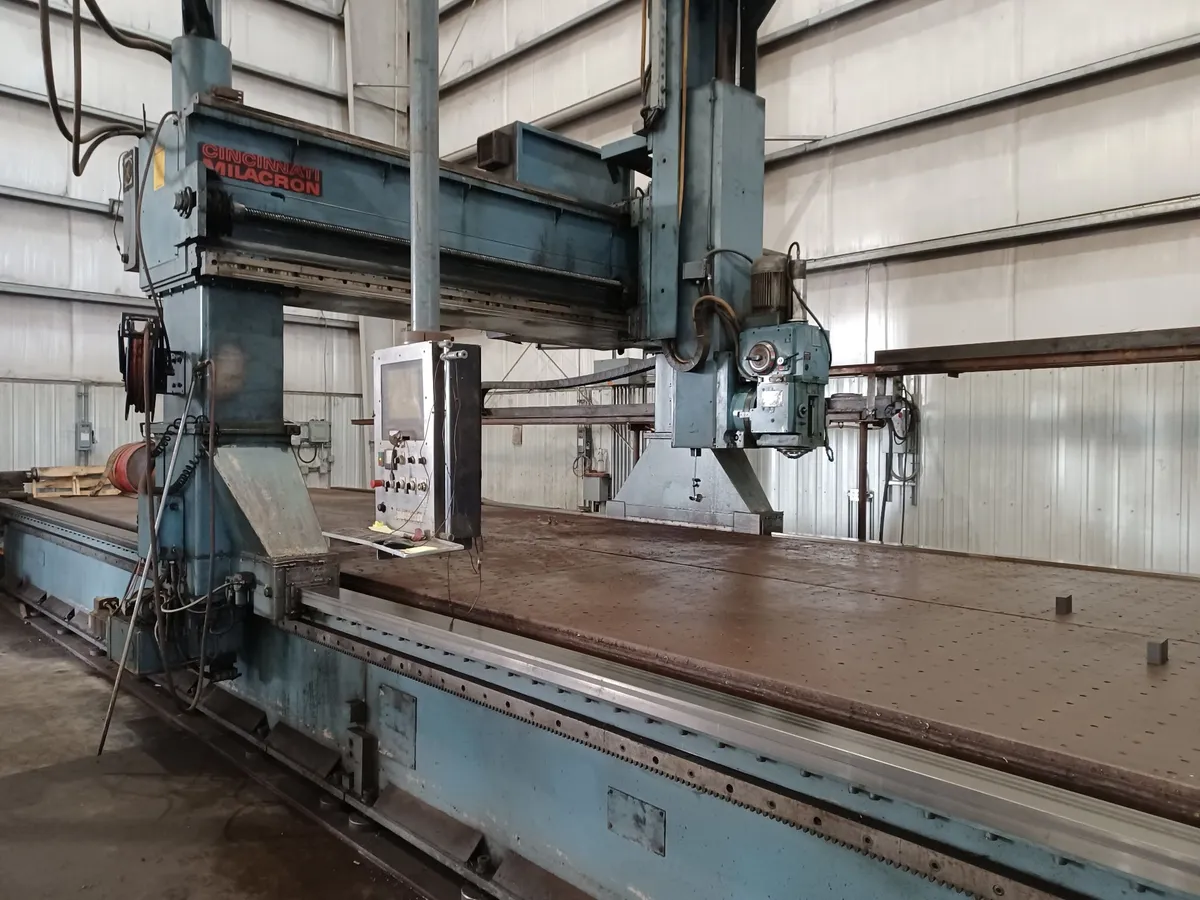

Cincinnati Milacron 3 Axis Traveling Gantry Type Double Column CNC Gantry Mill with Swiveling Head.
Cincinnati Milacron 3 Axis Traveling Gantry Type Double Column CNC Gantry Mill with Swiveling Head
X Travel: 430"
Y Travel: 120"
Z Travel: 48"
Table Size: 480" x 120"
Daylight Under Bridge: 50”
Distance between columns: 128”
Quill Travel: 7"
30 HP Rambaudi Universal Head
Manual A-axis tilt (+/- 25 deg)
Spindle Speeds: 3000 RPM
Spindle Taper: 50 Taper
Windows based Delta Tau Delta Systems CNC control
Rambaudi Universal Head
Ballscrews on Y-Axis and Z-Axis
Rack/Pinion on X-Axis
Price Includes Loading
