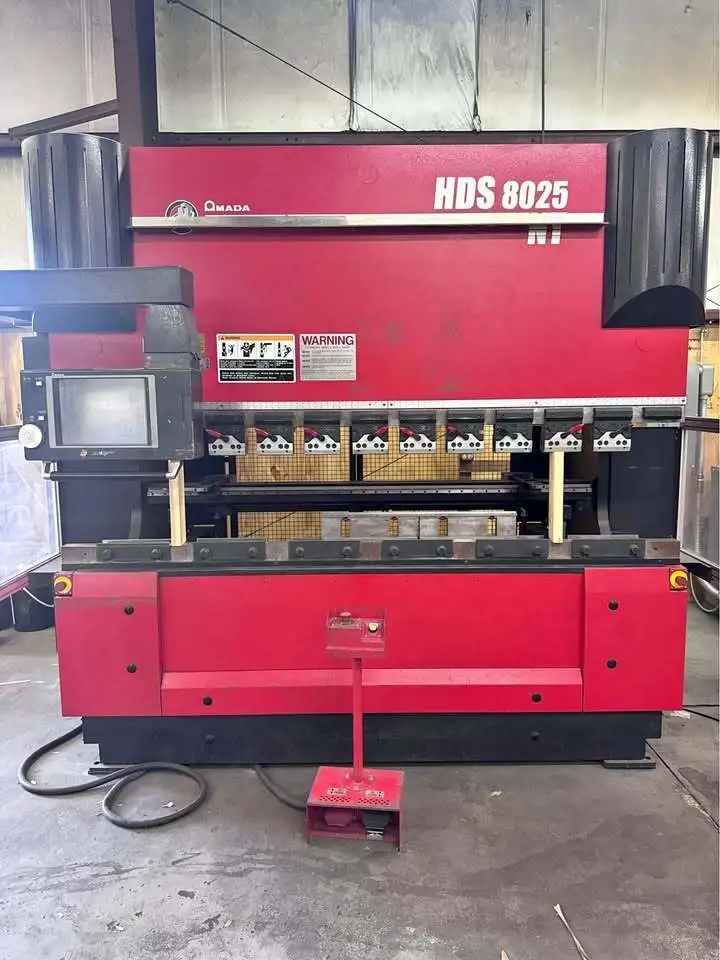

Press Capacity: 88 Tons (800 kN)
Maximum Bending Length: 100.4 inches (2550 mm)
Table/Bed Length: 102.4 inches (2600 mm)
Distance Between Side Frames: 87.0 inches (2210 mm)
Stroke Length: 7.87 inches (200 mm)
Open Height: 19.7 inches (500 mm)
Throat Depth: 16.34 inches (415 mm)
Table Height: 37.80 inches (960 mm)
Approach Speed (Upper Beam): 472 inches per minute (IPM)
Bending Speed (Upper Beam): 47 IPM
Return Speed (Upper Beam): 474 IPM
Ram Repeatability: ±0.00004 inches (0.001 mm)
Backgauge Axis Range: L-Axis: 27.55" | Y-Axis: 86.6" | Z-Axis: 9.8"
Backgauge Feed Speeds: L-Axis: 1,180 IPM | Y-Axis: 2,362 IPM | X-Axis: 393 IPM
Backgauge Repeatability: L-Axis: ±0.0008 inches
