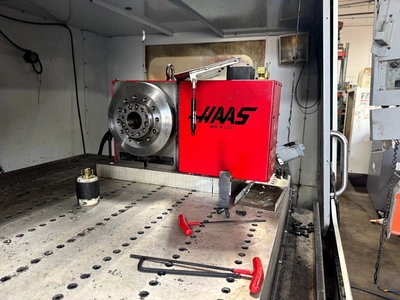

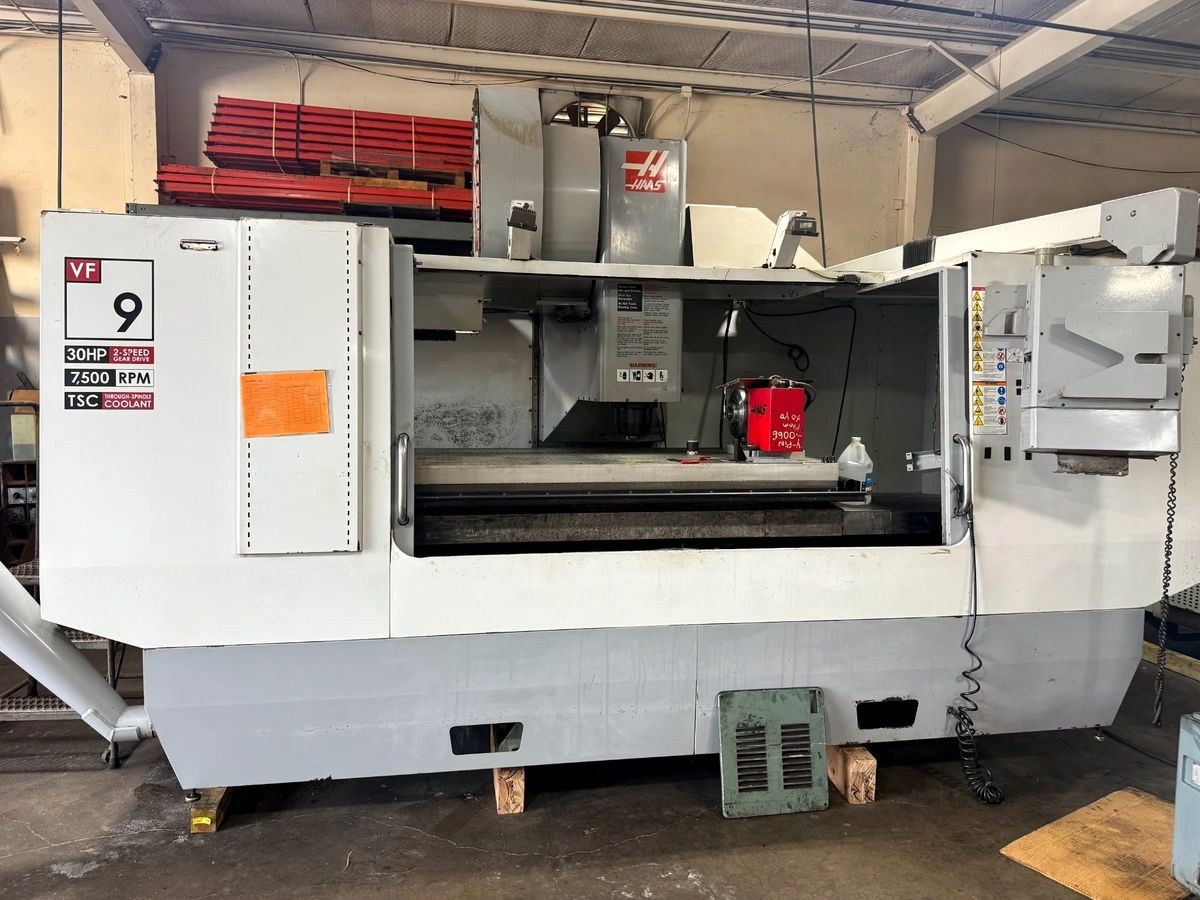

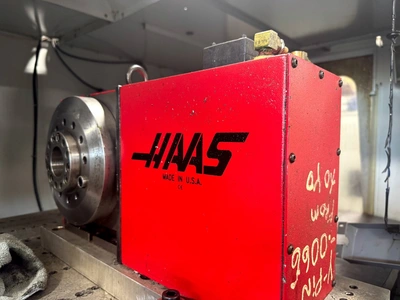

Haas VF9/50 4 Axis Vertical Machining Center (2007)

Haas VF9/50 45 Axis Vertical Machining Center (2007)

X-Axis: 84.0 in (2,134 mm)
Y-Axis: 40.0 in (1,016 mm)
Z-Axis: 30.0 in (762 mm)
Table Size: 84.0 in x 36.0 in (2,134 mm x 914 mm)
Max Weight on Table: 4,000 lbs (1,814 kg)
Spindle Taper CAT 50 / ISO 50Drive System: 2-Speed Gearbox
Max Speed: 7,500
Max Rating: 30.0 hp (22.4 kW) 2 Speed Gear Box
Max Torque: 340.0 ft-lbf @ 700 RPM (460.0 Nm @ 700 RPM)

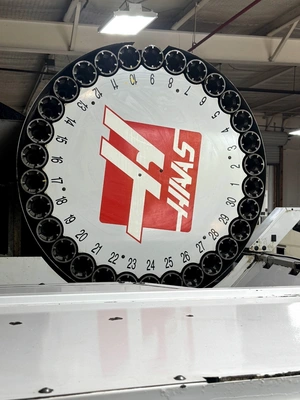

Automatic Tool Changer (ATC)Capacity: 30+1 side-mount tool changer
Max Tool Diameter: 4.0 in (102 mm)
Max Tool Diameter (Adjacent Empty): 10.0 in (254 mm)
Max Tool Length: 16.0 in (406 mm)
Max Tool Weight: 30.0 lbs (13.6 kg)
Feedrates and Physical Dimensions
Max Rapids (X, Y, Z): 600 inches per minute (15.2 m/min)
Max Cutting Feedrate: 500 inches per minute (12.7 m/min)
Machine Weight: Approx. 28,300 lbs
Current Electrical Arrangement
