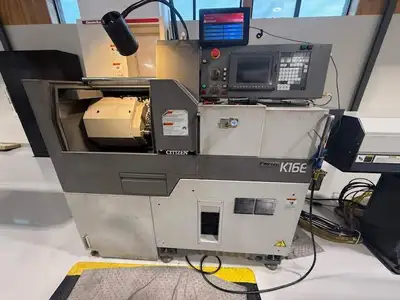

CITIZEN K16E CNC Swiss Type (2010)

Bar Capacity: 0.63"
Spindle Speed: 15,000 RPM
Spindle Motor: 4 HP
Max Turning Dia: 0.63"
Max Turning Length: 7.87"
Axes: X1, Y1, Z1, X2, Z2, C1, C2
Plus A7 - Loader Axis
Maximum machining diameter (D): 0.62"
Maximum machining length (L): 7.87" / 1 chucking
Maximum front drilling diameter: 0.39"
Maximum front tapping diameter (tap, die): M8
Spindle through-hole diameter: .78"
Main spindle speed: 15,000 rpm
Maximum drilling diameter for gang rotary tool: 0.19"
Maximum tapping diameter for gang rotary tool: M4
Spindle speed of gang rotary tool (Rating): 6,000 rpm (Rating: 4,500 rpm)
Maximum chuck diameter of back spindle: .63"
Maximum protrusion length of back
spindle workpiece: 1.57"
Maximum protrusion length: 3.15"
Maximum drilling diameter for back spindle: .24"
Maximum tapping diameter for back spindle: M5
Back spindle speed: 10,000 rpm
Maximum drilling diameter for back
tool post rotary tool: 0.19"
Maximum tapping diameter for back
tool post rotary tool: M5
Spindle speed of back
tool post rotary tool (Rating): 4,500 rpm
Maximum number of tools to be mounted: 23
Turning tools on the gang tool post: 6 to 7
Cross rotary tools: 4 to 8
Rotary tools for front drilling: 4
Tools for front drilling: 3 to 4
Dimensions: 72" x 42" x 66"
Weight: 4,850 LBS
