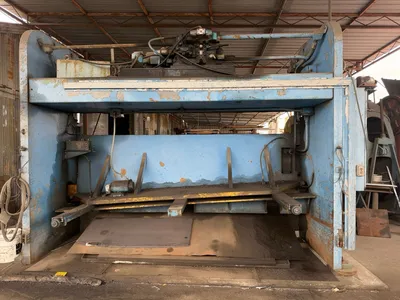

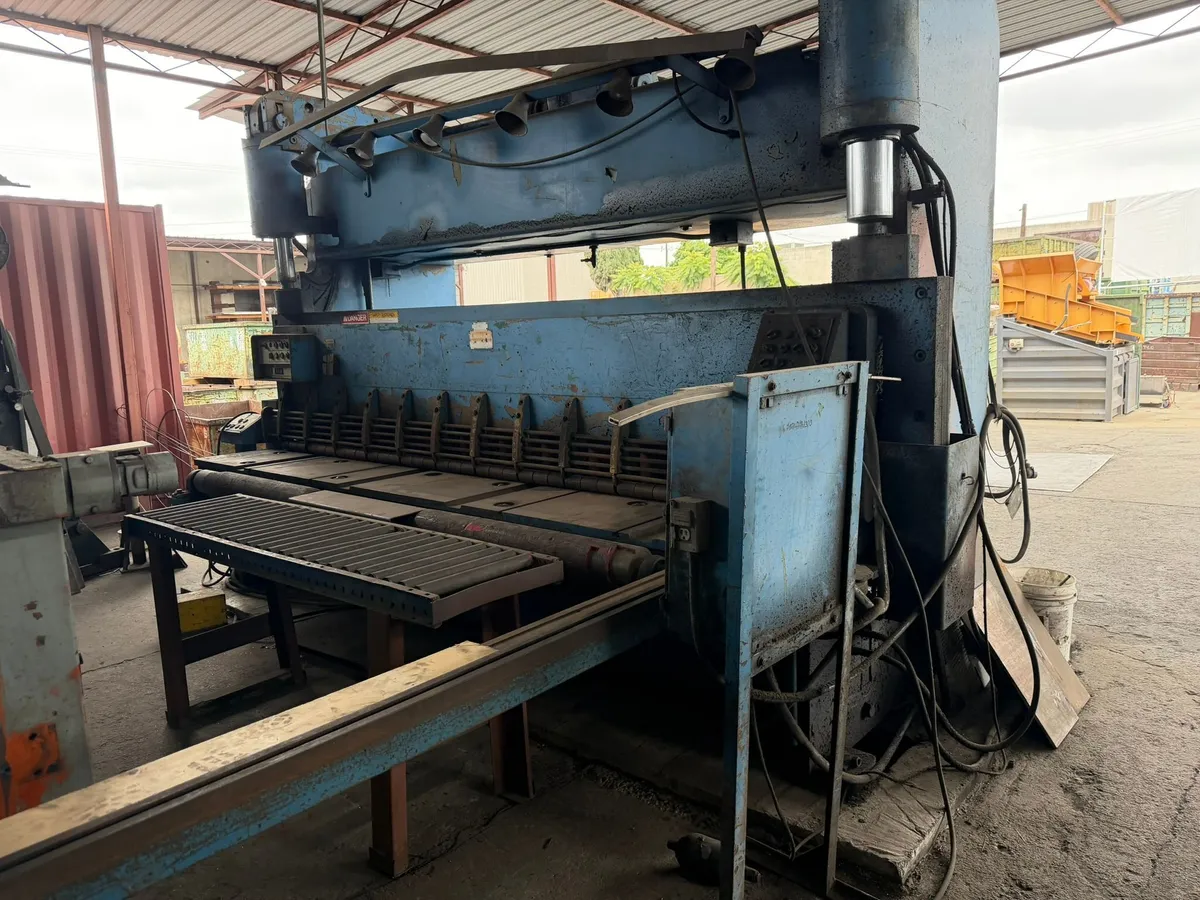

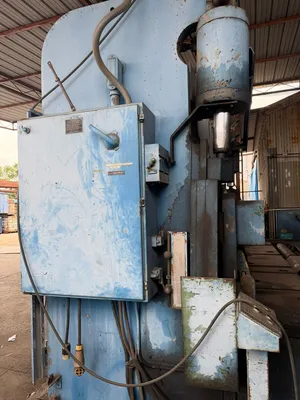

Cincinnati 5FL-12 5/8" x 12' Hydraulic Shear

Cincinnati 5FL-12 5/8" x 12' Hydraulic Shear

Nominal Shearing Capacity (Mild Steel): 5/8" (.625")
Maximum Shearing Capacity: 3/4" (.750" with increased rake angle)
Nominal Cutting Length: 12 ft (144 inches)
Distance Between Housings: 12 ft 3 in (147 inches)
Depth of Throat (Gap): 18 inches
Main Motor Power: 40 HP
Mechanical & Ram Performance
Nominal Rake Angle: 1/2" per foot
Maximum Rake Angle: 3/4" per foot
Full-Length Cutting Speed: 12
Strokes Per Minute (SPM)
Short-Length Cutting Speed (24" Stroke): 33
Strokes Per Minute (SPM)
Ram Advance Speed: 135 Inches Per Minute (IPM)
Ram Return Speed: 290 Inches Per Minute (IPM)
Material Holddown System
Total Holddown Pressure: 41 Tons
Holddown Type: Independent hydraulic plunge-style holddown feet
Physical Footprint
Overall Length: 180 inches (15 ft)
Overall Depth: 84 inches (7 ft)
Overall Height: 120 inches (10 ft)
Approximate Shipping Weight: 46,700 lbs

Standard Equipped Features
Back Gauge: Front-operated power back gauge
Right Hand Squaring Arm: 12 ft left-hand mounted squaring arm.
Heavy-duty front material support arms.
Lubrication: Automatic centralized pressure lubrication system,
Integrated ball transfers and Infeed for easier heavy plate handling.
