Bystronic Byjet 3015 Waterjet (2004)
Bystronic Byjet 3015 Waterjet (2004)

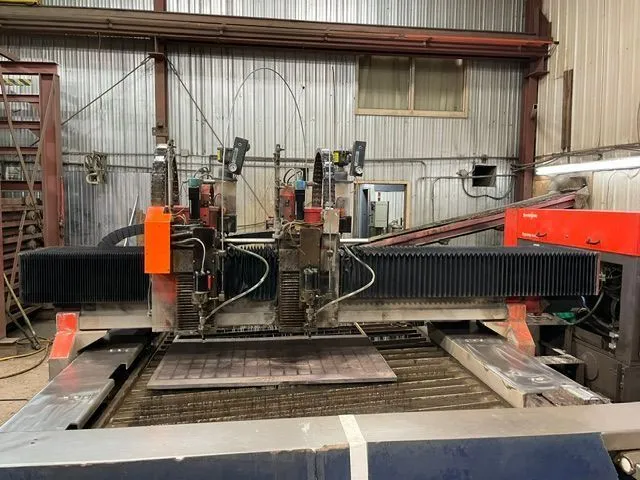

Cutting Area (X x Y): 5' x 10'
Z-Axis Travel: 7.87"
Standard Head Configuration: 2 independent cutting heads to maximize sheet layout production.
Maximum Material Capacity: Supports workpieces weighing up to 3500 kg on the specialized structural slatted grid.
Maximum Axis Speed: 60 m/min parallel axis travel speed.
Positioning Accuracy: ± 0.08 mm deviation per axis, with a ± 0.025 mm average spread.
Pump and Pressure Infrastructure

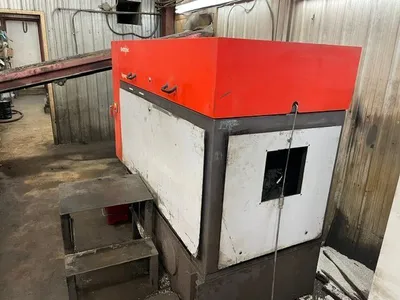

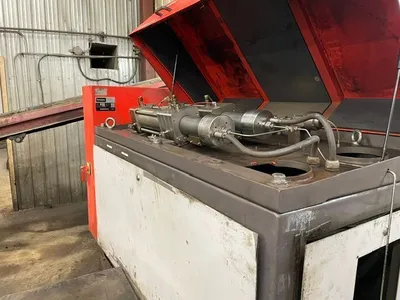

Standard High-Pressure Pump: Bystronic ByPump 50 APC intensifier pump.
Motor Rating: 50 HP (approx. 37 kW) power capacity.
Maximum Operating Pressure: 3600 bar to 3800 bar (~55,000 PSI).
Made in Switzerland
