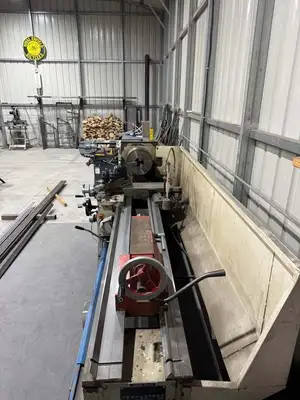

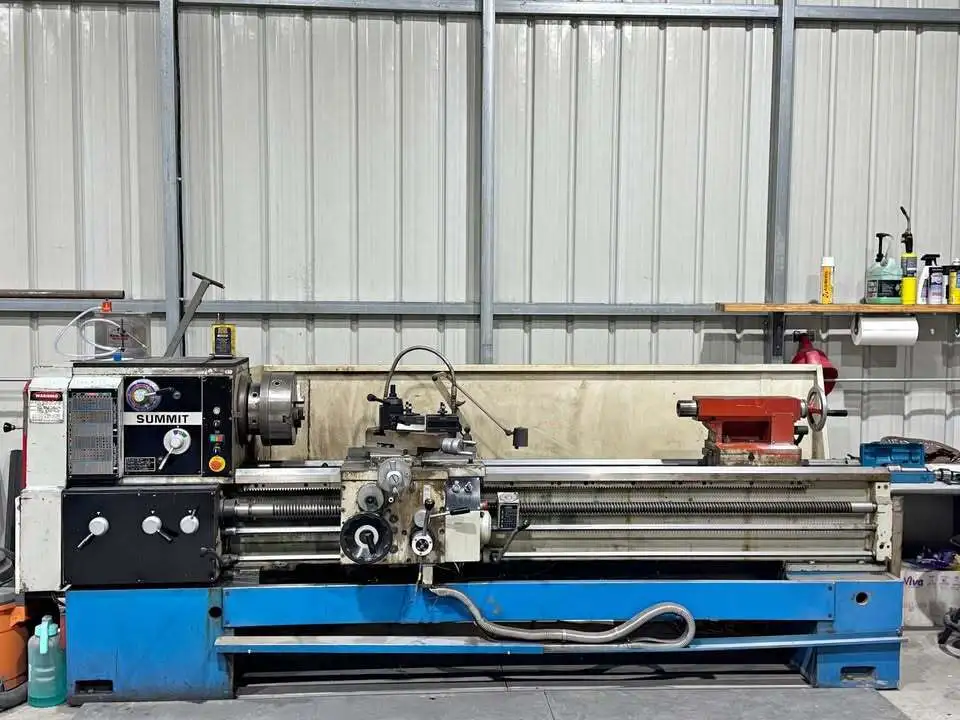

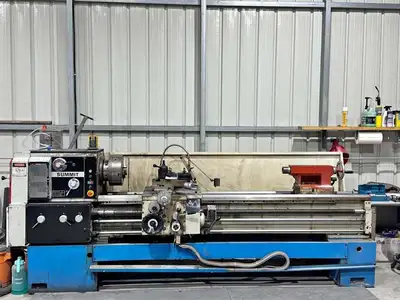

SUMMIT 20X80 Engine Lathe

Swing over bed: 20-1/4" (515 mm)
Distance between centers: 80" (2,000 mm)
Swing over cross slide: 11-7/8" (302 mm)
Swing over gap: 27-5/8" (702 mm)
Length of gap: 15" (380 mm)
Width of bed: 15-3/4" (400 mm)
Bed depth: 16-7/8"
Bed hardness: 42-48 Rockwell C
Hole through spindle (Spindle bore): 4-1/8" (105 mm)
Spindle nose type: D1-8 Camlock
Spindle speeds: 15 geometric steps ranging from 11.5 to 1,400 RPM
Headstock center taper: No. 6 Morse Taper (MT)
Main drive motor: 10 HP (7.5 kW)
Travel of spindle barrel: 9-1/2"
Diameter of spindle barrel: 3-1/2"
Tailstock center taper: #5 Morse Taper (MT)
Threads per inch (TPI): (64 changes) 1/4 to 60 TPI
Metric threads: (64 changes) 0.5 to 120 mm pitch
Module threads: (64 changes) 0.125 to 30
Diametral pitch: (64 changes) 1 to 240
Longitudinal feed range: 0.00145 to 0.44474 IPR (124 selections)
Cross slide travel: 12-1/8" to 12-1/2"
Compound rest travel: 5-3/8"
Taper attachment range: +/- 10 degrees
Overall dimensions: 156" L x 48" W x 60" H
Weight - 8,600 lbs Approx.
