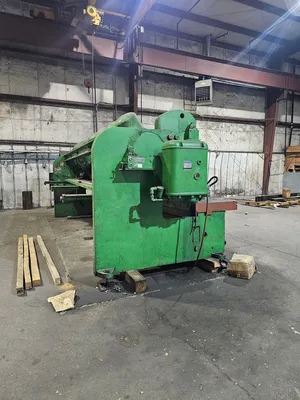

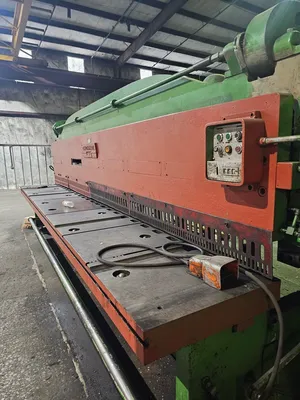

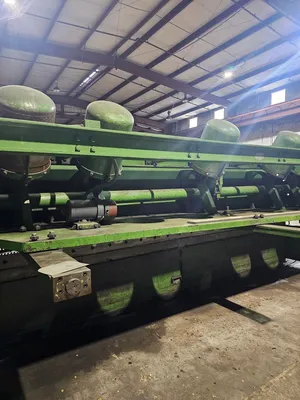

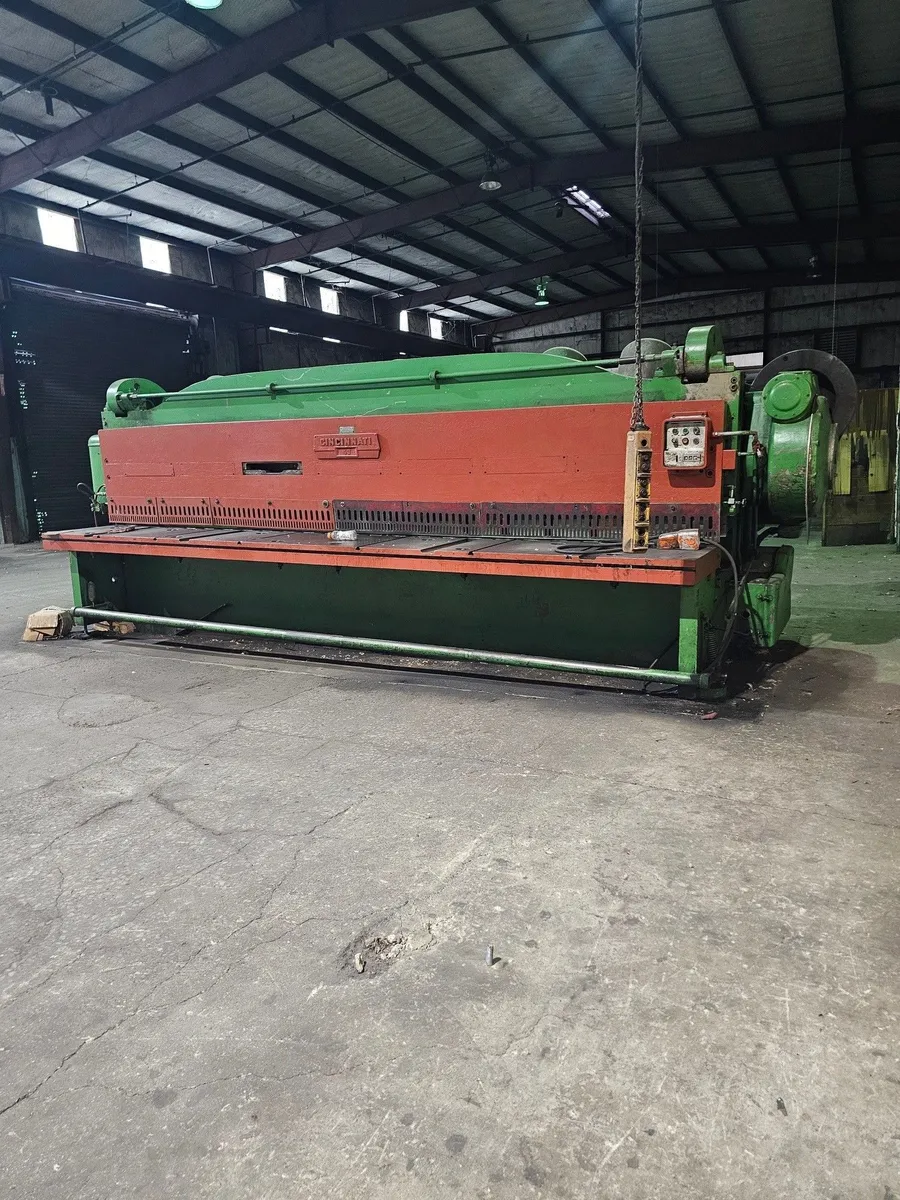

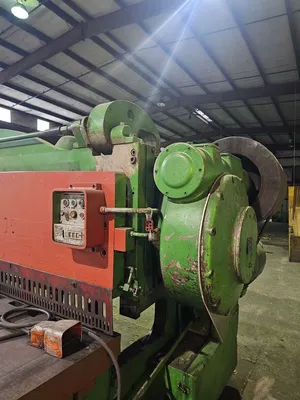

Cincinnati Model 4316 3/8" x 16 Mechanical Power Shear (1967)
Have one to sell?
ConditionUsed
1 available
Cincinnati Model 4316 3/8" x 16 Mechanical Power Shear (1967)
Cincinnati Model 4316 3/8" x 16 Mechanical Power Shear
16' x 3/8" Mild Steel Capacity
Max Thickness 0.375"
Length of Blade 192"
Hyd/Mech Mech
Back Gauge 48"
Power 20 hp
SPM 40 strokes/min.
20 HP Motor
Length of Knives 196"
Gap 18"
Rake Angle 21/64"
Holddowns 17 Hydraulic
Holddowns to Knife Edge 1-1/8"
Distance Under Holddowns 1"
Floor to Top of Bed 32"
S.P.M. Approx. 40
Dimensions 102" W x 100" H x 21' L
Weight 59000
48" Front Operated Power Back Gauge with Pushbuttons for Fine Adjustment Forward
Rapid Traverse Forward
Backward & Readout Pushbuttons for Start - Stop
Automatic Oil Lubrication
(5) Spring Counterbalances
(6) Dovetail Slots in Top of Bed
Dovetail Slot in Front of Bed
Electric Foot Pedal
