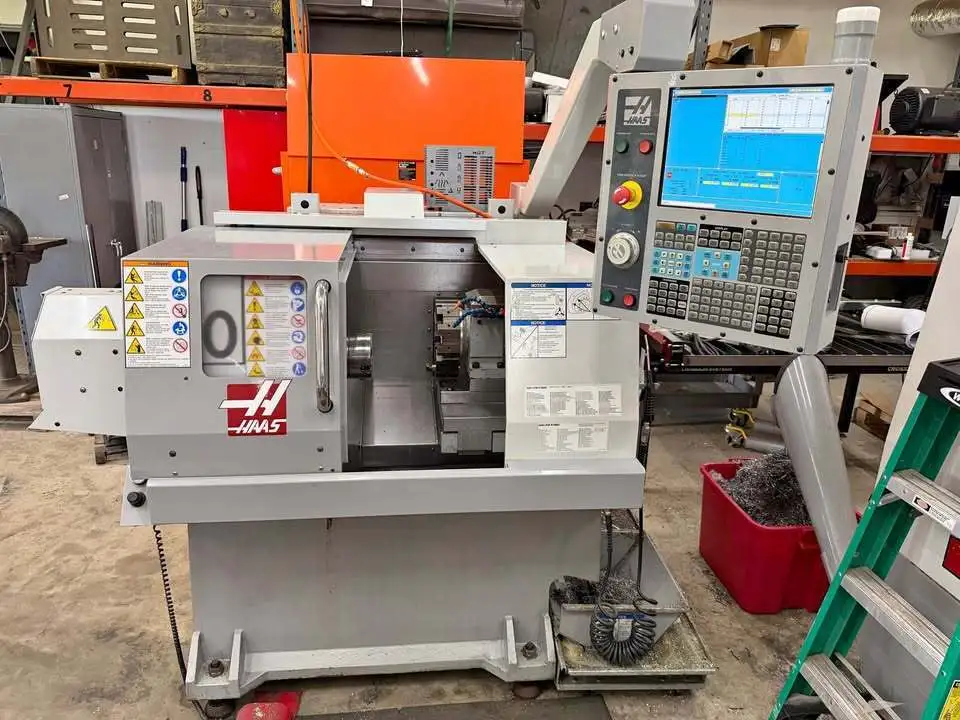

Haas GT10 2 Axis CNC Lathe (2008)

Haas GT10 2 Axis CNC Lathe (2008)

Capacity & Work Envelope
Max Cutting/Turning Diameter: 10" (254 mm)
Max Cutting/Machining Length: 8" to 10" (203 to 254 mm)
Swing Over Bed / Front Apron: 16.25" (412.75 mm)
Swing Over Cross Slide: 12.7" (322.6 mm)

Spindle
Spindle Speed: Max 3,000 RPM (some variants support up to 4,000 RPM)
Spindle Motor Power: 7.5 HP (5.6 kW) vector drive

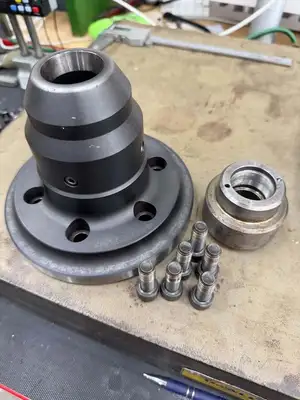

Spindle Nose: A2-5
Spindle Bore: 1.38" (35 mm)

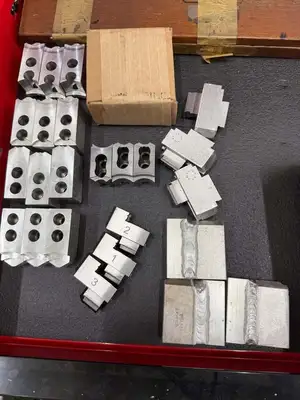

Standard Chuck Size: 5" (127 mm)

Travel & Feedrates
X-Axis Travel: 6" (152 mm)
Z-Axis Travel: 8" (203 mm)
Rapid Traverse Rate (X/Z): 710 IPM (18.0 m/min)

Tooling & Physical Dimensions
Tool Post/Turret: Typically equipped with an 8-station bolt-on tool turret or gang-tooling configuration.
Machine Weight: Approximately 3,080 lbs to 3,500 lbs (1,397 kg to 1,587 kg) depending on options.
Machine Dimensions: 82" L x 85" W x 75" H (208 cm x 216 cm x 191 cm).

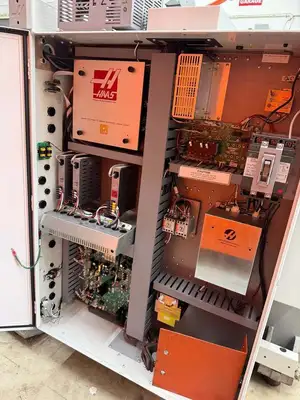

Power Requirement: 208-230 VAC, 3-Phase (some units configured for 240V 1-Phase).
