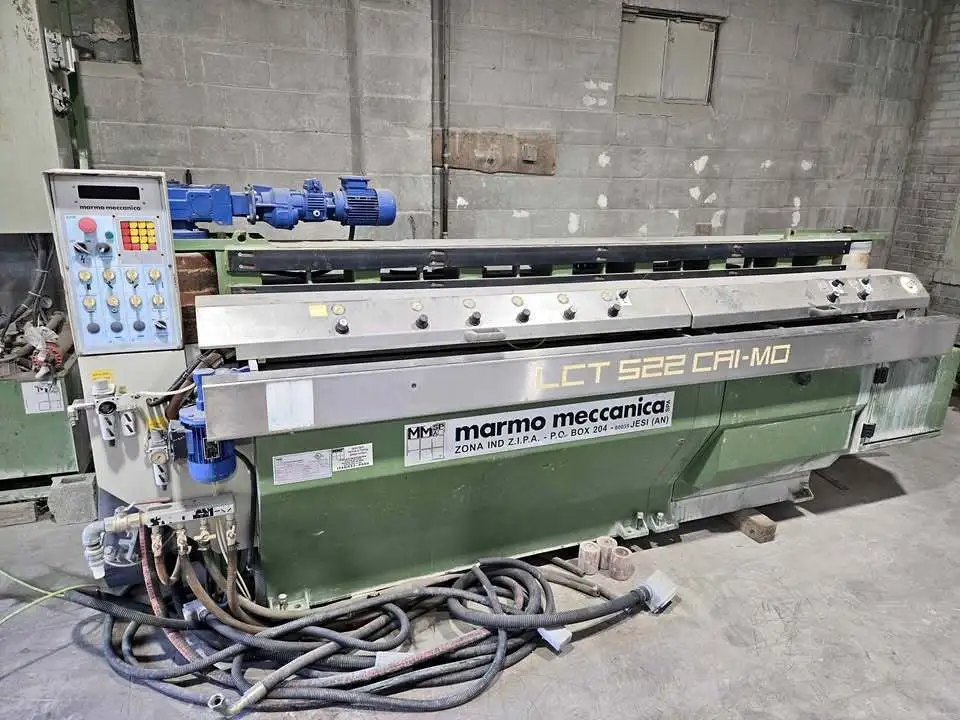

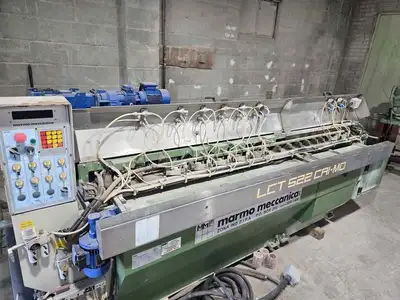

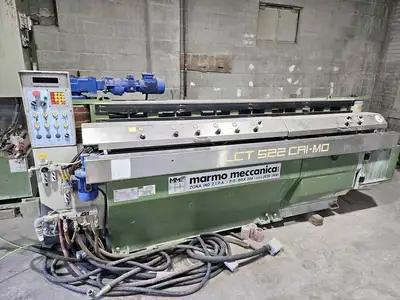

Marmo Meccanica LCT 522 Fully Automatic Straight Line Polisher (2004)
Marmo Meccanica LCT 522 Fully Automatic Straight Line Polisher (2004)

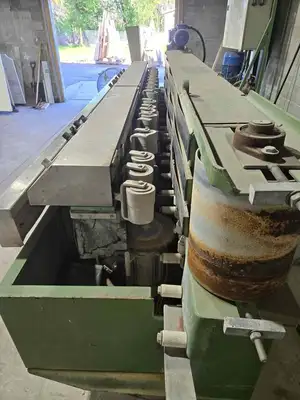

Number of Polishing Motors: 5
Number of Beveling Motors: 2
Number of Gauging Motors: 1
Number of Profile Motors: 1
Total Water Consumption: 15 gallons/minute

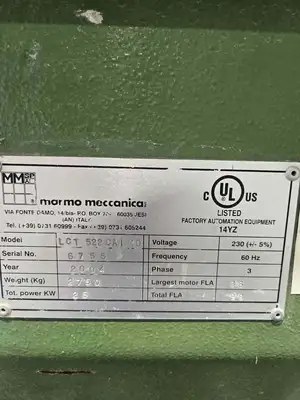

Total Power Requirement: 230v/3phase/100amps
Total Dimension of Machine: 12.2ft x 4ft x 5ft
Total Weight of Machine: 5,060lbs
Extension Tables: Standard 3.6ft in length
Working Speed: 30-60 Lineal feet per Hour
Maximum Abrasive Size: 5″ or 130mm
Minimum material size: 8 inches x 16 inches
Maximum material size: NO MAXIMUM
Fully automatic straight line polisher
Production speeds of 30 to 60 lineal feet per hour
No height restriction for material being processed, such as 2 ft. wide x 10 ft. high
The LCT will process from 1 to 6 cm thick material
The LCT will profile and polish laminated edges
Cost of lineal feet of finished edge amortized over 5 years is $ 3.00 per lineal foot
Dimensions of machine are 18 ft. x 4 ft. x 5 ft.
Requires very little space for set and operation
LCT will polish 12” x 12” tiles
User friendly computer program
Very fast set up time from one profile to the next
Machine has over 25 years of proven history
