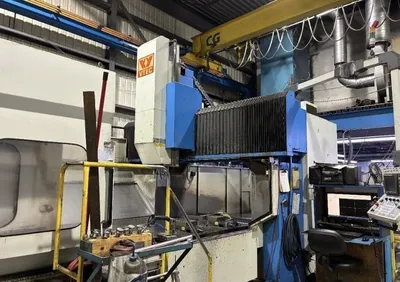

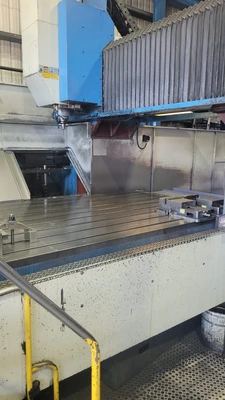

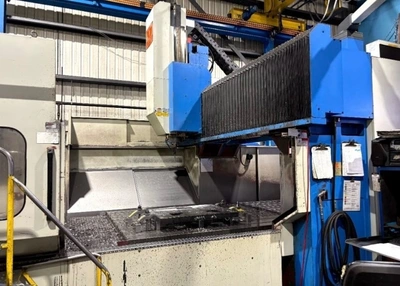

Vision Wide VB-3020 Double Column Bridge Type Gantry Mill Vertical Machining Center (2006)
Have one to sell?
ConditionUsed
1 available
(2006) Vision Wide VB-3020 Double Column Bridge Type Gantry Mill Vertical Machining Center, The VISION WIDE VB-3020 Heavy Duty Cutting Double Column Machining Center is a high-rigidity, bridge-type machine optimized for powerful material removal and precision in machining large components, such as mold bases. This model is constructed using traditional machinery techniques, relying on Harden Box Ways on all three axes to ensure exceptional stability and accuracy under heavy cutting loads.
Key Specifications and 5-Face Capability
The VB-3020 provides a substantial work envelope and robust performance characteristics:
Heavy Duty X/Y/Z Box Ways: All movement is supported by heat-treated and hand-scrapped Box Ways for low friction, precise feeding, and maximum rigidity during heavy cuts.
Structural Integrity: Features a Meehanite grade casting iron structure with a box-shape, V-shape reinforced bed designed to carry up to 11,000 kg stably.
Versatility: Equipped with a standard 4,000 RPM 2-step gear spindle and 40-tool magazine (optional), this model is ready for auto head attachments to perform 5-face mold surface machining.
Precision Layout: The spindle is positioned close to the Y box way to reduce unbalanced cutting moments and offset thermal expansion.
VISION WIDE VB-3020 Heavy Duty Cutting Double Column Machining Center (2006)
X-Axis Travel: 122.05 in. (3,100 mm)
Y-Axis Travel: 78.74 in. (2,000 mm)
Z-Axis Travel: 31.50 in. (800 mm) standard, with a 40.16 in. (1,020 mm) option.

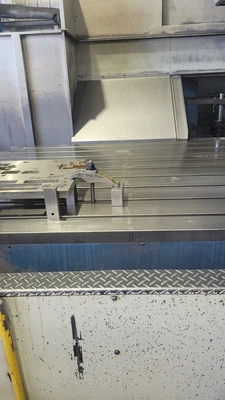

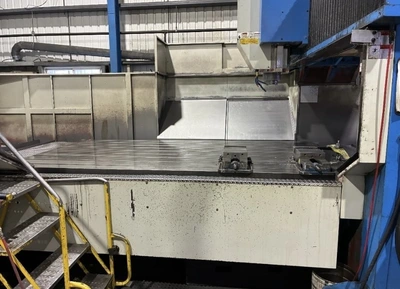

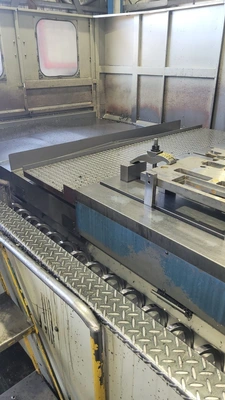

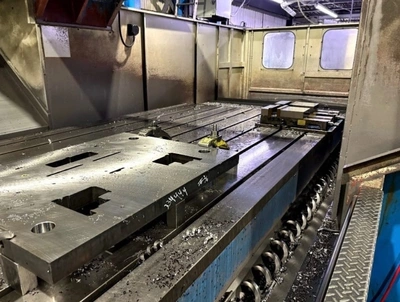

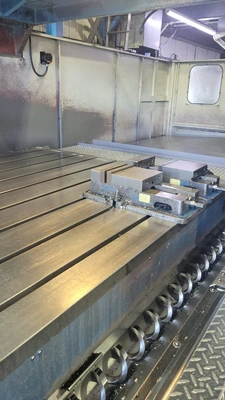

Table Size (Length): 122.00 in. (3,100 mm)
Table Size (Width): 66.93 in. (1,700 mm)
Max Workpiece Weight: 22,000 lbs (11,000 kg)

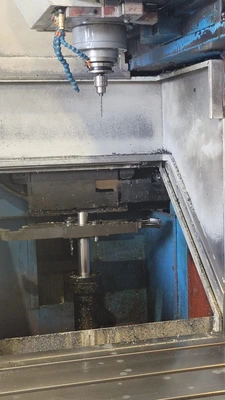

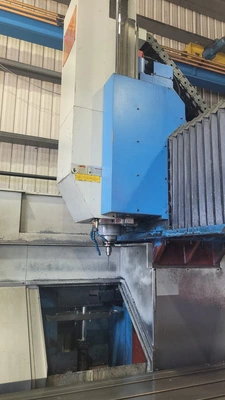

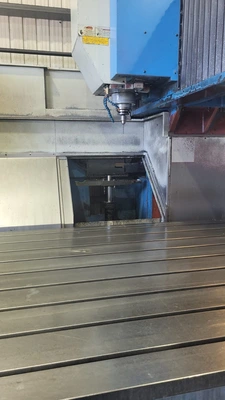

Spindle and Power
Spindle Power: 24.8 hp (18.5 kW) continuous / 29.5 hp (22 kW) 30-minute rating.
Spindle Speed: 8,000 RPM
Spindle Taper: 50

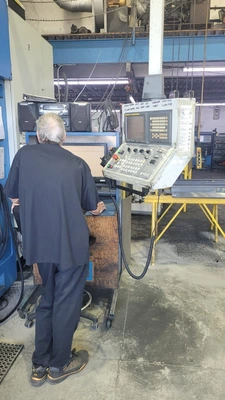

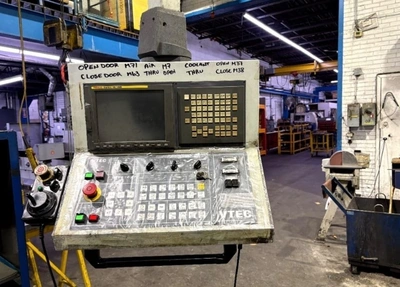

Fanuc 18iMB CNC
Video Available
40 Position Tool Changer
