Brother Speedio W1000Xd1 Vertical Machining Center (2021)

Brother Speedio W1000Xd1 Vertical Machining Center (2021)

Have one to sell?
773.866.9600
sales@assetexchangeinc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Machining Centers, Vertical
Manufacturer:
BROTHER
Model:
Speedio W1000Xd1
Year:
2021
Stock #:
95320
Status:
For Sale

Description

Brother Speedio W1000Xd1 Vertical Machining Center (2021), 16000

size40" x 20" x 15"40" x 20" x 15"
X Travel39.37"1,000 mm
Y Travel19.7"500.38 mm
Z Travel11.8"299.72 mm
Power10 hp7.5 kW
RPM16,000 RPM16,000 RPM
# ATC2121
Taper3030
Table-W19.7"500.38 mm
Table-L43.4"1,102.4 mm

Brother Speedio W1000Xd1 Vertical Machining Center (2021)

X-Axis
39.37"
Y-Axis
19.7"
Z-Axis
11.8"
Table Size
43.4" x 19.7"
Spindle Speed
16,000 RPM
Spindle Taper
BT 30 Big Plus
Spindle Motor
10 HP
Tools
21
Rapid Traverse Rate (X/Y/Z)
1969/1969/2205 IPM
Max Tool Length
9.8"
Max Tool Weight
8.8 lbs.
Machine Dimensions (L x W x H)
94.9" x 87.9" x 103.7"
Machine Weight
7385 lbs.
Cutting Feed Rate
.04 - 1181 IPM
Spindle Nose to Table Top
5.9" - 20.9"
Tool Change Time (T - T / C - C)
0.6 / 1.3 Seconds
Utilization

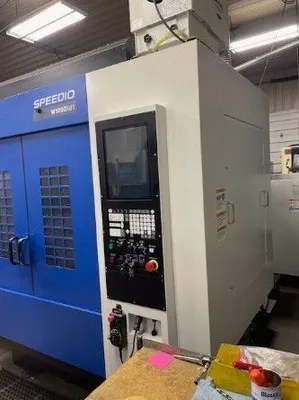

Brother CNC-D00 CNC Control
High Pressure Through Spindle Coolant (1000 PSI)
Metrol TM26-D-04-04S Tool Presetter
Renishaw OMP-40 Probe
4th-Axis Interface
Mist Collector
Remote Jog Handle
3-Stage Indicator Light
LNS Turbo MH250 Chip Conveyor
High Capacity Coolant Tank
Manufacture Date October 2021

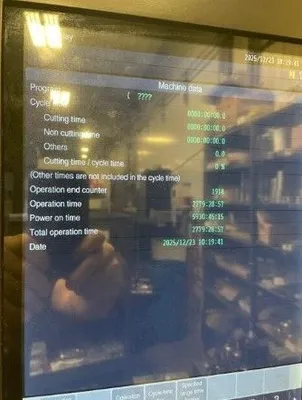

2779 Operation Time
5930 Power On Time
2779 Total Operation Time
