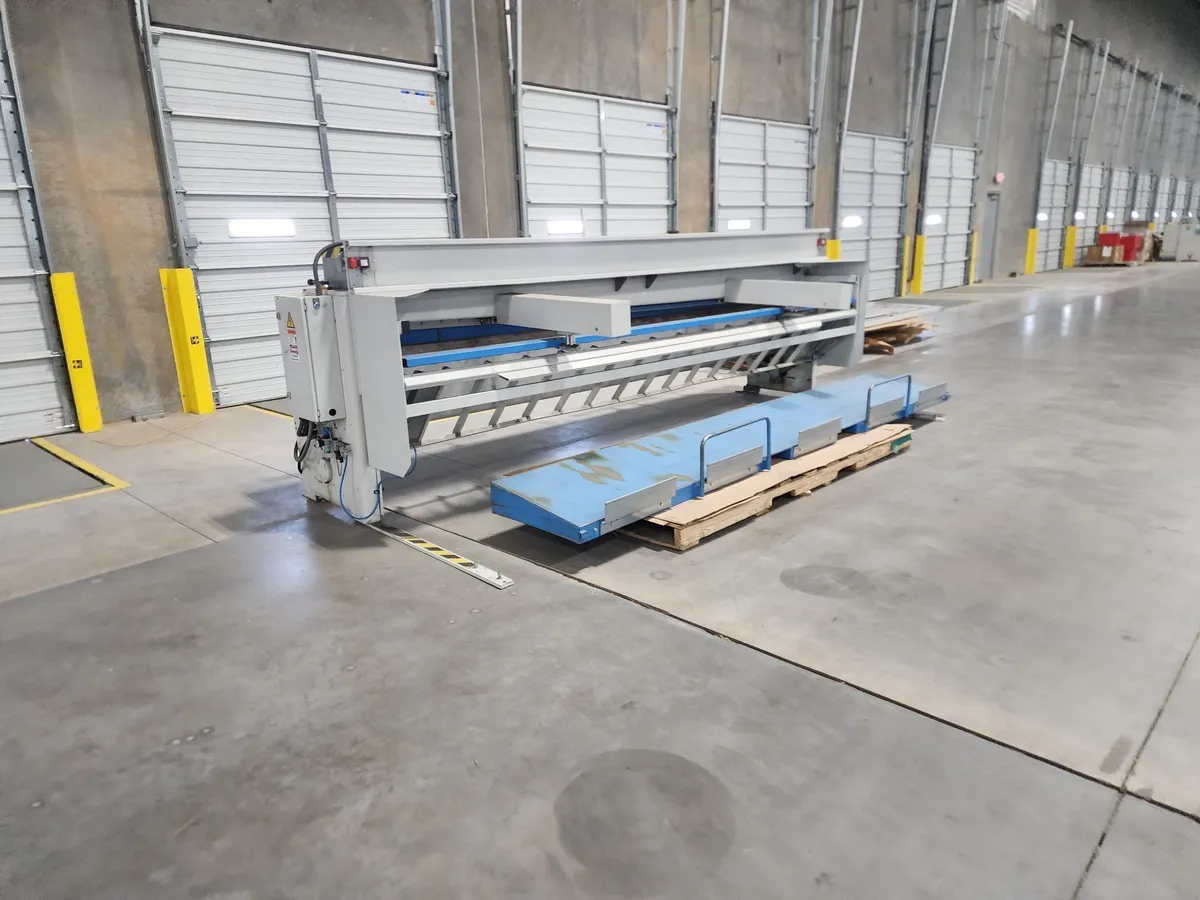

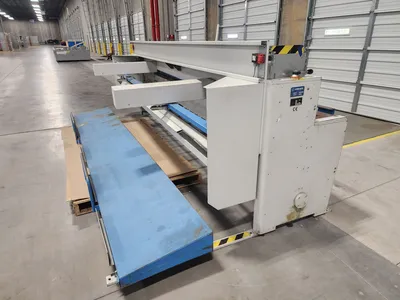

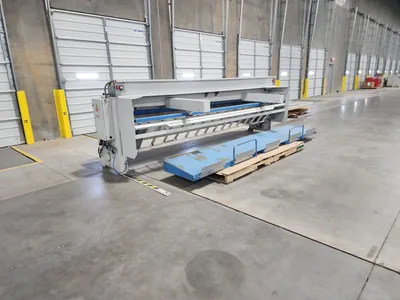

Schechtl MTB 400 BV 12 Gauge X 13' Hydraulic Shear (2016)
Have one to sell?
ConditionUsed
1 available
Schechtl MTB 400 BV 12 Gauge X 13' Hydraulic Shear, 12 Gauge, 159" Working Length
Schechtl Model MTB 400.BV 12 gauge X 13' Hydraulic Shear
Steel (400 N/mm\({}^{2}\)): 2.50 mm (approx. 12 gauge)
Aluminum (250 N/mm\({}^{2}\)): 4.00 mm (approx. 8 gauge)
Stainless Steel: 1.50 mm (approx. 16 gauge) [1, 2]
Working Length (Cutting Length): 4040 mm (approx. 159 inches / 13 feet)
Backgauge Range: 0 to 750 mm (0 to 30 inches)
Overall Length: 4858 mm (approx. 191 inches)
Overall Depth: 2592 mm (approx. 102 inches)
Overall Height: 1430 mm (approx. 56 inches)
Machine Weight: ~3,450 kg (approx. 7,605 lbs) [1]
