Fadal VMC4525HT Vertical Machining Center (2005)
Have one to sell?
ConditionUsed
1 available

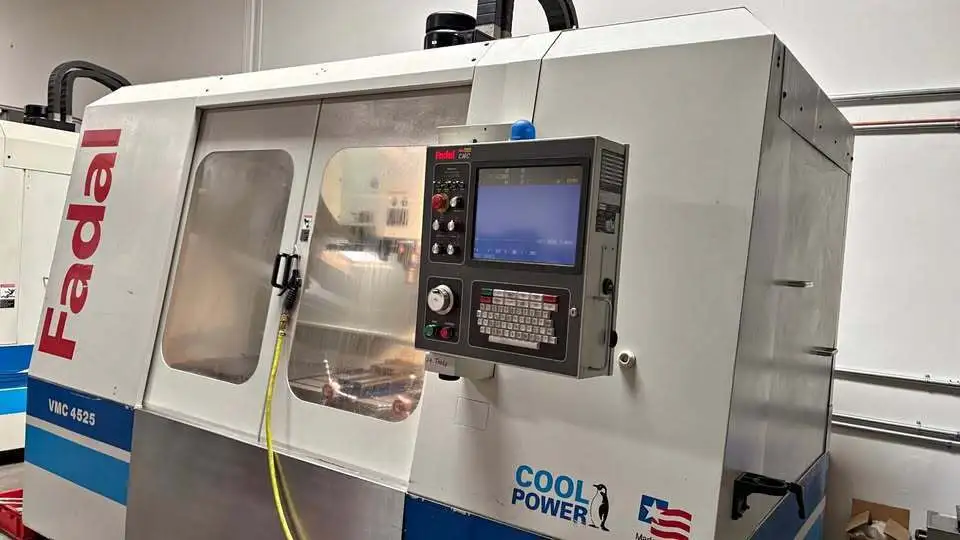

Fadal VMC4525HT Vertical Machining Center (2005), Side mount Tool Changer
X-Axis Travel: 45″
Y-Axis Travel: 25″
Z-Axis Travel: 24″
Cutting Feed Rate: 0.01 – 400 ipm
Rapid Feed Rate: 900 IPM (X/Y); 700 IPM (Z)
Axis Drive Motor (X/Y/Z): AC 3,800 lbs peak thrust
Table Size: 53.5″ x 25.0″
Floor to Table: 31″
Table Capacity: 4,250 lbs
Spindle Nose to Table: 4″ – 24″
Spindle Center to Column Ways: 27.87″
Main Motor: 30 HP
Spindle Speed: 10 – 10,000 RPM
Spindle Taper: No. 40
Auto Tool Changer: 24
Electrics: 240 V, 3 Ph, 50/60 Hz
Full Load: 50 Amp
- 24 tool dual arm changer
- Extended Z
- 10k RPM spindle
- Cool Power
- Calmotion USB port
- Tool fixture
- Pre-wired for 4th axis
- Rigid tap
- 3 Phase 230V
