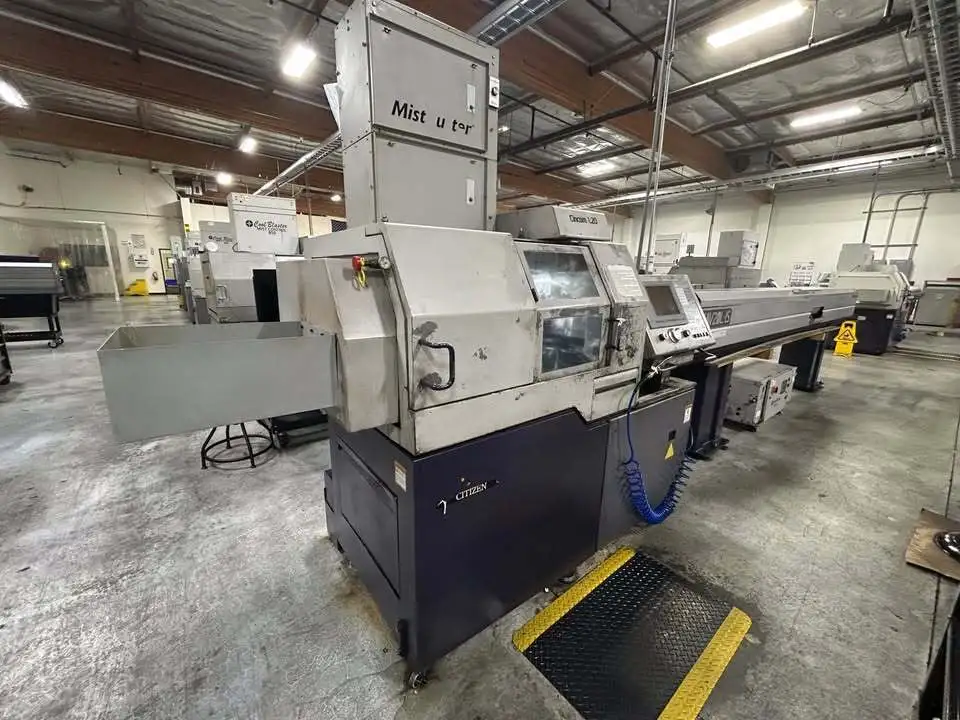

CITIZEN Model L-20 VII Swiss Style CNC (1999)

Citizen Model L-20 VII CNC Swiss Style Lathe
Maximum Machining Diameter: .78"
Maximum Machining Length: 7.8"
Maximum front drilling diameter: .39"
Max. front tapping diameter (with tap and die) M8
Spindle through-hole diameter: .94"
Main spindle speed: 10,000 RPM
Rotary tool spindle speed: 8,000 RPM (max.)
Rotary tool motor: 1 HP
Max. chuck diameter of the back spindle: .79"
Number of tools to be mounted: 16 Tools
Turning tools on the gang tool post: 5
Rotary tools on the gang tool post: 5
Equipped with"

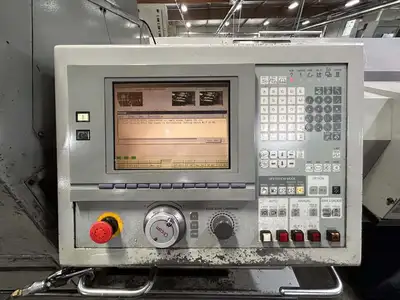

Windows Based CNC Control

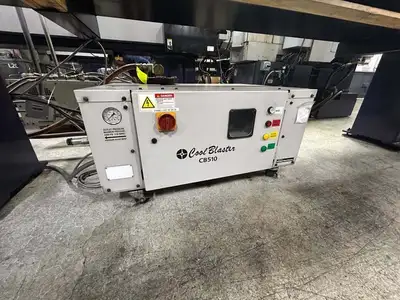

NC0815 Cool Blaster High Pressure System
Full C Axis Indexing
Mist Buster 500

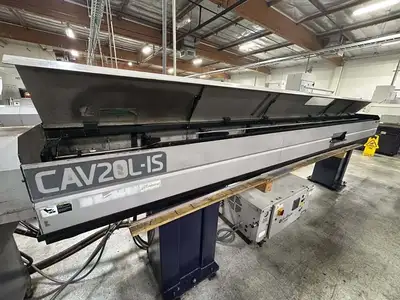

LNS Hydro Bar Barfeed
M Codes for Hob Attachment ( Hob Attachment not included )
