| size | 6" Chuck | 6" Chuck |
| Swing | 21.6" | 548.64 mm |
| Machining Length | 12.1" | 307.34 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 11" | 279.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC | CNC |

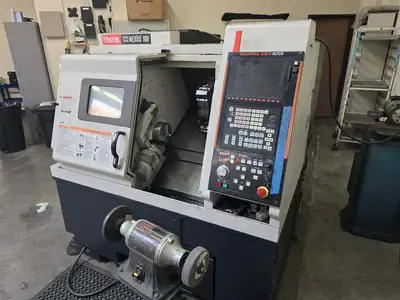

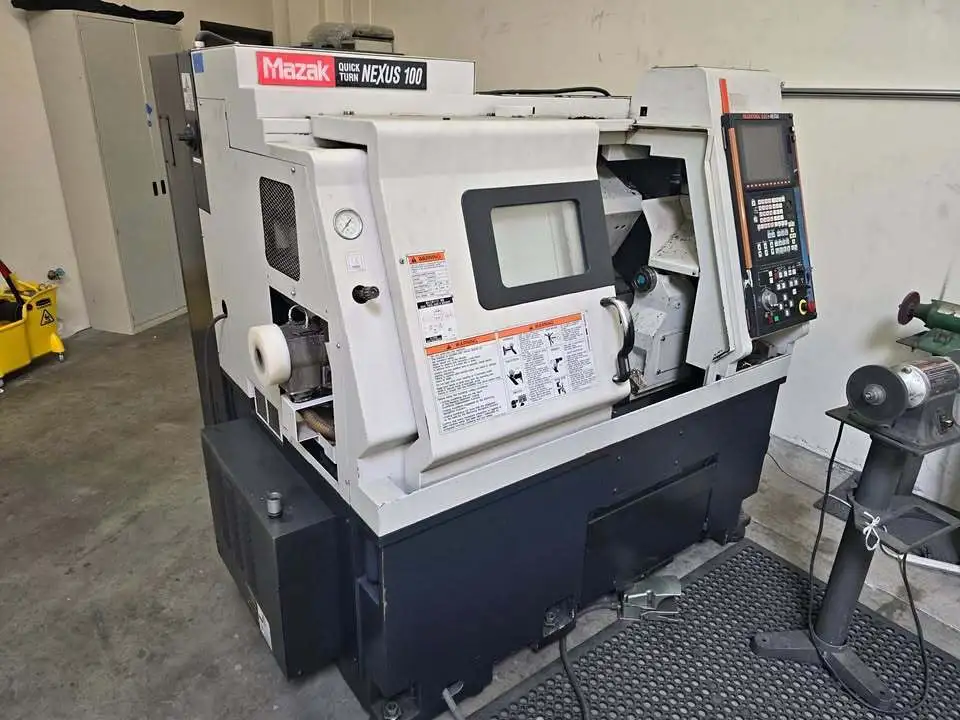

Mazak Quick Turn Nexus 100 QTN-100 CNC Lathe
Maximum Swing………………………….21.6″
Swing Over Cross Slide………………… 11.0″
Standard Machining Diameter……………..7.37″
Maximum Machining Diameter…………….. 11.0″
Maximum Machining Length………………. 12.1″
Spindle Motor…………………… 15 / 10 (30 MIN/CONT.)
Spindle Bore…………………………. 2.4″
Standard Bar Capacity…………………. 1-5/8″
Spindle Speed………………………… 6,000 RPM
Number of Spindle Speed Ranges…………. 1
Spindle Nose…………………………. A2-5
Turret Type………………………….. DRUM TURRET
Number of Tools………………………. 12
Mazatrol 640T Nexus Control
Automatic Tool Eye
12 Position Drum Turret (Bolt on Type)
6” Chuck
Programmable Tailstock
Relocation Device
