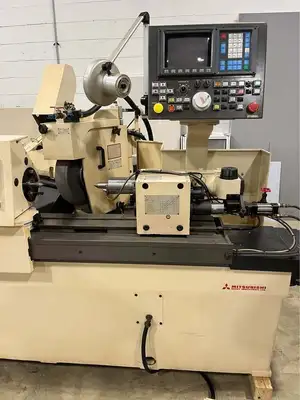

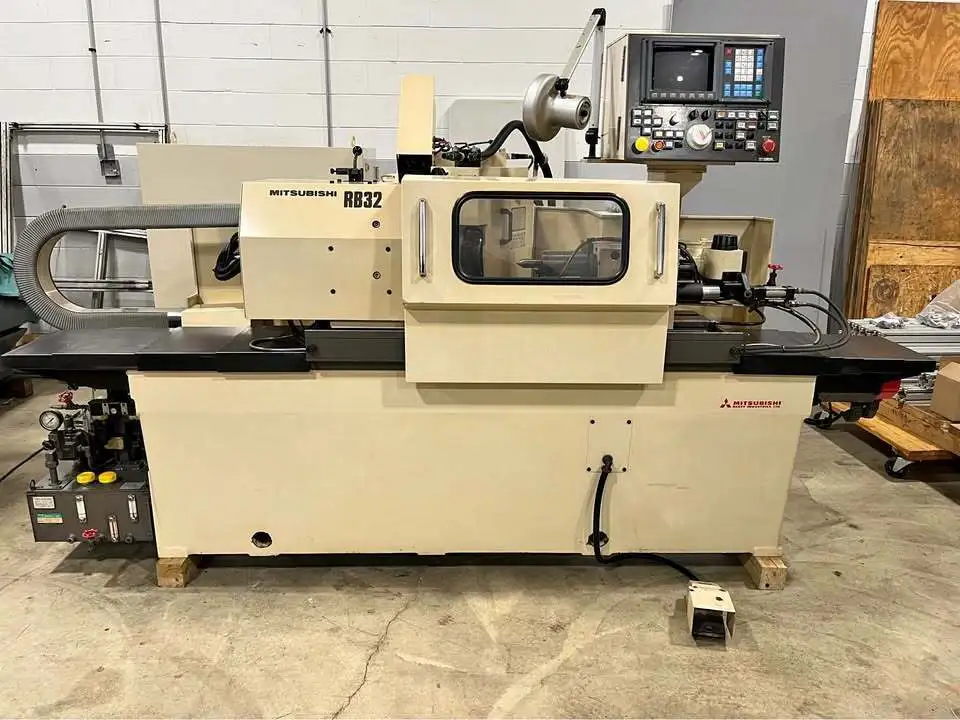

Mitsubishi RB32 OD CNC Cylindrical Grinder

Mitsubishi RB32 OD CNC Cylindrical Grinder

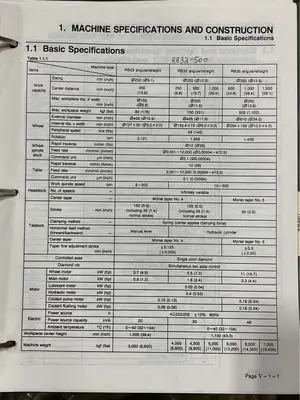

Swing over table: 12.6″ (320 mm)
Maximum workpiece diameter: 12.6″ (320 mm)
Nominal center distance: 19.7″ (500 mm)
Maximum table stroke: 29.5″ (750 mm)
Tailstock stroke: 6.5″ (165 mm)
Taper in tailstock: No. 4 MT

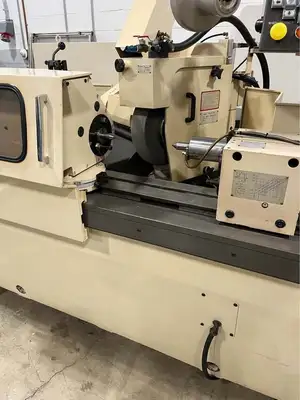

Grinding Wheelhead:
Standard wheel diameter: 17.9″ (455 mm)
Wheel width: 3″ (76 mm)
Wheel hole diameter: 6″ (152 mm)
Wheel peripheral speed: 148 ft/s (45 m/min)
Wheel rotation speed: 1,888 RPM
Wheel spindle motor: 7.3 HP
Wheel spindle rapid traverse: 39 ft/s (11.9 m/min)
Wheel spindle feed rate: 0.00004 – 472.5 IPM

Headstock:
Spindle speed: 10 – 500 RPM (infinite variable)
Center taper: No. 4 MT
Equipped with: Dresser

Table:
Rapid traverse: 39 FPM
Feed rate: 0.00004 – 472 IPM

Weight capacity between centers: ~330 lbs (150 kg)
Approximate machine weight: ~9,900 lbs
