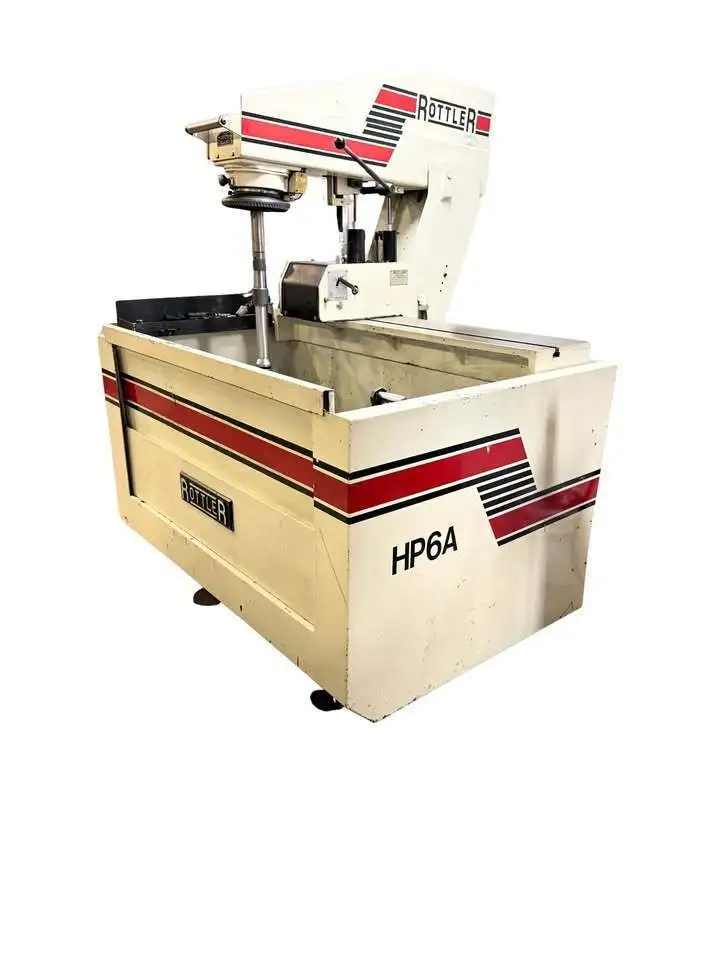

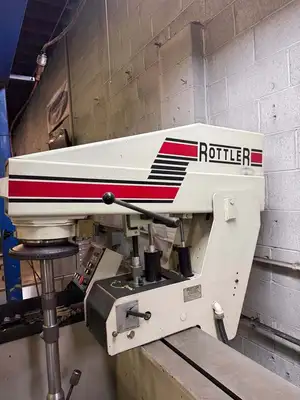

The model HP6A Honing Machine is a wet, complete cylinder block and general purpose-honing
machine. A totally enclosed AC motor driving a belt and gear reduction drive mounted within a rocker
arm arrangement supplies Hone rotating power. The honing head is driven through a universal joint.
Honing Range: 2.25” – 9.6” (57.1mm – 244mm)
Max Stroke Length: 13” (330mm)
Max Block Length: Up to 53” (1.35m)
Spindle Speed: 75 – 285 RPM (variable)
Spindle Motor: 2 HP
Dimensions: 76”H x 60”W x 60”D (1930x1524x1524mm), requiring 72” x 72” floor space
Weight: 2,300 lbs
Air Requirements: 8 cfm at 100 PSI
Power Requirements:
208 to 240 VAC
Single Phase
50 or 60 Hertz
20 amps
