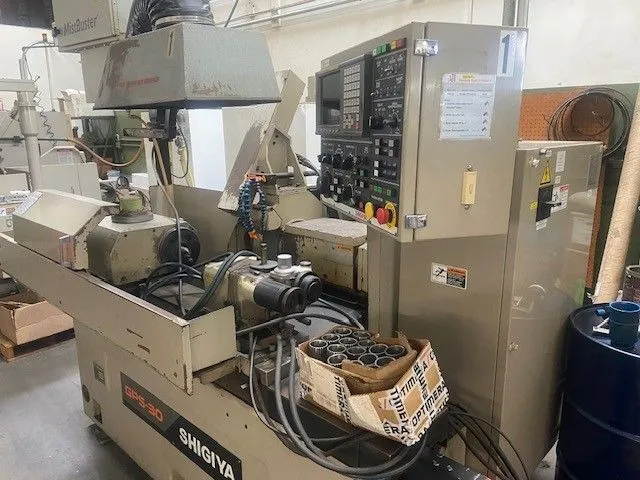

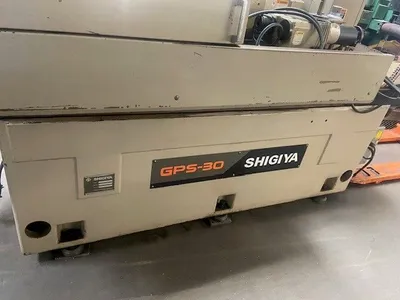

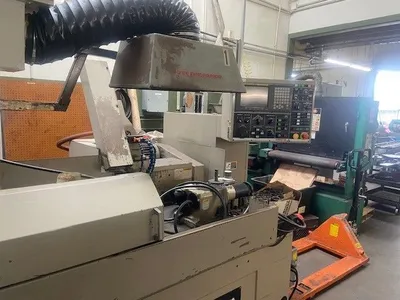

Shigiya GPS-30 CNC Cylindrical Grinder

Shigiya GPS-30 CNC Cylindrical Grinder

Max Swing Over Table: 11.81" / 300mm
Max Distance Between Centers: 23.6" / 600mm
Max Part Weight: 330 Lbs
Wheel Size: 16" x 2" x 6"
Max Wheel Speed: 2000 RPM
Grinding Wheel Speed: 1,545 RPM
Minimum Wheelhead Increment: 0.0001mm
Workhead Speeds: 15 to 600 RPM
Workhead Swivel Angle: Non-Swivel
Table Swivel: 0-9 Degrees CCW
Minimum Table Increment: 0.0001mm
Spindle Drive Motor: 5 HP / 3.7 kW
Manual Wheelhead Feed Distance: 9.65" (Including Rapid Traverse)
Wheelhead Rapid Traverse Distance: 1.57"
Wheelhead Rapid Traverse Speeds: 0-10,000mm/min / 0- 393.7 IPM (4-Stage)
Minimum Wheelhead Programmed Travel: .0001"
Auto Infeed Max Movement Amount: 9.999 mm
Plunge Cut Auto Infeed Speed: .01 - 9.99 mm/min
Traverse Cut Auto Infeed Increments: .001 - .099 mm
Traverse Cut Sparkout Adjustment Range: 0-99 Pass
Infeed Motor: 1.2 HP / .9 kW AC Servo Motor
Workhead Swivel Angle: 0 Degrees
Workhead Speeds: 15-600 RPM
Workhead Center Taper: #4MT
Workhead Motor: 2 HP / 1.5 kW AC Servo Motor
Longitudinal Table Travel: 27.95" Max Stroke
Table Swivel Taper Angle: Max 9 Degrees
Longitudinal Table Feed Rate: 0 - 7,000 mm/mn / 0 - 275.59 IPM
Longitudinal Table Jog Feed Speed: 0 - 1,260 mm /min / 0 - 49.6 IPM (16 Stage)
Minimum Longitunidal Table Travel Increment: .0001 mm/ pulse
Longitudinal Table Drive Motor: .9 kW / 1.2 HP AC Servo Motor
Tailstock Spindle Stroke: 1.18"
Tailstock Center Taper: #4MT

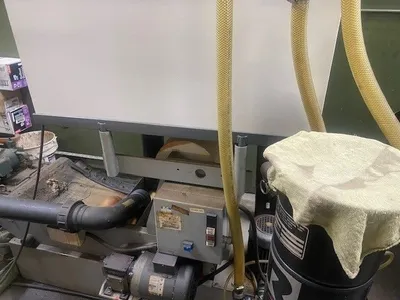

Coolant Tank Capacity: 32 Gallons
