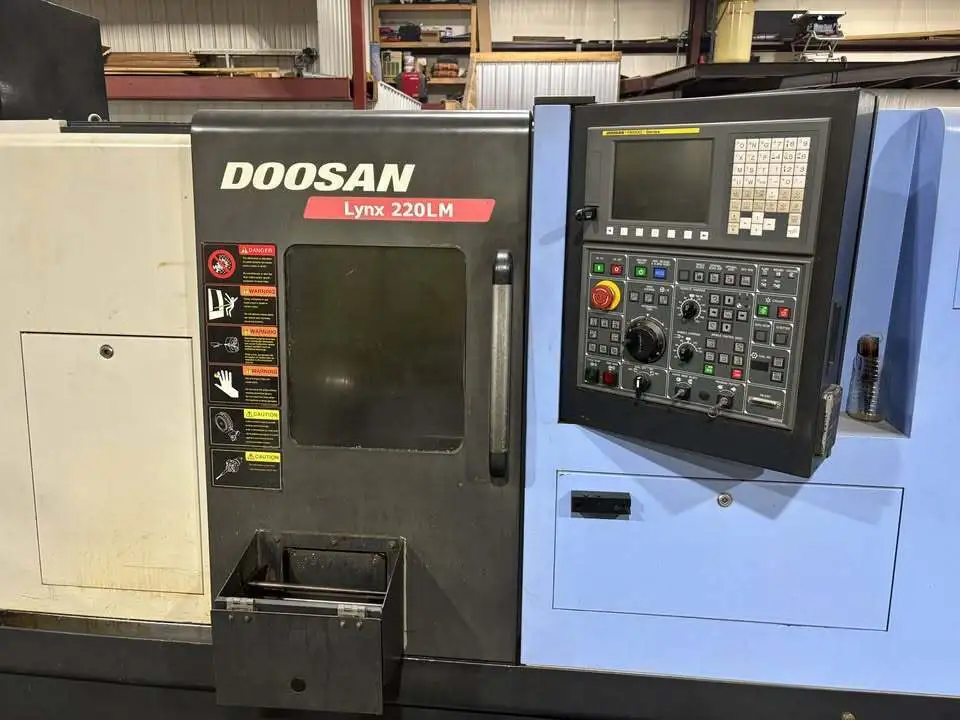

Doosan Lynx 220LM Live Tool CNC Lathe (2012)
Have one to sell?
ConditionUsed
1 available
Doosan Lynx 220LM Live Tool CNC Lathe (2012)
Doosan Lynx 220LM Live Tool CNC Lathe (2012)
Swing Over Bed: 20.1" (510 mm)
Swing Over Carriage: 11.4" (290 mm)
X-Axis Travel: 6.9" (175 mm)
Z-Axis Travel: 13.0" – 21.6" (dependent on bed length)
C-Axis Indexing: 0.001° increments
Spindle & Tooling
Spindle Bore: 2.4" (61 mm)
Spindle Nose: A2-5 or A2-6
Live Tool Motor: 5.0 HP (3.7 kW)
Rapid Traverse (X/Z): 1,181 / 1,417 IPM
Physical Information
Machine Weight: Approximately 7,190 lbs (3,261 kg)
Floor Space: ~101" x 64" (approximate layout)
Fanuc I Series CNC
Live Tool
Tool Presetter
Collet Chuck
Tailstock

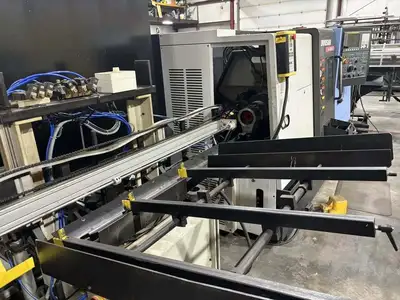

Barfeed
