RAS Turbobend 61.31 CNC Folding Machine
Have one to sell?
ConditionUsed
1 available

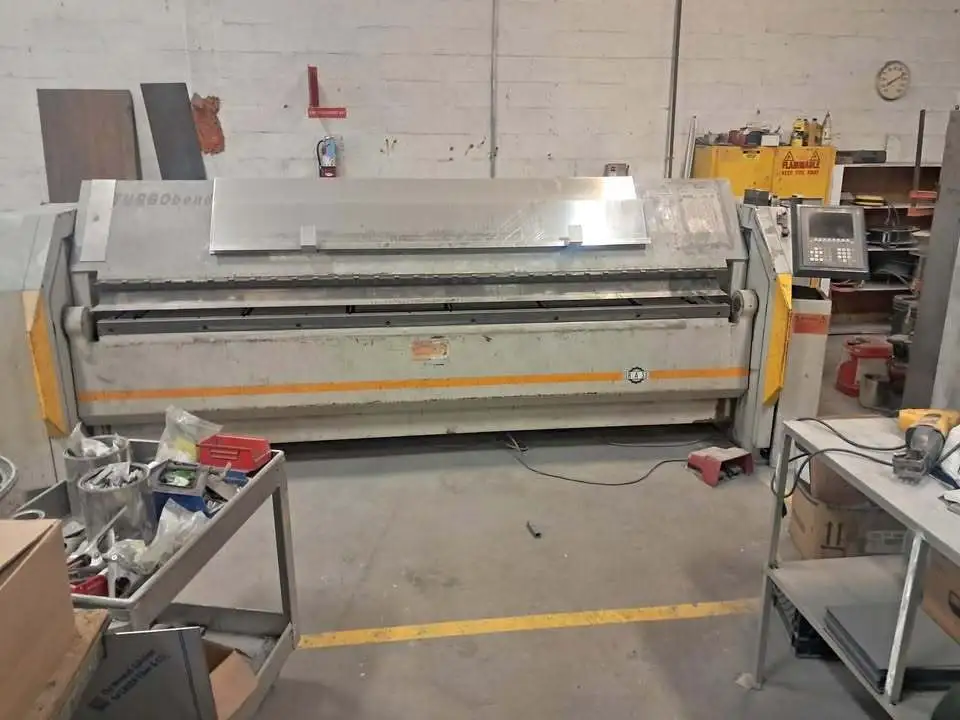

RAS Turbobend 61.31 CNC Folding Machine
RAS Turbobend 61.31 120" CNC Folding Machine
Max working length: 120" (3050 mm)
Max bending capacity: 16 ga (1.5 mm) mild steel
Maximum Sheet Thickness 16 ga/1.5mm Automatic CNC folding beam adjustment .05”-.244”
Maximum Length 124”/3150mm Motor Drive Power Upper Beam 1 hp/.75 kw
Backgauge Depth 0.236” - 39.4” / 6-1000mm Motor Drive Power Folding Beam 1.5 hp/1.1 kw
Machine Length 170”/4320mm Down stroke Speed 2”/sec 6mm/sec
Machine Width 55.1”/1400mm Maximum folding beam speed 80º/sec.
Machine Height 54.33”/1380mm Maximum backgauge speed 12”/sec.
Working Height 33.5”/850mm Backgauge Accuracy ± .004”/.15mm
Maximum Upper Beam Upstroke 0 - 4.73”/ 0- 120mm *Standard Electrical Power 230/3/60
Machine Weight 5,500 lbs. Current Usage Max. 20 amps
For sale is a RAS Turbobend precision CNC metal folding machine made by RAS Reinhardt Maschinenbau GmbH (Germany) — a world-class manufacturer of sheet-metal forming equipment.
This unit is designed for fast, accurate bending of aluminum, steel, and composite panels — perfect for sign fabrication, architectural cladding, and light industrial applications.
Computer-controlled folding with automatic back-gauge positioning
Easy-to-use touchscreen interface (depending on model)
Ideal for sheet widths up to 10 ft (3050 mm) and thicknesses up to 1.5 mm (16–18 ga, model-dependent)
Programmable bend sequences for repeat jobs
Hydraulic or servo-driven folding beam for precision results
Built-in safety sensors and robust German construction
Ideal for sign shops or sheet-metal fabricators needing consistent, repeatable bends.
CNC control: RAS EasyBend or similar interface
Power: 230 V, 3-phase
Made in Germany
