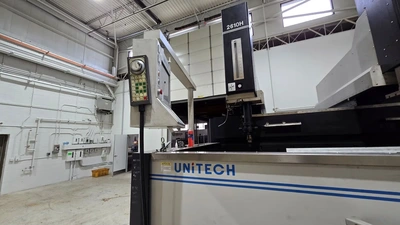

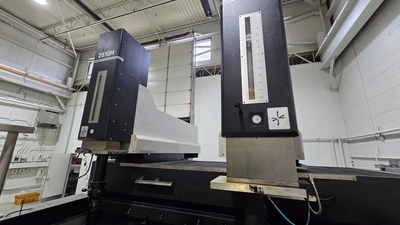

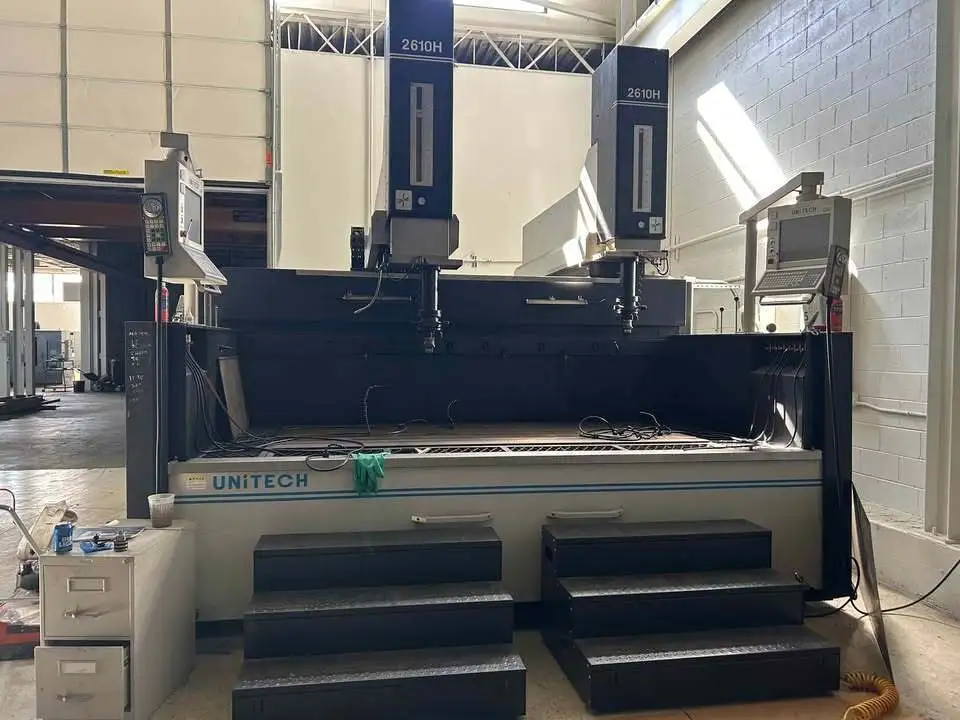

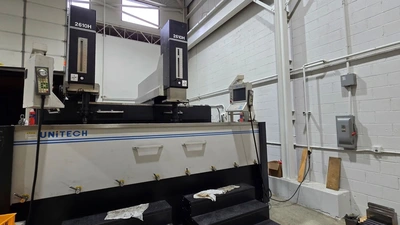

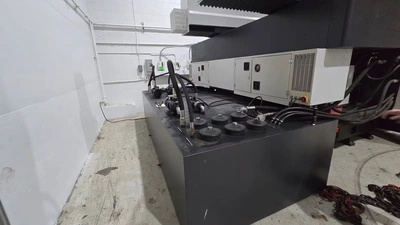

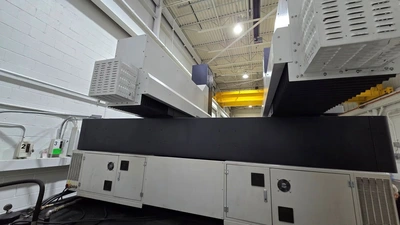

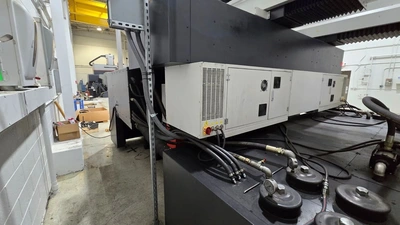

Unitech 2610H Sinker Type EDM Electrical Discharge Machine

Unitech 2610H Sinker Type EDM Electrical Discharge Machine

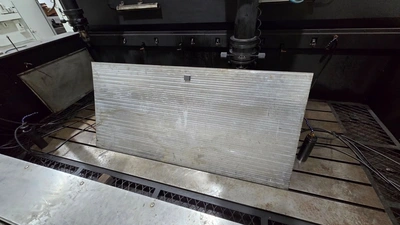

Work Table Dimension( L x W): 110.23" x 51.18" (2800mm x 1300mm)

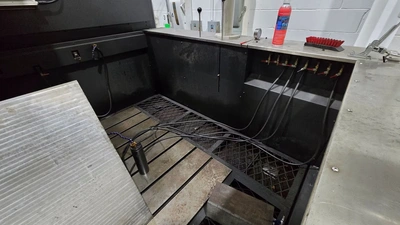

Work Tank Dimension ( L x W x H): 137.80" x 66.93" x 31.49"
(3500mm x 1700mm x 800mm)
X1 & X2 Stroke Length: 70.87" (1800mm)
Y-axis Stroke Length: 39.37" (1000mm)
Z-axis Stroke Length: 23.62" (600mm)
Distance between chuck & table: 53.15" (1350mm)
Capacity of Tank: 1,320 Gallons (5000 Liter)
Max. Electrode Weight: 881.85 lbs. (400 kg)
Max. Workpiece Weight: 33,069 lbs. (15000 kg)
Max. Height: 151.97" (3860mm)
Machine Net Weight: 39,683 lbs. (18000 kg)
