Kellenberger Kel-Varia UR 175/1000 CNC Universal Grinder
Have one to sell?
ConditionUsed
1 available

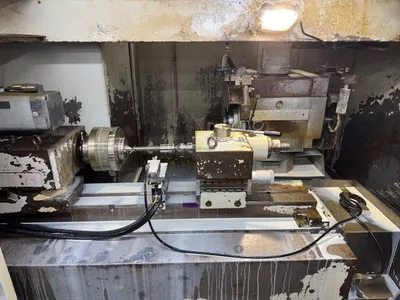

Kellenberger Kel-Varia UR 175/1000 CNC Universal Grinder, 2-OD wheels and 1-lD spindle 20,000-35,000 ID rpm, approx. 11 wheel hubs (no wheels) to go with machine
Kellenberger Kel-Varia UR 175/1000 CNC Universal Grinder
Swing Over Table: 14″
Distance Between Centers, Max.: 40″
Weight Capacity Between Centers: 330 Lbs
Grinding Wheel Diameter, Max.: 15″
Grinding Wheel Width, Max.: 2.5″
Workhead Spindle Nose: 5mt
Workhead Swivel Range: -30 To + 120-degrees
Tailstock Internal Taper: 4 Mt
Upper Table Swivel Range: 0 To 9-degrees
Lower Table Travel, Maximum (z-axis): 45″
Lower Table Speed, Maximum (z-axis): 49 Fpm
Cross Slide Travel, Maximum (x-axis): 12.59″
Cross Slide Speed, Maximum (x-axis): 25 Fpm
Peripheral Grinding Wheel Speed: 6300 Sfpm
Workhead Spindle Speeds, Range 5 To 500 Rpm
Grinding Wheelhead Spindle Motor: 6 Hp
Floor Space Required Approximate: 12′ X 7′
Weight Approximate: 11,025 Lbs
2-OD wheels and 1-lD spindle 20,000-35,000 ID rpm, approx. 11 wheel hubs
