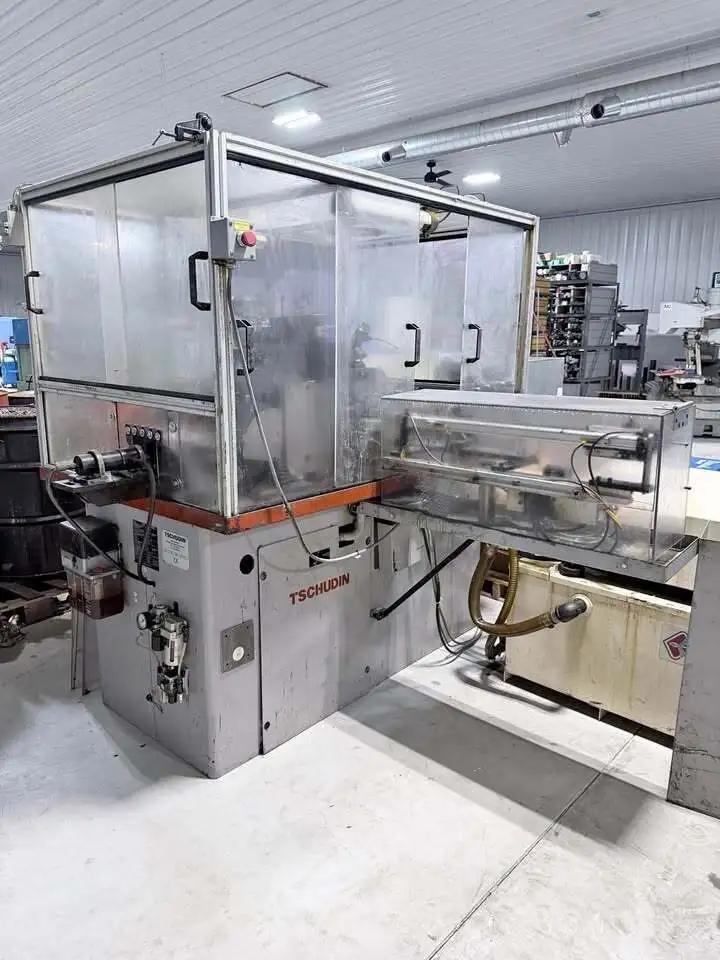

Tschudin TC 300 Centerless Grinder
Tschudin TC 300 Centerless Grinder
Grinding Range: Ø 0.5 – 25 mm (extendable to 30 mm)
Max Plunge Grinding Length: 125 mm (extendable to 140 mm)
Max Through-feed Length: 300 mm
Wheel Specifications
Grinding Wheel: Ø 300 x 125 mm (up to 140 mm width)
Regulating Wheel: Ø 225 x 125 mm (up to 140 mm width)
Peripheral Speed: 35 m/sec
Regulating Wheel Speed: 0 – 444 rpm (steplessly adjustable)
Power and Mechanical Details
Grinding Wheel Drive: Approx. 7.5 kW
Total Connected Load: Approx. 13 kW
Machine Weight: 2,500 kg
