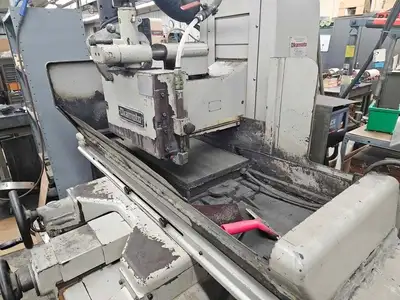

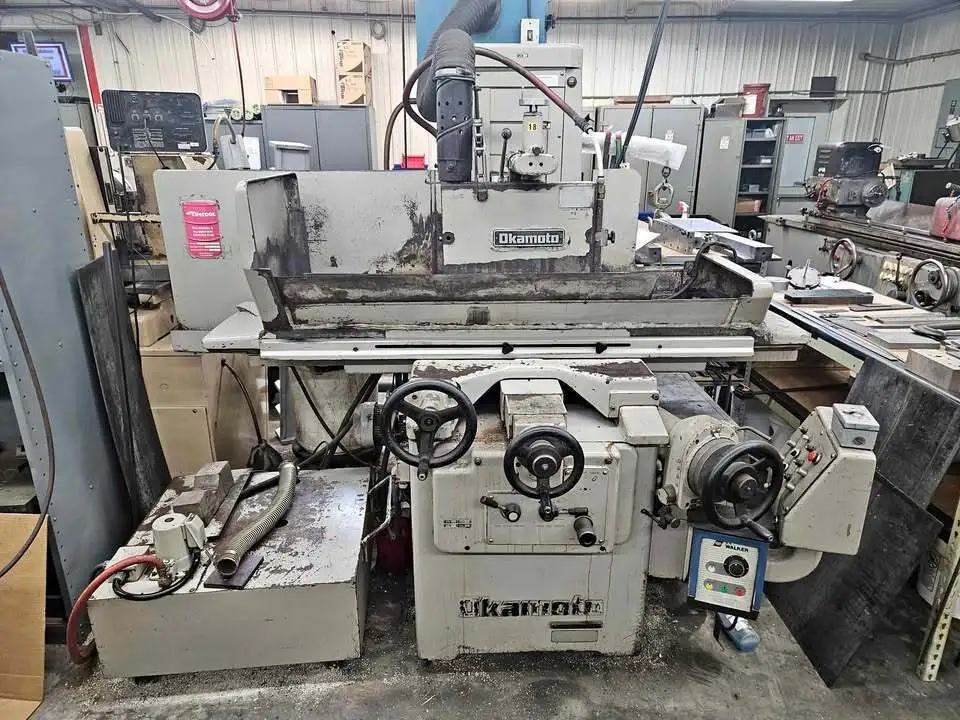

OKAMOTO ACC-124N Hydraulic Horizontal Surface Grinder

OKAMOTO ACC-124N 3-AXIS AUTOMATIC SURFACE GRINDER
Specifications:
CAPACITY
MAXIMUM GRINDING (W X L): 12" X 24"
MAXIMUM VERTICAL CLEARANCE (12" WHEEL): 13.7"
MAXIMUM WEIGHT OF WORK PIECE: 930 LBS
TABLE
TABLE SURFACE LENGTH: 23.75"
TABLE SURFACE WIDTH: 11.80"
MAXIMUM LONGITUDINAL TRAVEL: 29.50"
MAXIMUM CROSS TRAVEL: 13.4"
T-SLOT (NO. X WIDTH): 3 X .699"
FEEDS
LONGITUDINAL MOVEMENT OF TABLE
HYDRAULIC FEED: 1.0 - 100 FPM
HAND FEED PER REVOLUTION: 1.85"
CROSS MOVEMENT OF SADDLE
HYDRAULIC INTERMITTENT FEED: 0.02" - 0.8"
HYDRAULIC CONTINUOUS FEED: 4 - 40" FPM
HAND FEED PER REVOLUTION: 0.25"
GRADUATION OF HANDWHEEL: .001"
VERTICAL MOVEMENT OF WHEEL HEAD
AUTOMATIC FEED PER TABLE STROKE: 0.0002 - 0.0015"
AUTOMATIC FEED PER SADDLE REVERSAL: 0.0002 - 0.0015
HAND FEED PER REVOLUTION: 0.05"
HAND FINE FEED: 0.0001- 0.0015"
GRADUATION OF HANDWHEEL: .0001"
RAPID FEED (60 HZ): 19 IPM
GRINDING WHEEL
DIAMETER (60 HZ): 12"
WIDTH: 1.5"
BORE: 5"
SPEED (60 HZ): 1500 - 1800 RPM
MOTOR
GRINDING WHEEL SPINDLE: 5 HP / 4 P
HYDRAULIC PUMP: 2 HP / 4 P
VERTICAL RAPID FEEDER: 1/2 HP / 4 P
FLOOR SPACE: 103" (L) X 74" (W) X 73" (H)
WEIGHT (APPROX): 4,900 LBS
ELECTRICS: 460 VOLTS, 3 PH, 60 CYC
Equipped with:
INCREMENTAL DOWNFEED
