Drill diameter - 1/2”
Stroke - 24”

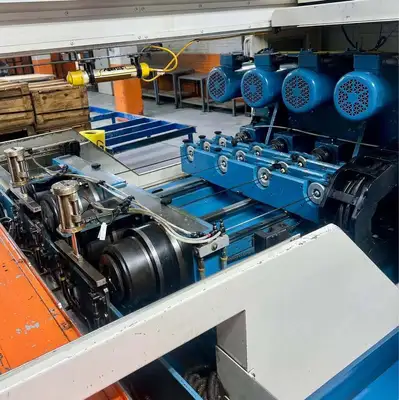

Number of spindles - 4
Spindle hp - 3 (x4)

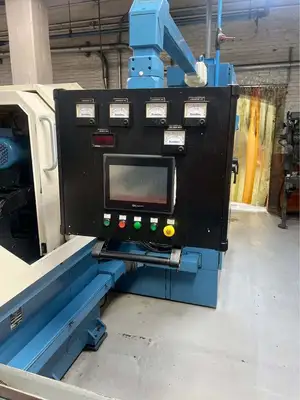

- Allen Bradley PLC-based control

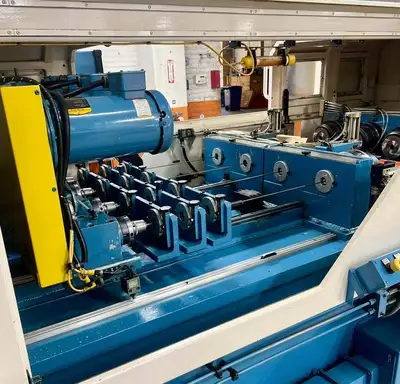

-Slide positioning via servo controlled ball-screw
- Auto load, clamp, unload B60 air collet chucks have a 2 5/16 max range, loader might limit that
- TechniDrill Model 30-350-30 coolant system (2) 20 GPM pumps with 5 and 10 micron filters
- LNS chip conveyor
- Dimplex Thermal Solutions Chiller
