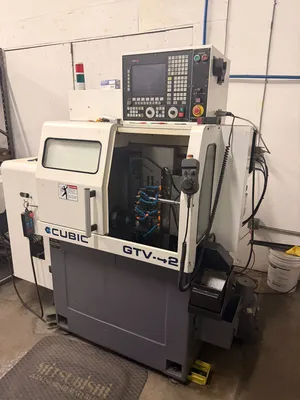

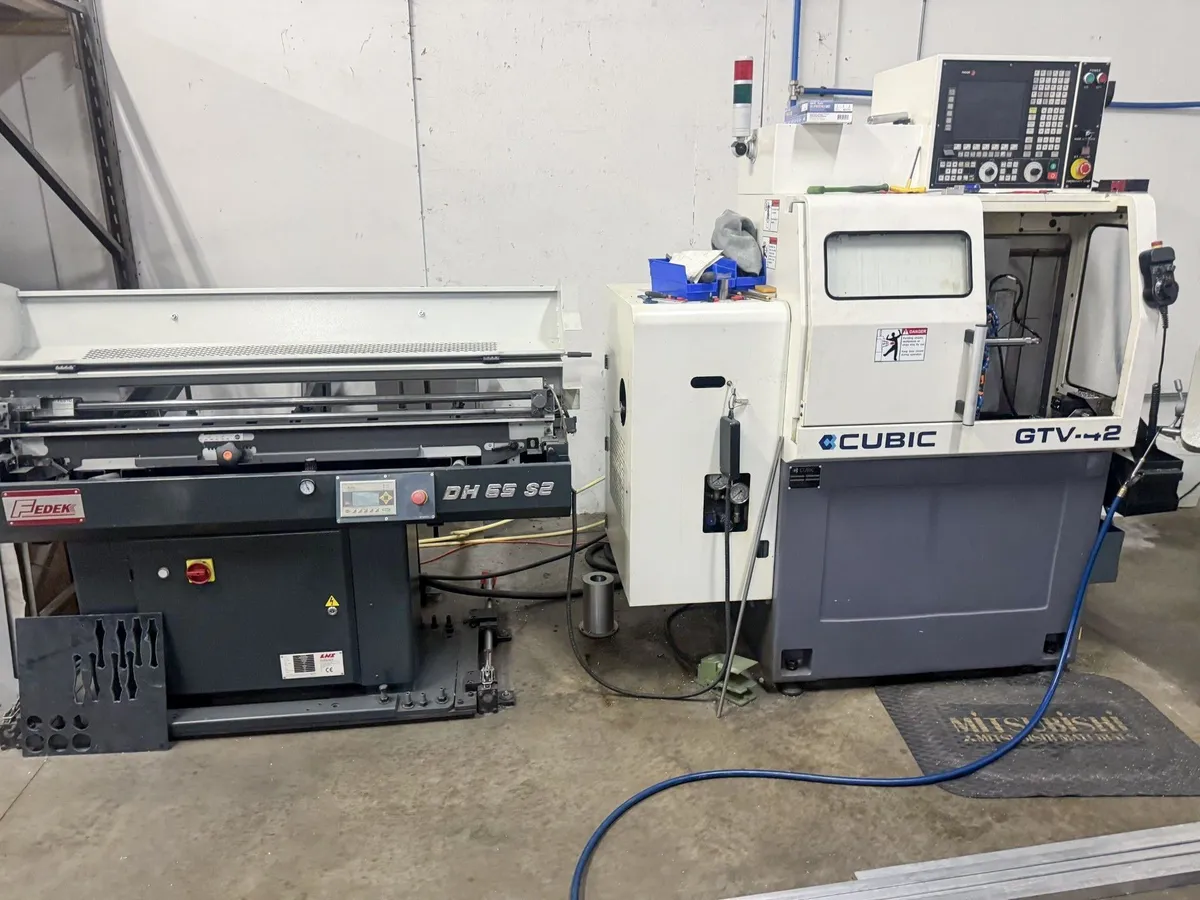

Cubic GTV-42 High Speed Gang Style CNC Lathe (2019)
Have one to sell?
ConditionUsed
1 available
Cubic GTV-42 High Speed Gang Style CNC Lathe New in 2019, With Fedek Barfeed, The Cubic GTV-42 is a high-precision vertical gang-tool CNC lathe designed for small-part production. Its vertical design and gang-tooling layout prioritize extreme accuracy (0.00005") and fast cycle times by eliminating turret indexing.
Cubic GTV-42 High Speed Gang Style CNC Lathe (2019)
Bar Capacity
42 mm (1.654 in)
X-Axis Travel
300 mm (11.8 in)
Z-Axis Travel
165 mm (7.0 in)
Simultaneous Axes
X-Z-C, X-C & Z-C Flat Plane Selection
Positional Repeatability
0.000050"
Accuracy
0.000050"
Spindle Runout
0.000050"
Spindle Speeds
60 – 6,000 RPM
Spindle Nose
A2-5
Motor Power
10 HP (Peak) / 7.3 HP (Cont.)
Rapid Traverse
945 ipm (24 m/min)
Machine Weight
3,750 lbs (1,704 kg)
Fagor 8055 CNC Control

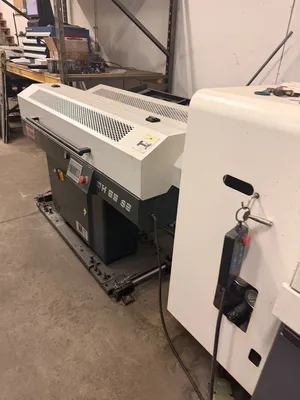

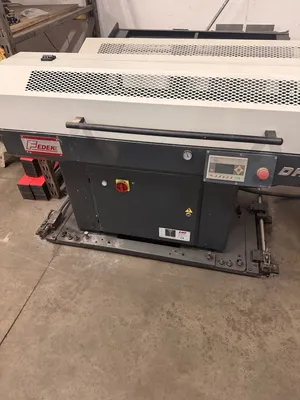

Fedek DH 650 S2 60" Bar Feed ( 5-65MM )
Collet Chuck
Manual Pulse Generator Remote Jog Handwheel
Parts Catcher
Live Tooling

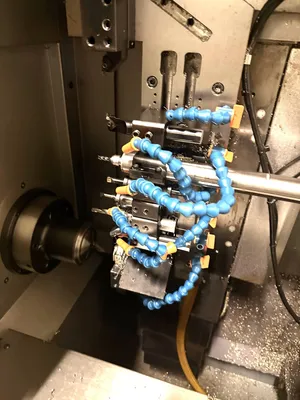

Gang tool holders
ER16 Collets
Short Loader
NSK Spindle and Ballscrews
