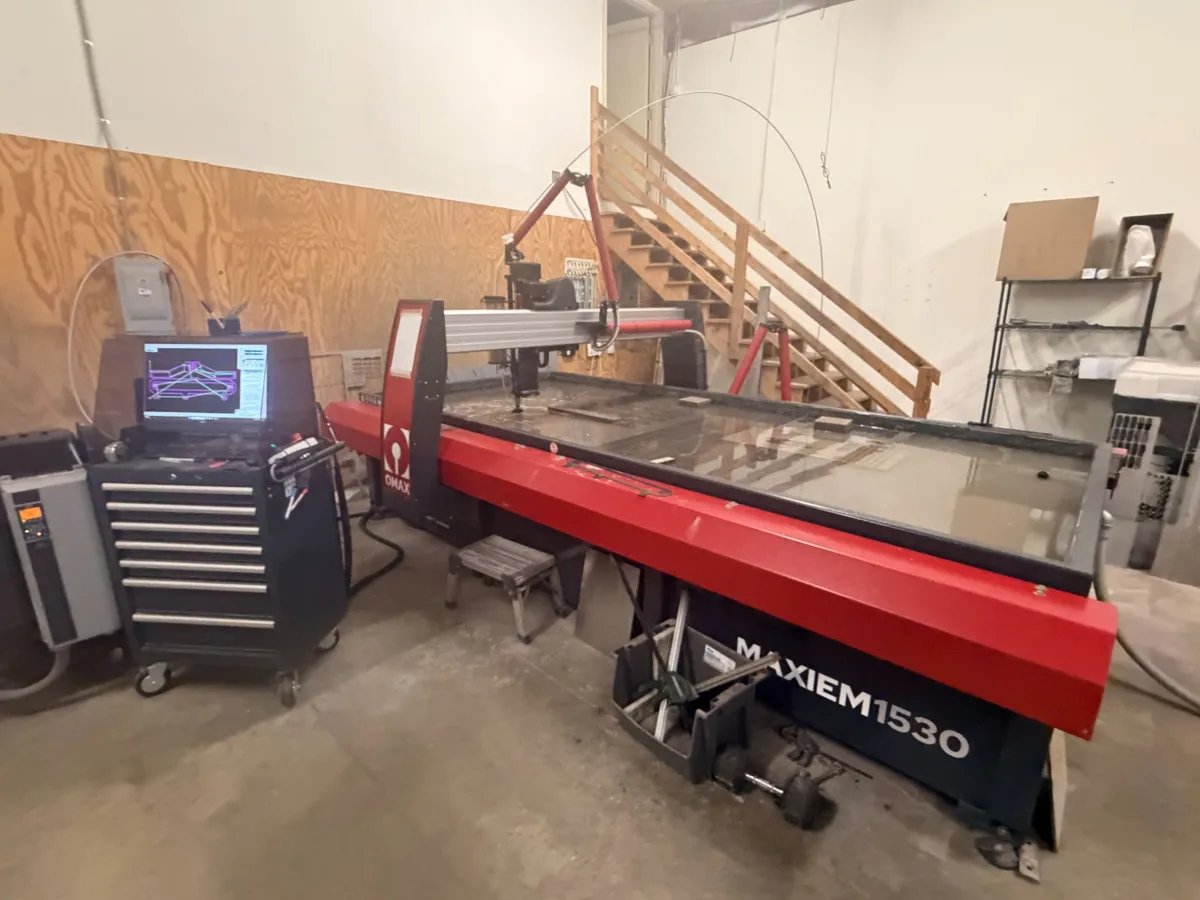

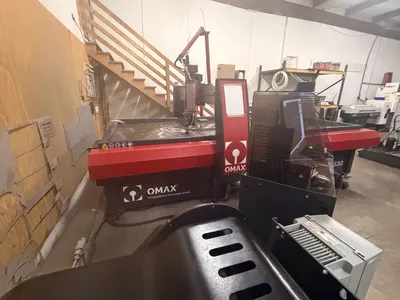

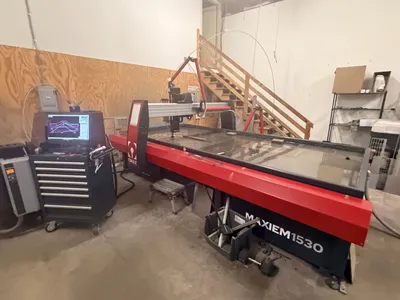

Omax Maxiem 1530 CNC Water Jet (2013)

Omax Maxiem 1530 CNC Water Jet (2013)

X-Y Cutting Travel: 10' 0" x 5' 2" (3,048 mm x 1,575 mm)
Table Size: 12' 2" x 5' 8" (3,708 mm x 1,727 mm)
Z-Axis Travel: 12" (305 mm) programmable motorized axis
Maximum Speed: 500 in/min (12,700 mm/min)
Linear Positional Accuracy: +- 0.003"
Repeatability: +- 0.001"
Power 30HP / 50000 PSI
Footprint: Approximately 14' 1" x 10' 10" (4,293 mm x 3,302 mm)
Empty Weight: 4,000 lbs (1,814 kg)
Operating Weight: 15,700 lbs (7,121 kg)
Electrical Requirements: 3-Phase,
Air Requirements: 75-120 psi (517-827 kPa) at 1.0 cfm minimum
