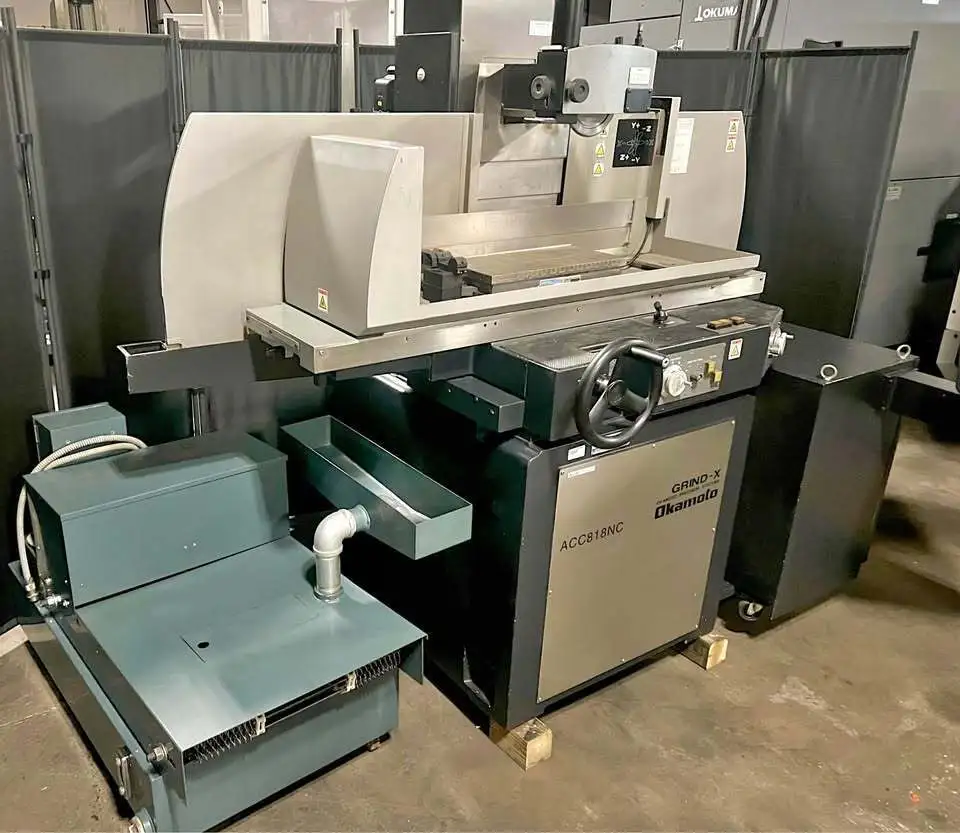

OKAMOTO ACC 8-18NC Hydraulic Horizontal Surface Grinder (2013)

Table Working Area: 20.86" x 7.87" (500 x 200 mm)
Table Movement: 20.86" x 9.05" (530 x 230 mm)
Max Vertical Clearance: 14.07" (357.5 mm)
Distance from Table to Spindle Center: 14.07" (357.5 mm)

Grinding Wheel:
Size: 8" x 0.23" – 1" x 1.25" (205 x 6–25 x 31.75 mm)
Speed: 3000–3600 rpm (50/60 Hz)
Wheel Spindle Motor: 2 HP

Feed & Motion:
Longitudinal Feed: 0.3 – 65 ft/min (0.1 – 20 mm/rev)
Cross Feed: 0.3 – 3.2 ft/min (0.1 – 20 mm/rev)
Downfeed: 0.00001" – 0.0015" (0.0001 – 0.03 mm)
Rapid Vertical Travel: 0 – 3.2 ft/min (0 – 2 m/min)
Manual Feed: 0.01 – 5.0 mm/rev, 0.0001" graduation
Automatic Feed: Continuous, 0.0001" increment

Motors & Power:
Grinding Wheel Spindle: 1.5 kW
Hydraulic Pump: 0.75 kW
Vertical Feed: 0.5 kW AC servo
Cross Feed: 0.5 kW AC servo
