STARRETT AVR300-Z-M3-2LED CMM Coordinate Measuring Machine (2019)
Have one to sell?
ConditionUsed
1 available

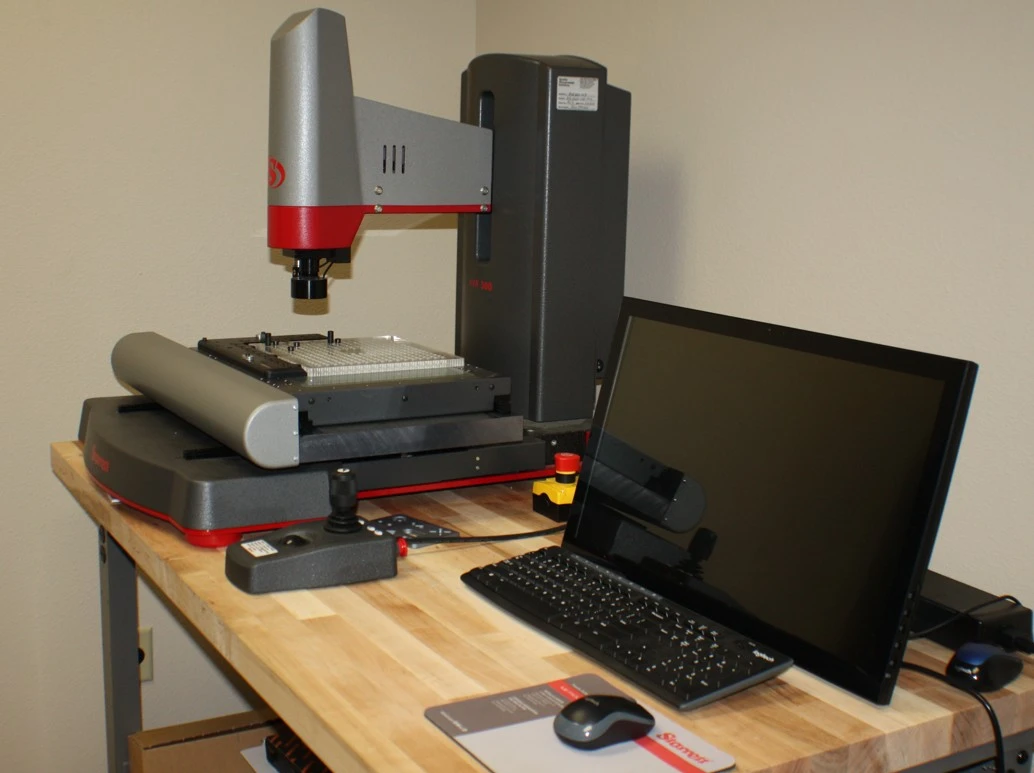

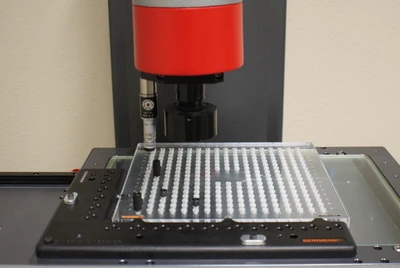

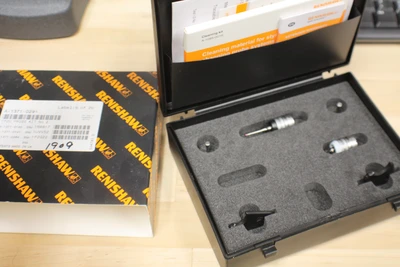

Starrett AVR-300 video-based CNC measurement system with MetLogix M3 software, video edge detection, LED illumination, and 12”x8”x8” travel. Includes Renishaw A-1371-0291 touch probe kit for internal measurements.
Specifications as follows:
Optics: 12:1 video zoom package, motorized and programmable
Lighting: 3-channel LED illumination
Video camera: Hi Resolution Color CCD Digital Camera, USB interface, 1/3” chip array
Display: 24” Touchscreen and PC
Metrology Controller/Software: MetLogix M3 CNC metrology software with 24” touchscreen and PC.

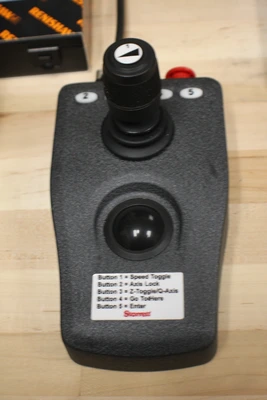

Drive Method: CNC XY&Z motorized drives with CNC/Joystick control
Travel: 300mm x 200mm x 200mm (12” x 8” x 8”)
Scales: Renishaw 0.1 micron resolution
Maximum workload: 18kg or 40 lbs, evenly distributed
