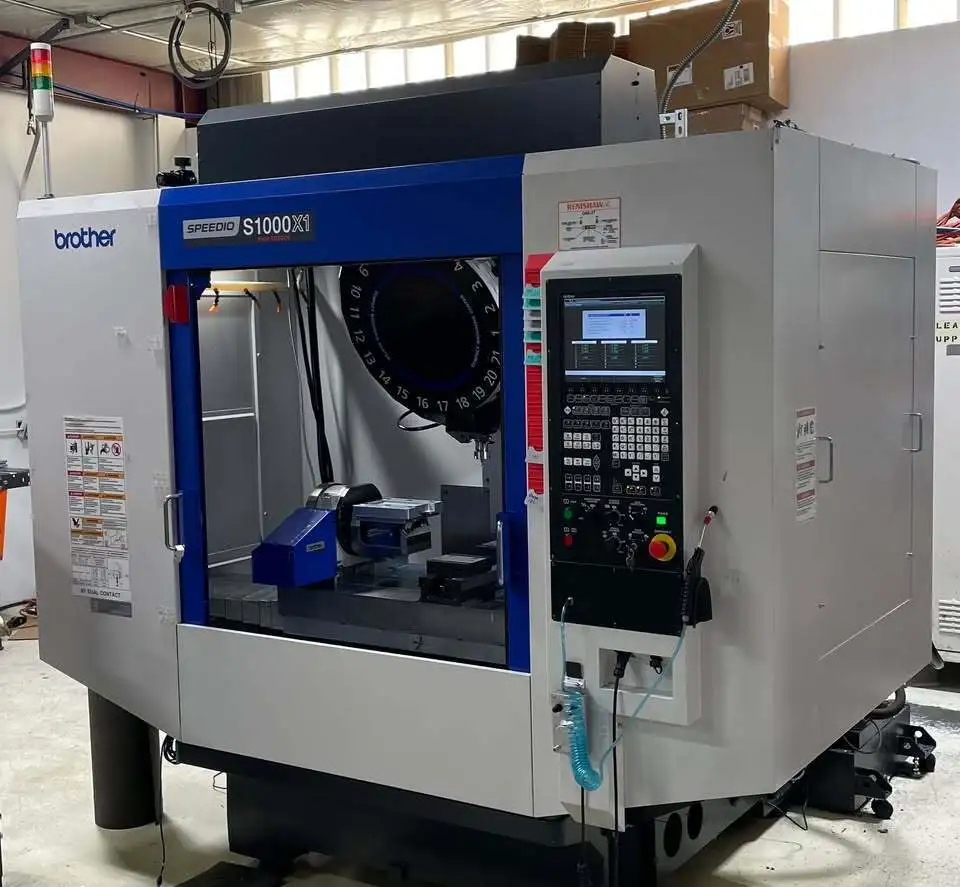

Brother Speedio S1000X1 Vertical Machining Center (2020)

Brother Speedio S1000X1 CNC Compact Machining Center

Travels
X axis 39.4”
Y axis 19.7”
Z axis 11.8”
Distance between table top and spindle nose end 7.1 ~ 18.9”
Table
Work area size 43.3” x 19.7”
Max.loading capacity (Uniform Load) 661 lbs
Spindle
Spindle speed (Optional) : 16 ~ 10,000
Tapered hole 7/24 tapered No.30
Feed rate
Rapid traverse rate (XYZ-area) 1,969 x 1,969 x 2,205 IPM
Cutting feed rate X,Y,Z: 0.04 ~ 1,181 IPM
ATC unit
Tool shank type MAS-BT30
Tool storage capacity 21
Max.tool length 9.8”
Max.tool diameter 4.3”
Max.tool weight 6.6 lbs
Tool change time Tool To Tool[sec.]: 0.8 / Chip To Chip[sec.]: 1.4
Electric motor
Main spindle motor (10 min/continuous) 16,000min-1 specifications(Optional) : 10/6.5 HP
