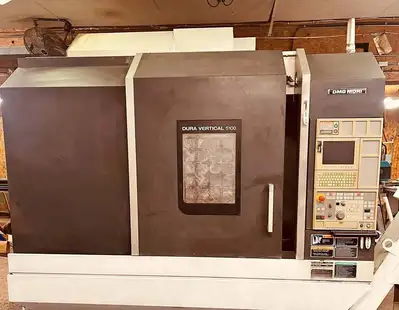

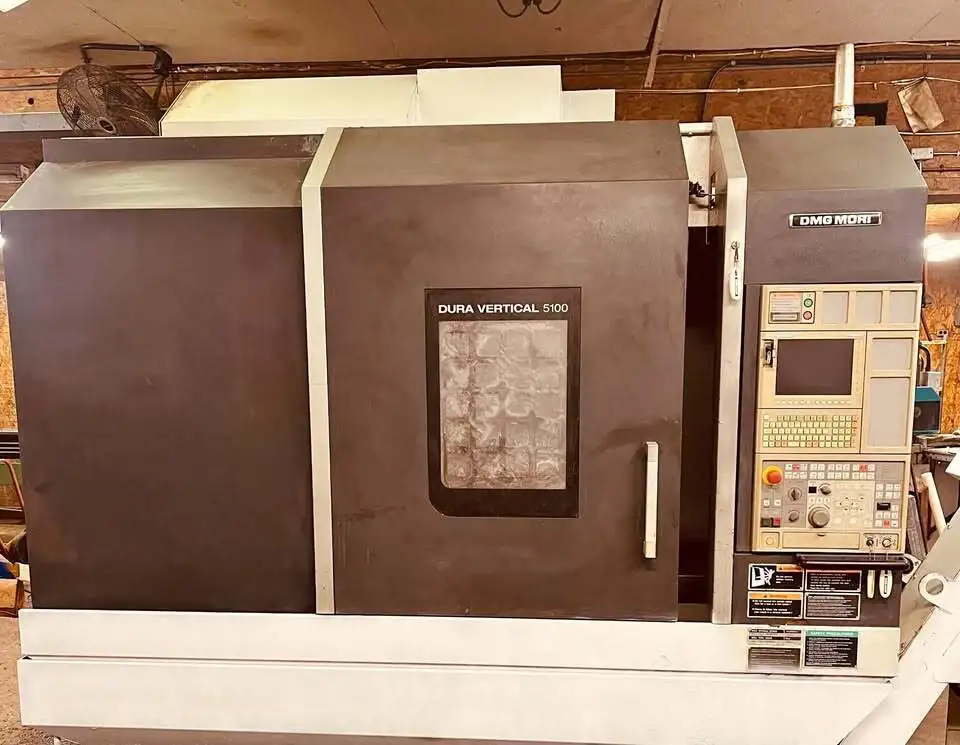

DMG MORI DURAVERTICAL 5100 Vertical Machining Center (2015)
Have one to sell?
ConditionUsed
1 available
DMG MORI DURAVERTICAL 5100 (2015)
DMG Mori Dura Vertical 5100 Machining Center
3 Axis, 30-Station Tool Changer,
12,000 RPM High Speed Spindle
CAT 40 Spindle
20 HP Motor,
X-41.03", Y-20.9", Z-20.1".
Table load 2200 lbs.

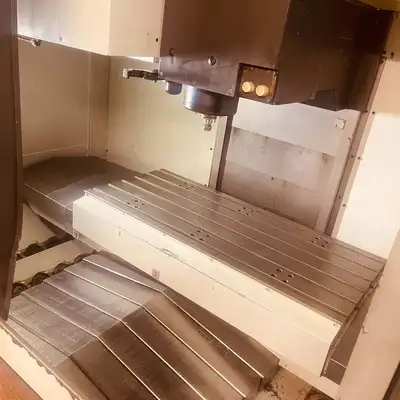

Table size 53.1"x23.6" with 5/8" T-Slots
Power-On Time is 19,797 hours,
Cutting Time is 5,104 hours.
Coolant Through Spindle

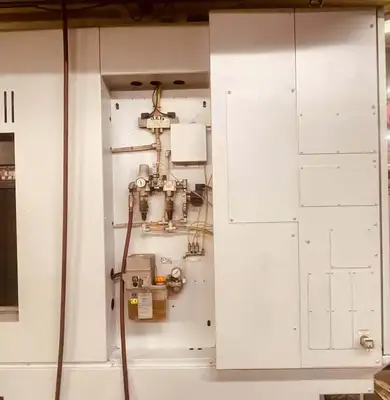

Air Blast
High Pressure Coolant
Coolant Wash Down
Work Light

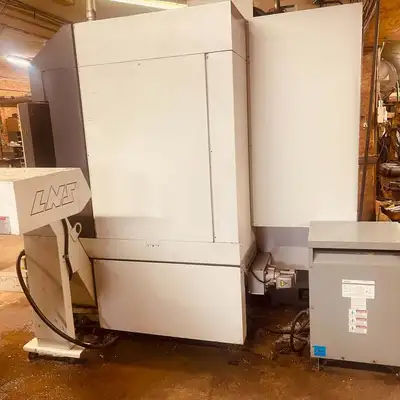

Chip Conveyor (right side)

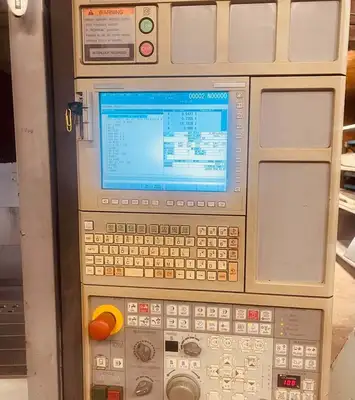

Spindle Chiller, Extra M and G Codes, High Speed Machining Look Ahead Software, Conversational Programming, MAPPS Software, Fully unlocked G-codes for 4th axis (never used - do not have 4th axis), Extra macro programs already installed from Mori. 95% of the work cut on this machine was aluminum. This machine was only ran by 2 people and was extremely well cared for.shipping.
DMG MORI DURAVERTICAL 5100 (2015)
Imperial
| size | 53.1" x 23.6" |
| X Travel | 41.5" |
| Y Travel | 20.9" |
| Z Travel | 20.1" |
| Power | 15 hp |
| RPM | 12,000 RPM |
| # ATC | 30 |
| Taper | 40 |
| Table-W | 23.6" |
| Table-L | 53.1" |
| # Axis | 3 |
DMG Mori Dura Vertical 5100 Machining Center
3 Axis, 30-Station Tool Changer,
12,000 RPM High Speed Spindle
CAT 40 Spindle
20 HP Motor,
X-41.03", Y-20.9", Z-20.1".
Table load 2200 lbs.
Table size 53.1"x23.6" with 5/8" T-Slots
Power-On Time is 19,797 hours,
Cutting Time is 5,104 hours.
Coolant Through Spindle
Air Blast
High Pressure Coolant
Coolant Wash Down
Work Light
Chip Conveyor (right side)
Spindle Chiller, Extra M and G Codes, High Speed Machining Look Ahead Software, Conversational Programming, MAPPS Software, Fully unlocked G-codes for 4th axis (never used - do not have 4th axis), Extra macro programs already installed from Mori. 95% of the work cut on this machine was aluminum. This machine was only ran by 2 people and was extremely well cared for.shipping.
