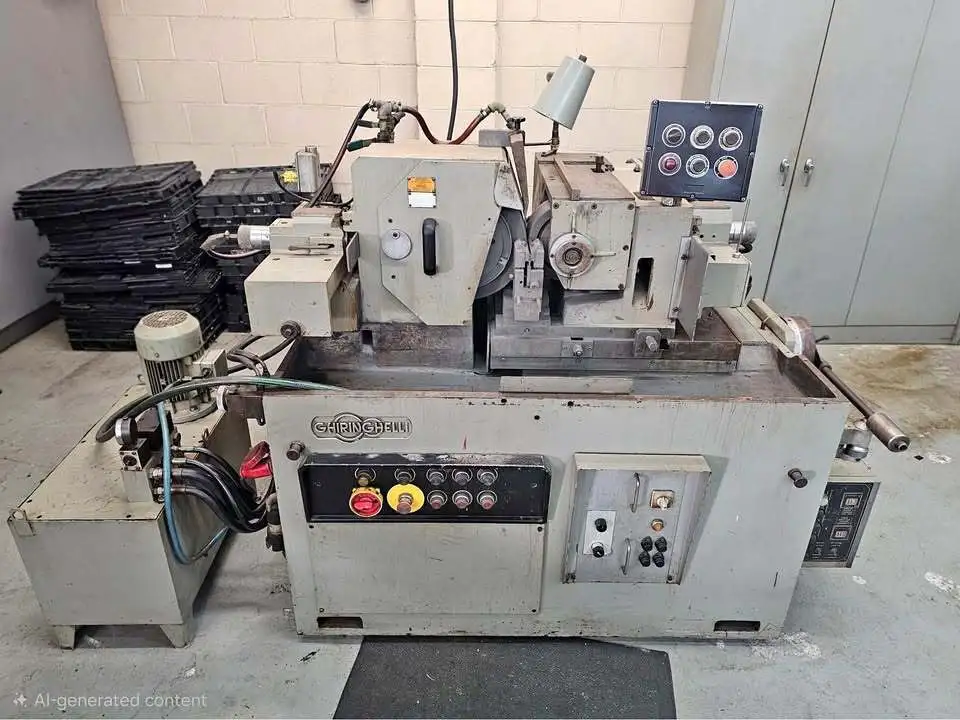

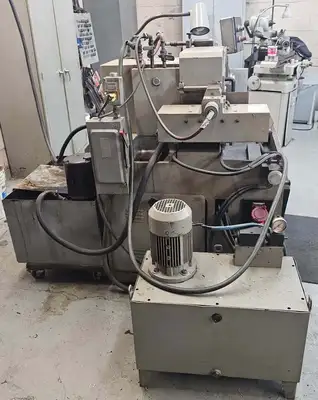

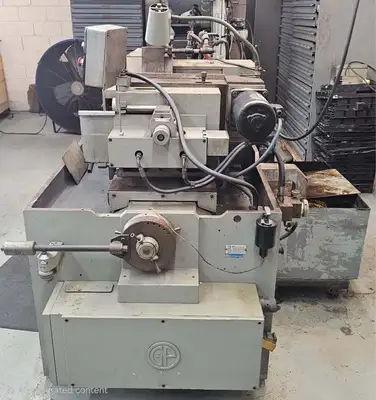

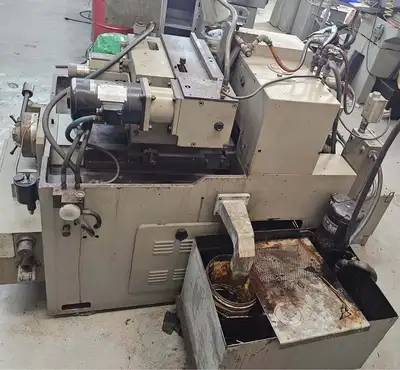

Ghiringhelli M100 D.I.M.I.A Precision Centerless Grinder (1980)

Ghiringhelli M100 D.I.M.I.A Precision Centerless Grinder (1980)

- Workpiece diameter : 0.5 - 40 [mm]
- Max. plunge grinding length : 95 [mm]

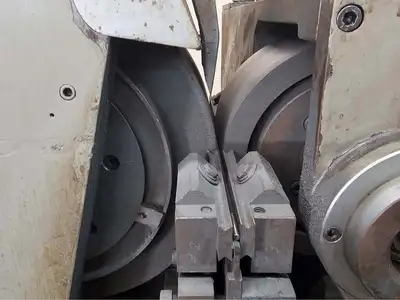

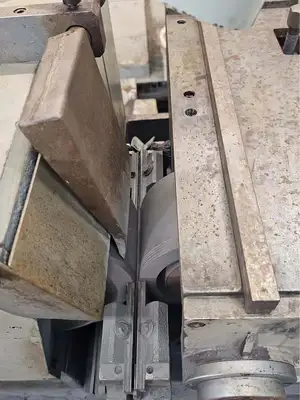

WORKING GRINDING WHEEL
- Grinding wheel width : 100 [mm]
- Peripheral speed : 35 [m/s]
- Grinding wheel speed : 2228 [rpm]
- Minimum wheel diameter : 260 [mm]
- Maximum wheel diameter : 406 [mm]
REGULATING WHEEL
- Grinding wheel width : 100 [mm]
- Wheel tilt : +/- 6 [°]
- Min. diameter of drive wheel : 150 [mm]
- Max. diameter of drive wheel : 205 [mm]
SUPPLY

Ghiringhelli is known for extremely rigid, overbuilt Italian machines capable of holding tight tolerances for decades. This unit has been well cared for and remains fully operational. This centerless grinder is in unusually preserved condition. The machine has been used approximately 1 month per year for very small production runs since it was new. Its primary use was for small tight tolerance shafts.

It has spent its entire life in a temperature-controlled environment. The machine has never been used for continuous industrial service. This is a true production-grade grinder suitable for pins, shafts, bushings, rollers, aerospace hardware, and general precision OD work.

⭐️Machine Features/Specs:
-Heavy cast-iron frame for excellent rigidity.
-Hydraulic infeed
-Manual adjustment for setup and wheel alignment
-Belt Driven grinding and regulating wheels

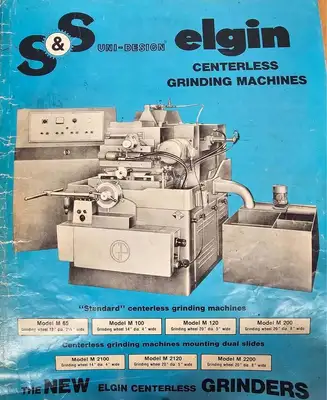

-All original manuals and flyers are included.
