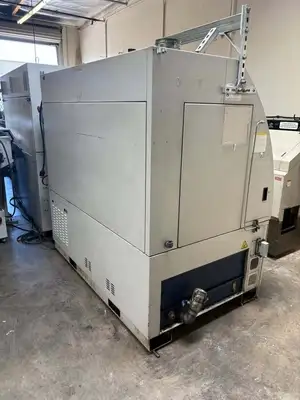

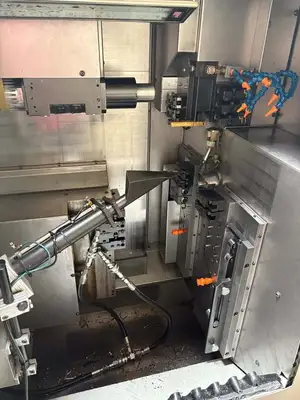

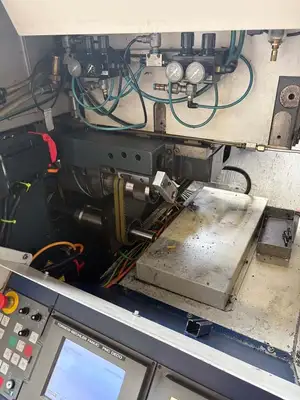

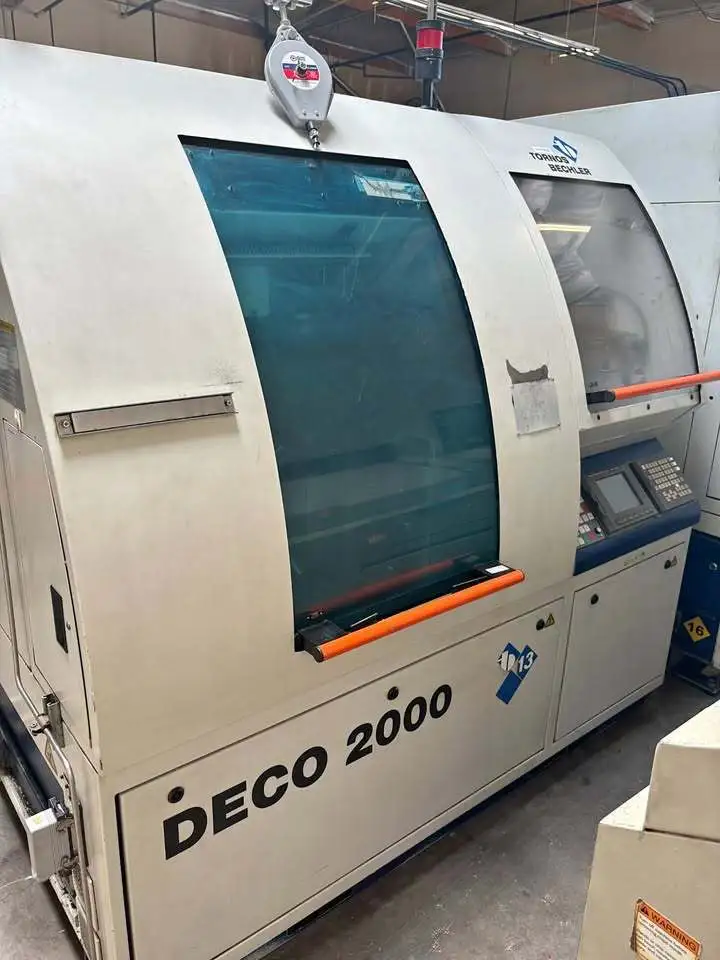

Tornos DECO 2000/13 CNC Swiss Type (2000)

1/2" bar cap Tornos DECO 2000/13 CNC Swiss Type Lathe (2000)
Specifications and Equipment
Max. Bar Capacity: 1/2"
Length of parts - rev guide bush: 180 mm
RPM of programmable spindle: 100 - 10,000 rpm
Positioned stop & indexing: 0.1 degree
Max. spindle power: 2.2 (3.7) kW
Guide bush holder (X1/Y1) (X2/Y2): Specifications Below
No. of tools in the guide bush: 2 x 5 position
Tool section: 12 x 12 mm (12.7 x 12.7)
No. of drills/cross mills: 6 (2 x 3)
Programmable rpm: 100 - 8,000 rpm
Max. turning spindle power: 0.55 (1.1) kW
End unit (X3/Y3): Specifications Below
Max. no. of fixed end tools: 4
Max. number of turning end tools: 3
Programmable rpm: 100 - 8,000 rpm.
Max. power of turning spindles: 0.55 (1.1) kW
(Z4/Y4) and (X4) (+C4 as option): Specifications Below
Max. diameter clamping capacity: 13 (16) mm
Standard part length: 180 mm
Programmable rpm: 100 - 12,000 rpm
Positioned stop and indexing: increment 0.1 degree
Max. power of counter-spindle: 1.5 (2.2) kW
Max. number of counter-operations: 6
No. of fixed and turning spindles: 6
