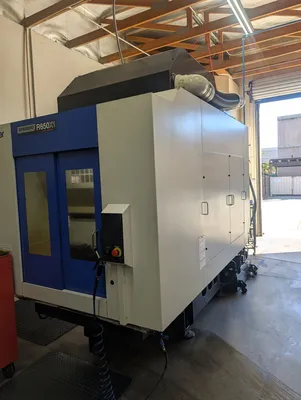

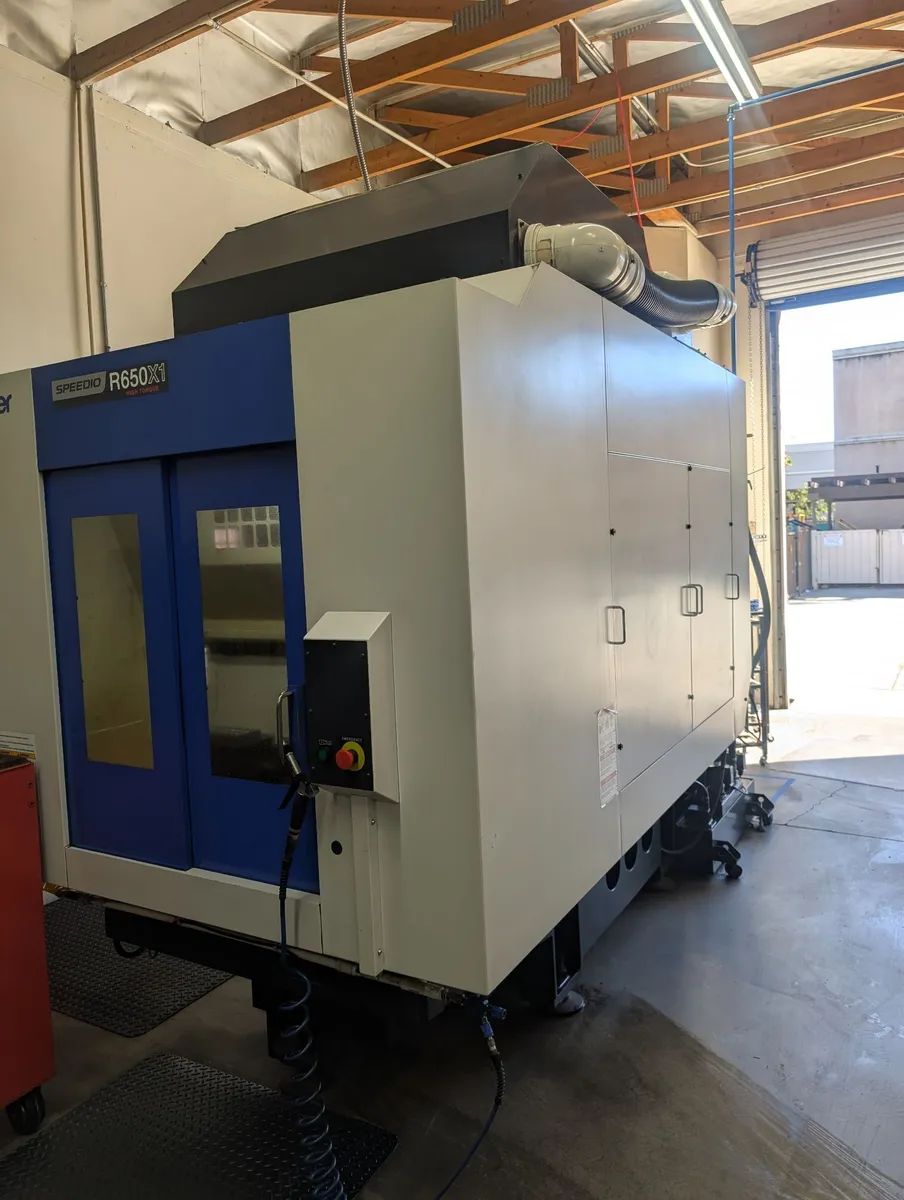

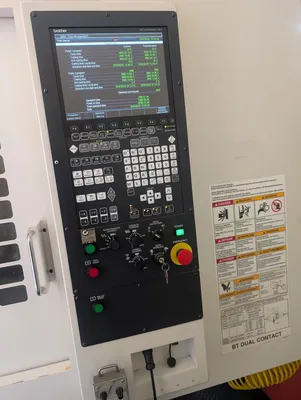

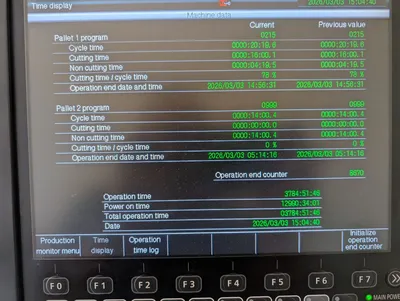

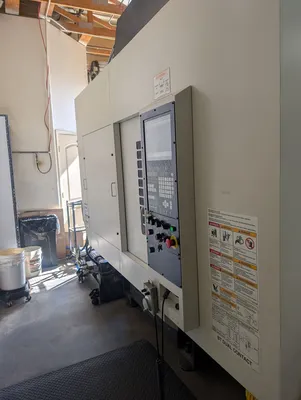

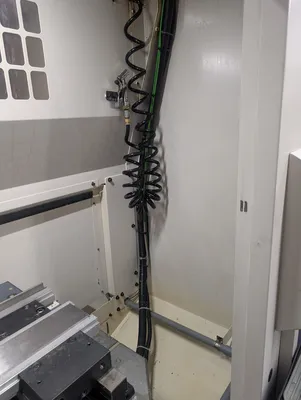

Brother Speedio R650X1 High Torque Vertical Machining Center (2018)

Brother Speedio R650X1 High Torque Vertical Machining Center (2018)

Travels X axis [mm (inch)] 650 (25.6)
Y axis [mm (inch)] 400 (15.7)
Z axis [mm (inch)] 305 (12.0)
Distance between table top and spindle nose end [mm (inch)] 250 - 555 (9.8 - 21.9) [320 - 625 (12.6 - 24.6)]*7

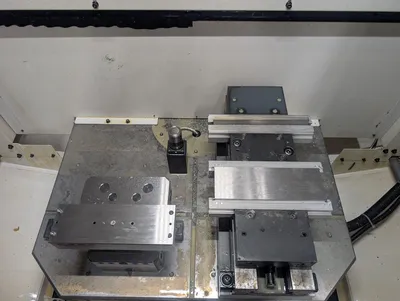

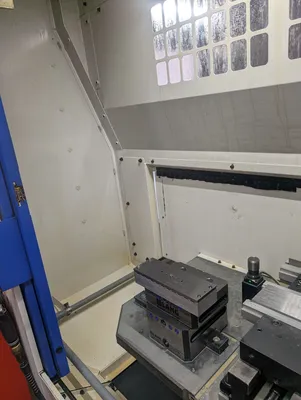

Table Work area size [mm (inch)] 800 x 400 (31.5 x 15.7) (one face)
Max. loading capacity (uniform load) [kg (lbs)] 200 (441) [300 (661)]*6
10,000min-1 high-torque specifications(optional) : 10 - 10,000 BIG PLUS
Speed during tapping [min-1] MAX. 6,000
Tapered hole 7/24 tapered No.30
Coolant Through Spindle (CTS) Optional
Feed rate Rapid traverse rate (XYZ-area) [m/min (inch/min)] 50 x 50 x 50 (1,969 x 1,969 x 1,969)
Cutting feed rate [mm/min (inch/min)] 1 - 30,000 (0.04 - 1,181) (X, Y, Z)*8
ATC unit Tool shank type MAS-BT30
Pull stad type*4 MAS.P30T-2
Tool storage capacity [pcs.] 14/22
Max. tool length [mm (inch)] 200 (7.9)
Max. tool diameter [mm (inch)] 80 (3.1)
Max. tool weight [kg (lbs)]*1 3.0 (6.6) (total tool weight : 25 (55.1) for 14 tools, 40 (88.2) for 22 tools)
Tool selection method Random shortcut method
Tool change time*5 Tool To Tool [sec.] 0.8/0.9 (14 tool/22 tool)
Chip To Chip [sec.] 1.6/1.7 (14 tool/22 tool)
Cut to Cut [sec.] 1.3/1.4 (14 tool/22 tool)
Electric motor Main spindle motor (10 min/continuous) [kW]*2 10,000min-1 specifications : 10.1/6.7
16,000min-1 specifications : 7.4/4.9
10,000min-1 high-torque specifications : 12.8/8.8
Axis feed motor [kW] 1.0 (X,Y), 1.8 (Z)
Power source Power supply AC200V ±10%, 50/60Hz ±1Hz
Power capacity (continuous) [kVA] 10,000min-1 specifications : 9.5
16,000min-1 specifications : 9.5
10,000min-1 high-torque specifications : 10.4

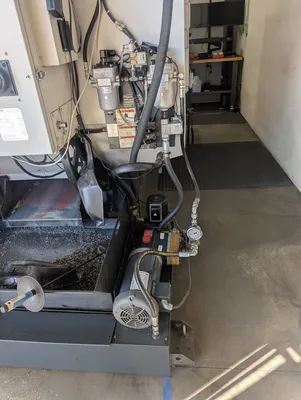

Air supply Regular air pressure [MPa] 0.4 - 0.6 (recommended value : 0.5MPa)*9
Required flow [L/min] 50

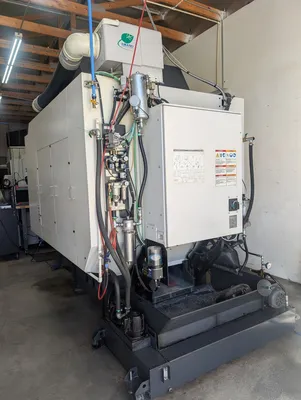

Machine dimensions Height [mm (inch)] 2,696 (106.1)
Required floor space (with control unit door open) [mm (inch)] 1,837 x 3,248 [3,764] (72.3 x 127.9 [148.2])
Weight [kg (lbs)] 3,500 (7,716)
Accuracy*3 Accuracy of bidirectional axis positioning (ISO230-2:2006) [mm (inch)] 0.006 - 0.020 (0.00024 - 0.00079)
Repeatability of bidirectional axis positioning (ISO230-2:2006) [mm (inch)] Less than 0.004 (0.00016)
Standard accessories Instructin manual (1 set), Anchor bolts (5 pcs.), Leveling bolts (5 pcs.)
*1 Maximum tool weight differs depending on the configuration and center of gravity. The figures shown here are for reference only.
*2 Spindle motor output differs depending on the spindle speed.
*3 Measured in compliance with ISO standards and Brother standards. Please contact Brother for details.
*4 Brother specifications apply to the pull studs for CTS.
*5 Measured in compliance with JIS B6336-9 and MAS011-1987.
*6 Can be increased up to 300kg (one face) by changing the parameter. Please consult us separately.
*7 Values when the low-floor table is selected.
*8 When using high accuracy mode B. When not using high accuracy mode B, 1 to 10,000 mm/min for X/Y-axes and 1 to 20,000 mm/min for Z-axis.
*9 Regular air pressure varies depending on the machine specifications, machining program details, or use of peripheral equipment. Set the pressure higher than the recommended value.
