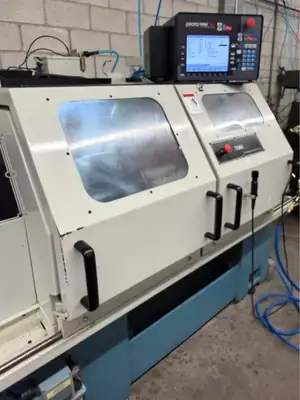

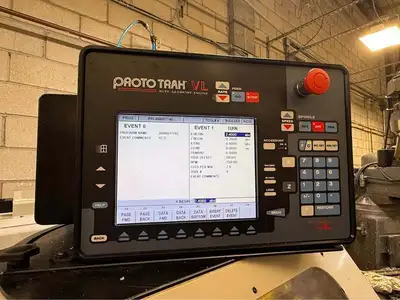

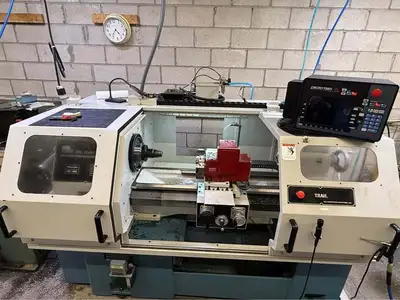

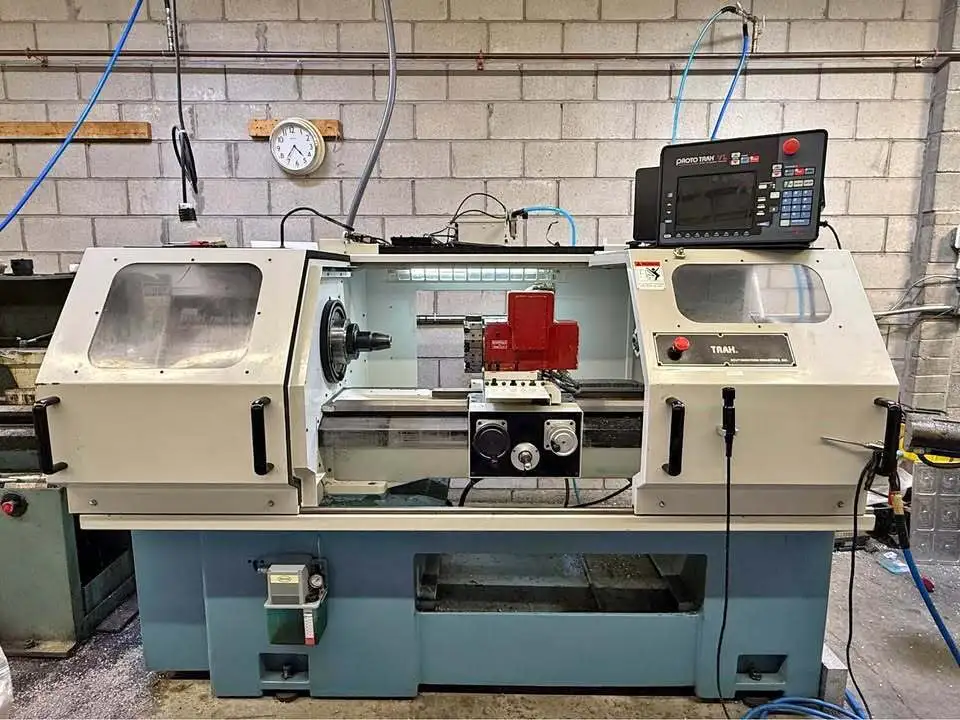

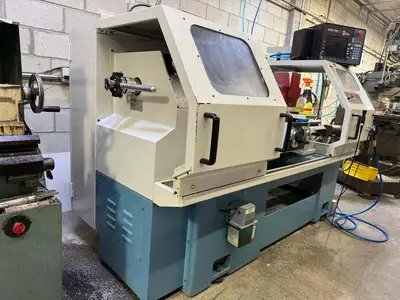

Southwestern Industries TRAK TRL 1540V CNC Lathe

Southwestern Industries TRAK TRL 1540V CNC Lathe
Height of Centers: 8"
Distance between centers: 40"
Swing over bed: 15"
Swing over saddle wings: 15"
Swing over cross slide: 6 5/8"
Cross slide travel: 11 "
Bed Width: 12 5/8"
Bed Height: 12 5/8"
Spindle Nose: A2-5
Spindle through hole: 2 1/8"
Spindle Taper: MT #6
Spindle diameter front bearing: 3.15"
High-speed angular contact bearings
Number of bearings: 5
Bearing Class (Radial Runout)
Number of Spindle Speed Ranges&. 1
Spindle Speed Range (RPM): 150-4000
Spindle HP: 10
Dimensions net LxWxH: 89x53x70"
Dimensions ship LxWxH: 90x55x73"
Weight net: 4100 lbs.
Quill diameter: 2.375"
Quill taper hole: MT#4
Coolant pump motor: 1/8 HP
Electrics: 220/3/60
Equipped with:
