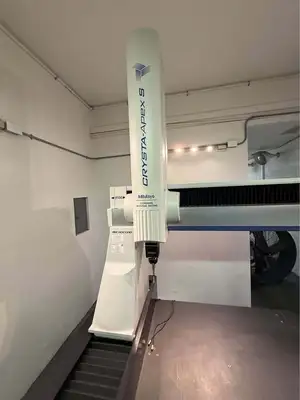

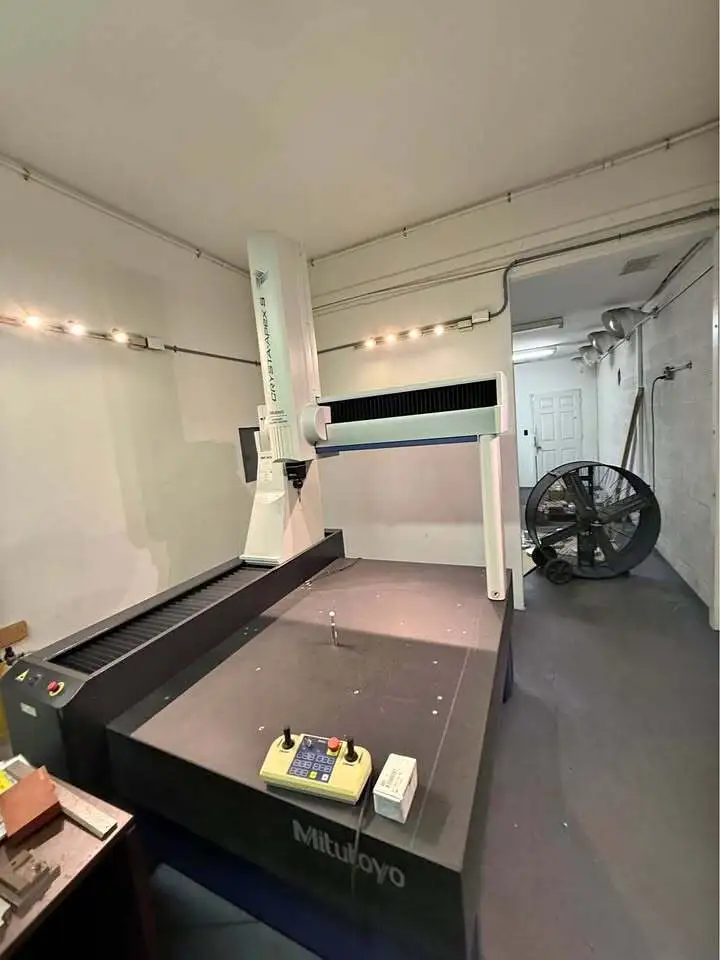

Mitutoyo Crysta-Apex 9106S CMM Coordinate Measuring Machining, Excellent Machine.
Just Calibrated Down to 1 Micron. Bought it new in 2016. Very good and accurate CMM. Extremely low hours, Calibrated yearly. 3D Software and an Articulating Head.
Mitutoyo Crysta-Apex S 9106 CMM Coordinate Measuring Machine
range
X axis 35.43"(900mm)
Y axis 39.36"(1000mm)
Z axis 31.49""(800mm)
Resolution 0.000004" (0.0001mm)
Guide method Air bearings on each axis
Drive
speed
CNC mode
(Key selector: AUTO) Max. moving speed = 519mm/s (20.4"/s) (3D) Max. measuring speed = 8mm/s
CNC mode
(Key selector: MANUAL) Max. moving speed = 239mm/s (9.4"/s) (3D) Max. measuring speed = 8mm/s
Max. drive acceleration 2309mm/s2 [1732mm/s2 ] (3D)
Workpiece Maximum height 31.49" (800mm)
Maximum mass 2,645lbs.(1200kg) 3,306lbs.
Mass (including the control device
and installation platform)
4,919lbs. (2231kg)
[4,985lbs. (2261kg)]
6,322lbs. (2868kg)
[6,389lbs. (2898kg)]
8,625lbs. (3912kg)
[8,691lbs. (3942kg)]
Air supply
Pressure 58 PSI (0.4MPa)
Consumption 2.11CFM (60L/min) under normal c
Bought it new in 2016. Very good and accurate CMM. Extremely low hours, Calibrated yearly. 3D Software and an Articulating Head.
