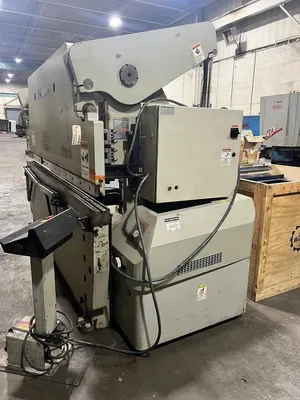

ACCURPRESS 130 TON X 10' HYDRAULIC CNC PRESS BRAKE MODEL 713010 (2000)
Have one to sell?
ConditionUsed
1 available

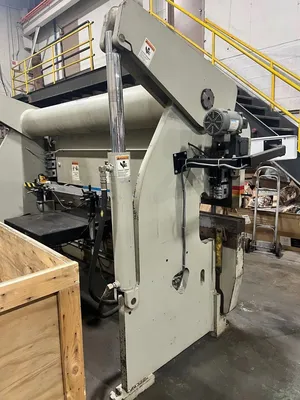

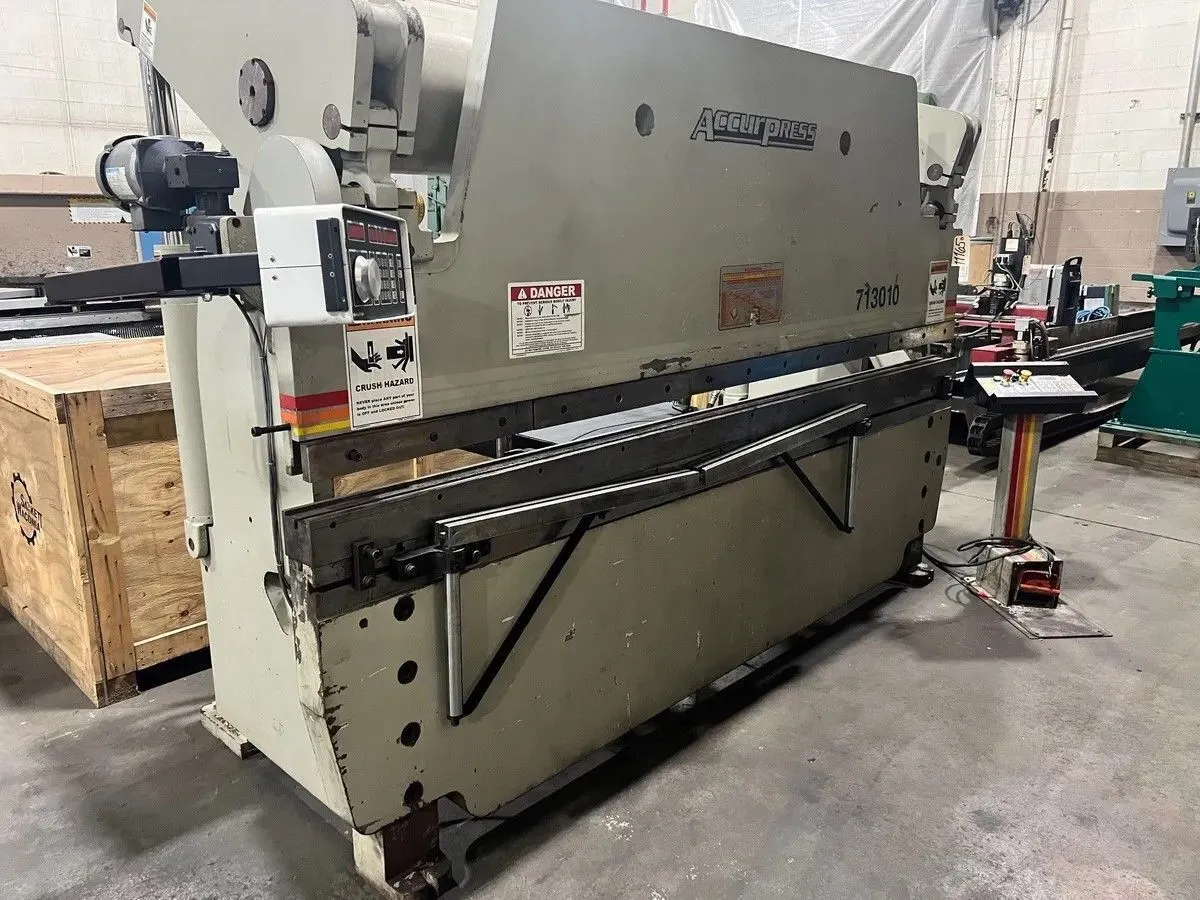

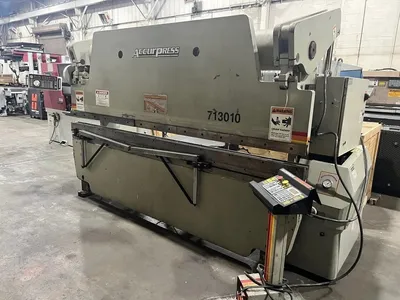

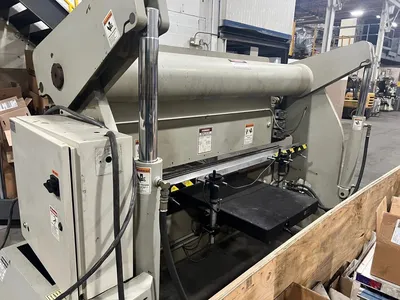

Discover precision with the used ACCURPRESS 713010. This 130-ton hydraulic brake, model year 2000, offers features like a 10' bed/ram, sectionalized ram clamps, powered tilt adjustment, and a Comp-U-Bend 610 plus backgauge control. Ideal for versatile applications.
Specifications:
Tonnage: 130 Tons
Overall length bed/ram: 10’
Distance between housings: 100”
Ram depth stop style: limit switches with fine adjustment
Upacting or downacting: Downacting
Ram tilt adjustment: Powered
Number of gauging axis: 1
Stroke length: 8”
Throat depth: 10”
Clamp style (American or European): American
Ram clamps (sectionalized or solid bar): Sectionalized
Hydraulic or manual clamping: Manual
Die space (open height): 14”
Die space (closed height): 6”
Number of cylinders: 2
Advance speed: 115 IPM
Pressing speed: 24 IPM
Return speed: 260 IPM
Die holder type: Standard single groove
Bed height: 34”
Bed cap width: 4.5”
Main motor: 15 H.P.

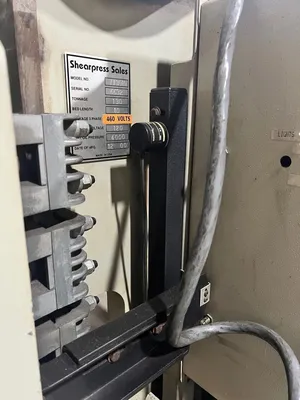

Voltage: 220 / 440 volt 3 phase ( currently wired 440 volt 3 phase)
Dimensions: 143” x 53” x 84”
Weight: 15,000 Lbs.
Equipped With:

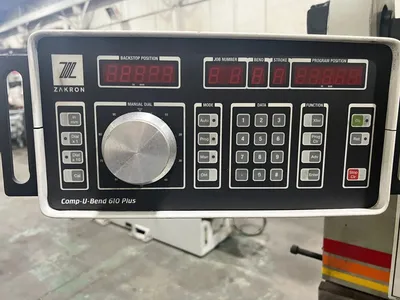

1-axis Zakron Comp-U-Bend 610 plus backgauge control
Full length die holder

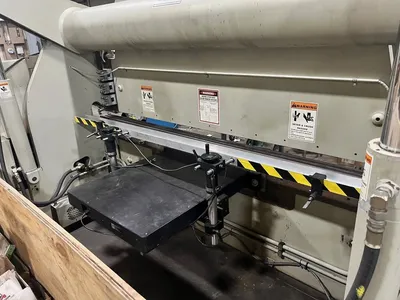

(2) front support armsManual R axis

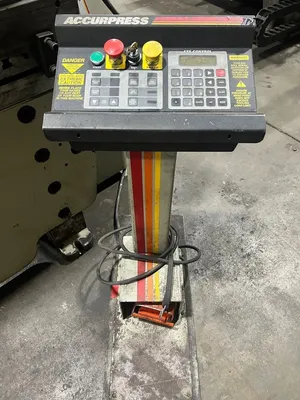

Portable pedestal control with palm buttons
Speed control
Drilled and Tapped holes in bed
