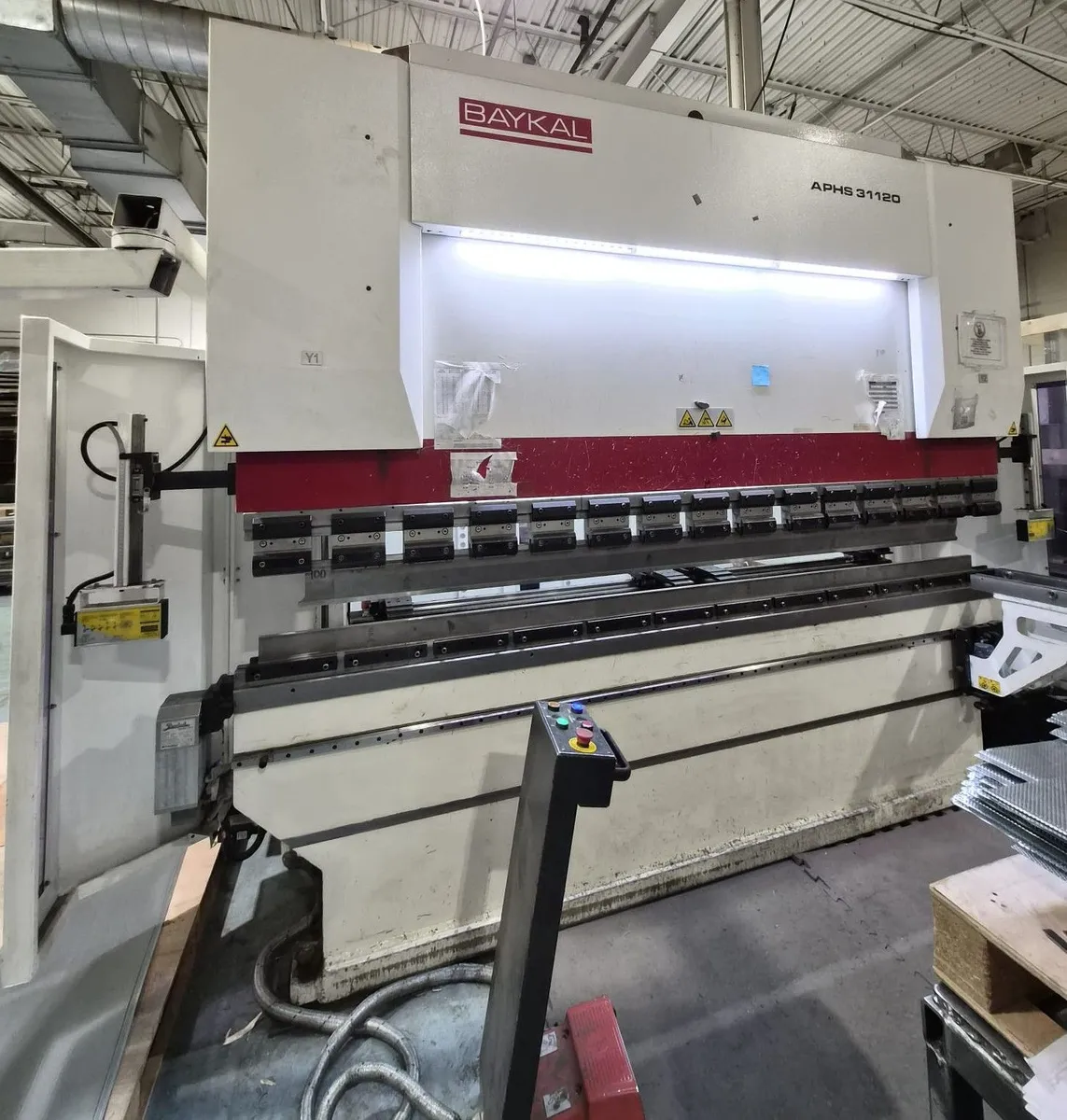

Baykal APHS 31120 120 Ton x 10' CNC Hydraulic Press Brake (2018)

The Baykal APHS 31120 is a CNC hydraulic press brake designed for machining flat metal materials up to 3100 mm in length. It features a maximum bending capacity of 120 tons and operates with a precision of 0.01 mm.

Equipped with a high-quality design made of ST44-2 steel, ensuring minimal deflection under full load. Safety features include emergency stop buttons and a laser safety system that automatically stops the machine if the laser beam is interrupted.
Specifications: DESIGN AND OPERATING FEATURES
 Rigid, welded, monoblock steel frame for minimum deflection
under load up to 330 tons (Models above 330 tons are bolted).
 Downstroking bending beam with two cylinders made from high quality
certified forged steel, precisely honed and chrome plated.
 Ram travel fully supported in low friction fiber slideways.
 Full electronic synchronization with proportional valve technology
assuring maximum bend accuracy and repeatability through

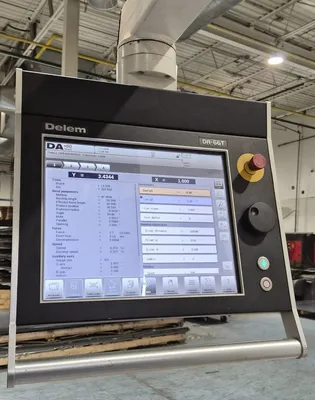

constant monitoring and correction of beam parallelism by a
CNC system +/- .0004 parallelism and repeatabiIity.
 Stroke-depth measurement through high-precision linear scales
which are bed referenced for the best bending repeatability
 CNC-controlled backgauge on ballscrew spindles with AC servo
motor for precise accuracy and speed.
 Block-type European hydraulics.

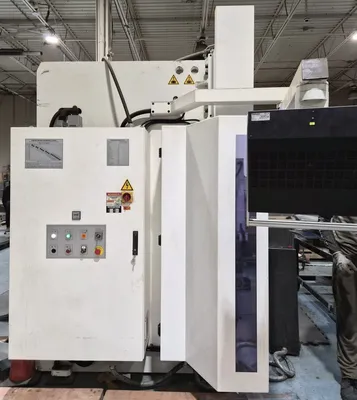

 Large electrical cabinet for maximum ventilation.
 Full conformity with EU/CE Machinery Directive for safety
certification.
 ST 44-2 Certified steel used for components.
 CSA certified & PHSR compliance ready.

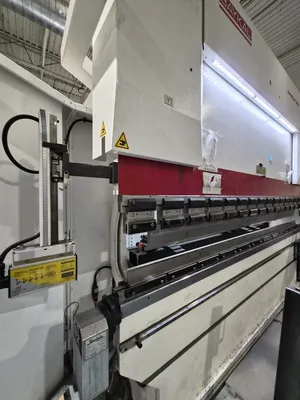

 Block laser safety guarding.
