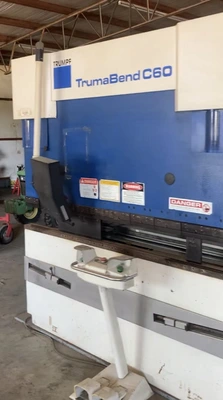

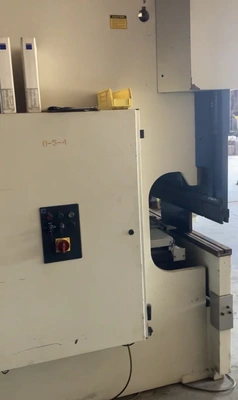

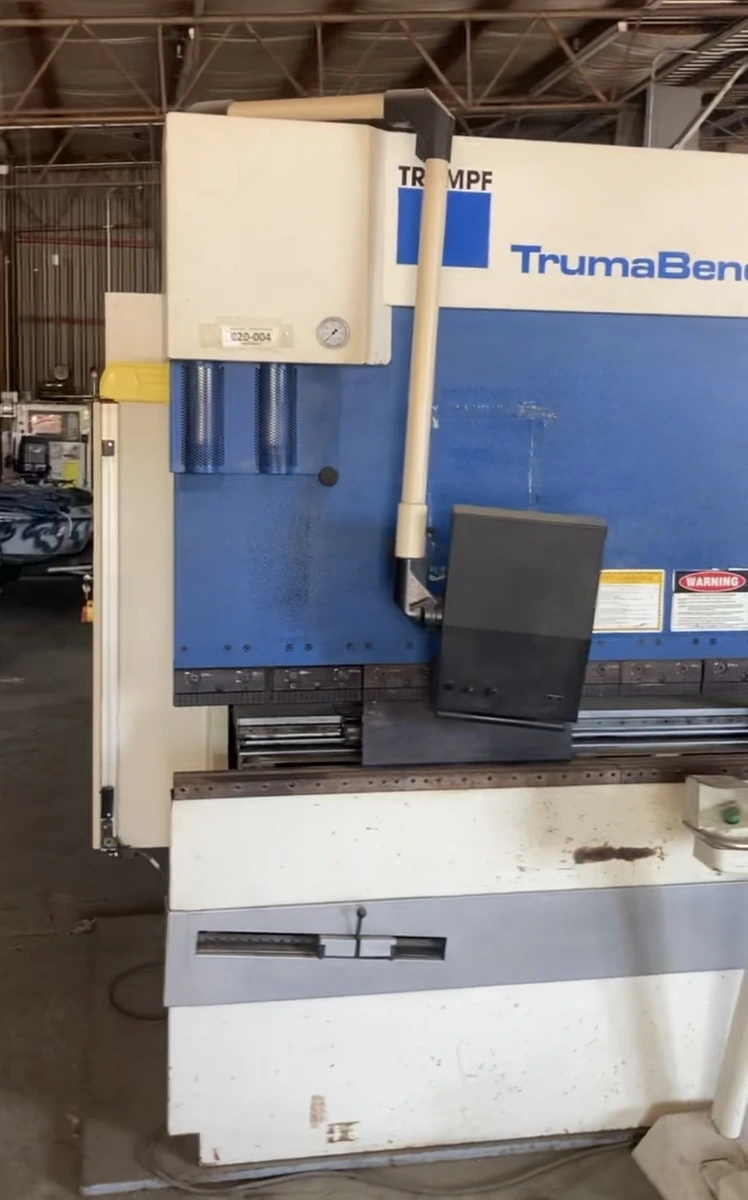

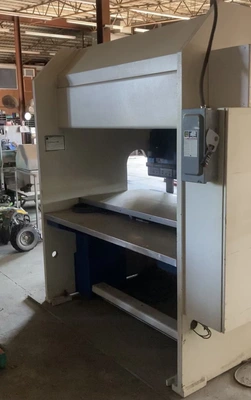

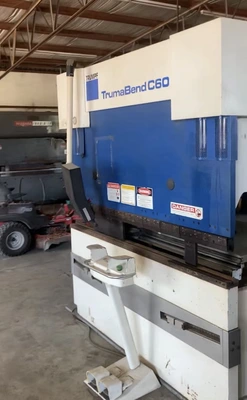

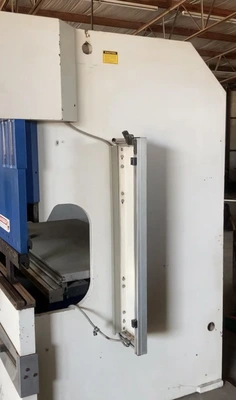

Trumpf Trumabend C60 CNC Hydraulic Press Brake
Tonnage Capacity
67 Tons
Maximum Bending Length
82"
Distance Between Housings
69"
Stroke Length
8"
Throat Depth
16.5"
Travel In X-Axis (Back Gauge Range)
20"
Speed of Travel in X-Axis
827 IPM
Travel In R-Axis (Back Gauge Up/Down) . 13"
Press Speed (Rapid Advance)
236 IPM
Press Speed (Bending)
47 IPM
Press Speed (Return)
472 IPM
Main Motor
10 HP
Overall Dimensions
96" x 65" x 95"
Overall Weight
10,780 Lbs.
