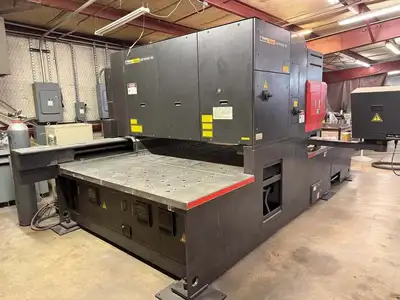

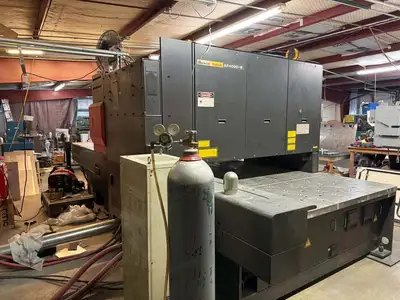

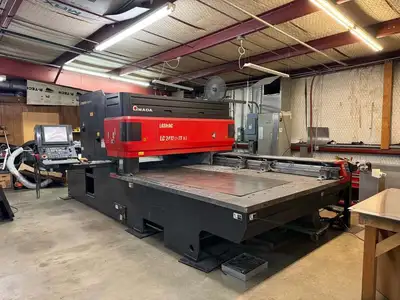

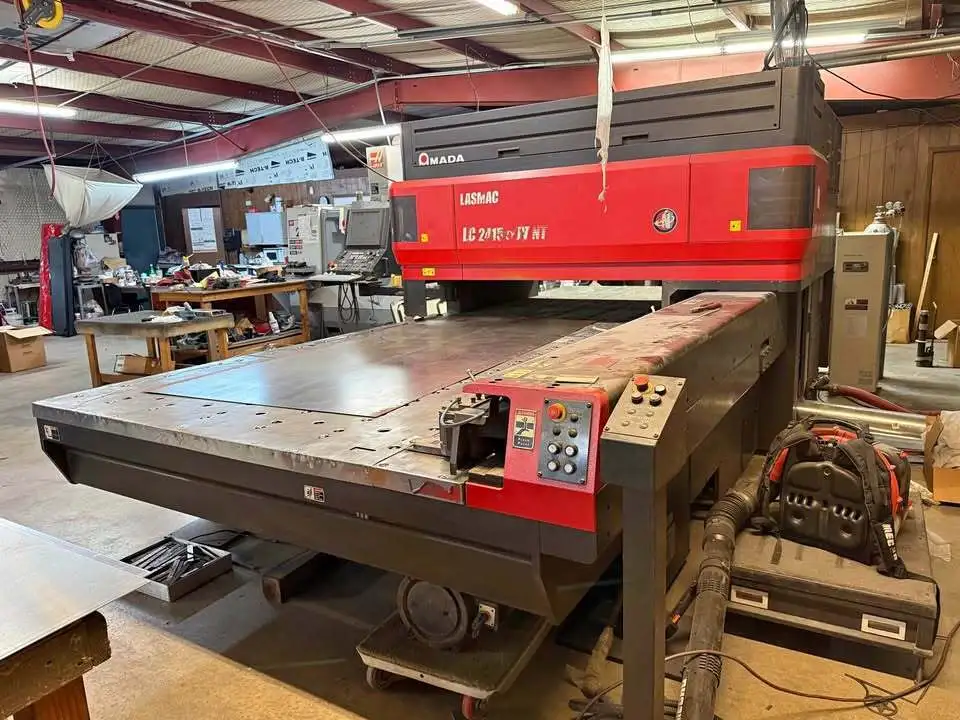

Amada Lasmac LC 2415 Alpha IV NT 4000 Watt CNC Laser (2011)

Amada Lasmac LC 2415 Alpha IV NT 4000 Watt CNC Laser (2011)

Axis Traverse Distance 2520 x 1550 x 300 mm (Z axis)
Max. Sheet Size
(including 1 reposition) 5040 x 1550 mm
Max. Guaranteed
Material Thickness 12mm mild steel
10mm stainless (clean cut)
8mm aluminium (A5052)
Max. Material Weight 330 kg
Max. Feed Speed 80m/min (X & Y axis)
60m/min (z axis)
Laser Cutting Speed 0 - 20m/min
Positioning Repeatability +/- 0.005mm
Axis Drive (X, Y & Z) AC servo motor
Workchute 1750 x 550 mm
Assist Gas 3 ports, automatic control
Electric Power Required
(Includes Oscillator) 65KVA 400V +/- 10% 50Hz
Air Required Machine Only 6.0 Kgf/cm2 520 L/min
