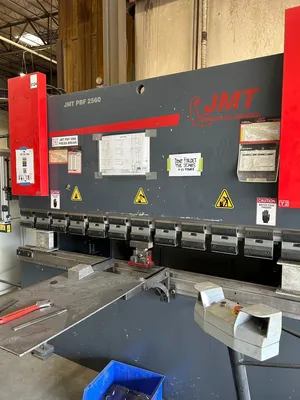

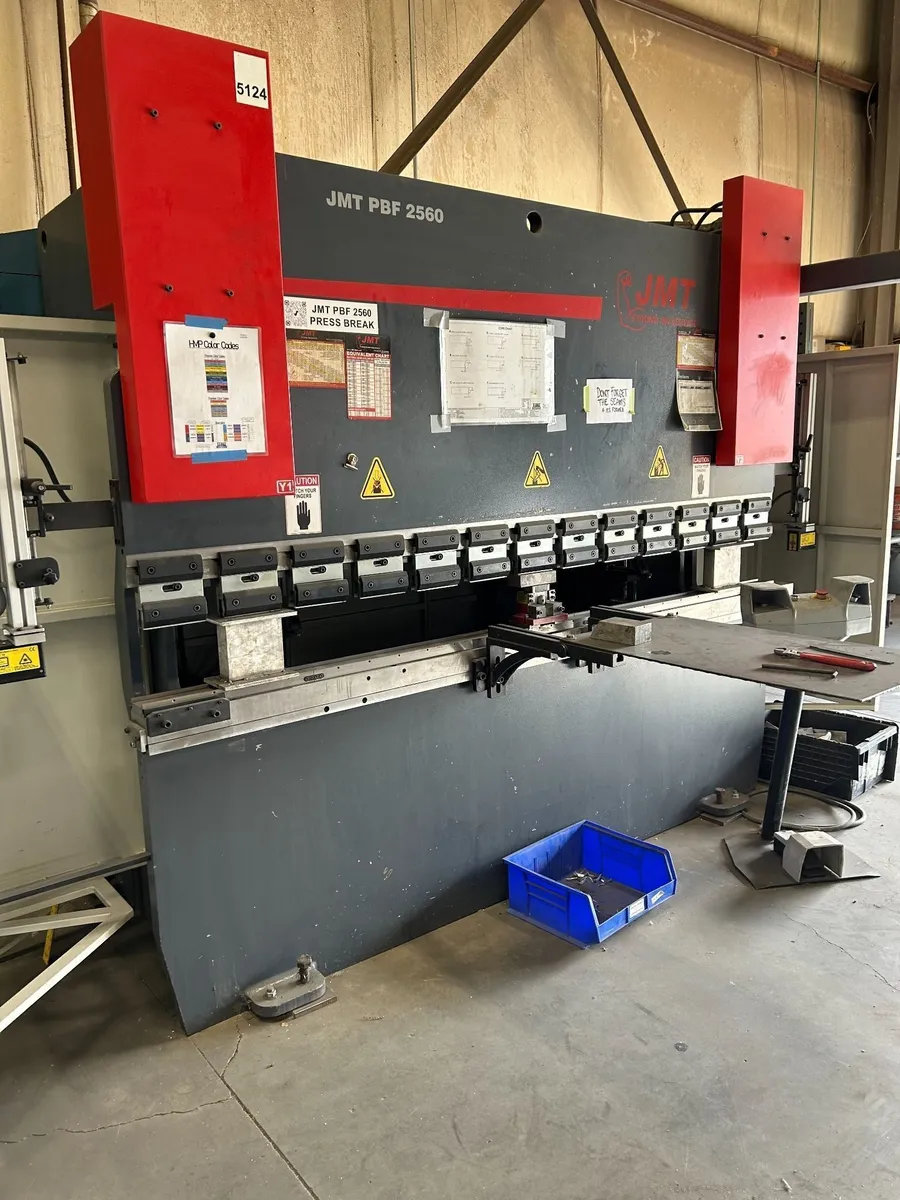

Durma PBF-2560 66 Ton 100" CNC Hydraulic Press Brake (2013)

Durma PBF-2560 66 Ton 100" CNC Hydraulic Press Brake (2013)

Bending force 60 Ton
ending length 100.39" 2550 mm
Distance between columns 84.65" 2150 mm
Stroke 6.3" 160 mm
Daylight 13.78" 350 mm
Throat depth 9.84" 250 mm
Rapid speed of Y axes mm/sec 120
Y axis working speed mm/sec 9
Return speed of Y axes mm/sec 70
Table height 32.68" 813 mm
Table width 4.09" 104mm
Working speed of the X axes mm/sec 250
X-axis stroke mm 620
Motor power kW 5,5
Length 127.9" 3250 mm
Width 47.24" 1200 mm
Height 92.85" 2350 mm
Approximate weight 9369 lbs 4250 kg
