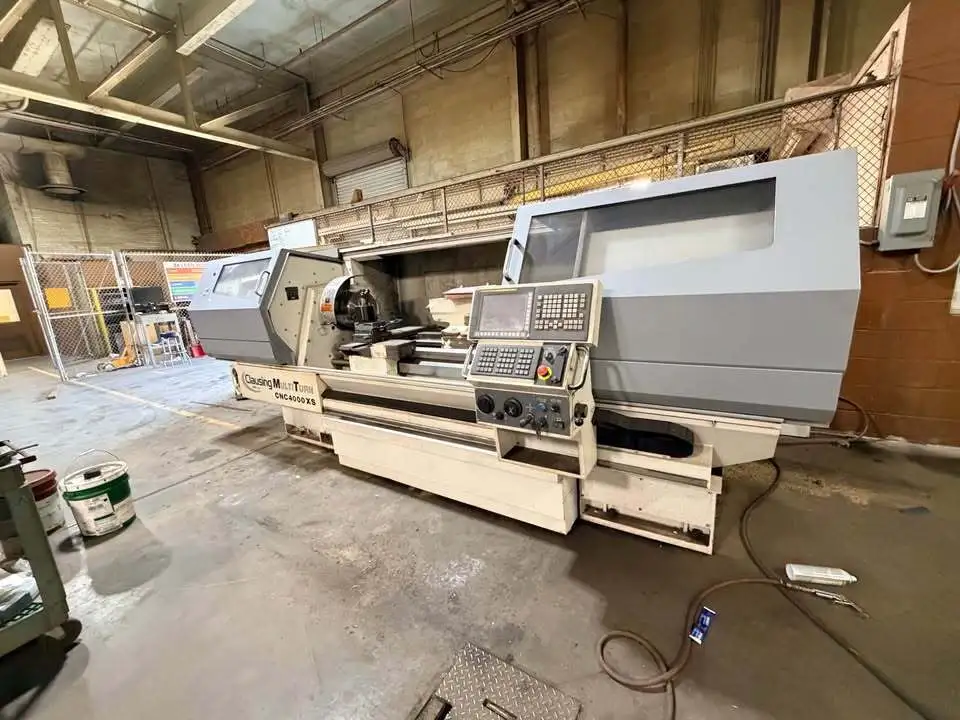

Clausing MultiTurn CNC 4000XS CNC Lathe (2020)

Clausing MultiTurn CNC 4000XS CNC Lathe (2020)

Spindle (Hp) 10/15
Swing Over Bed (inch) 21.8
Swing Over Cross slide (inch) 14.5
Swing in Gap (inch) 32.7
Distance Between Centers (inch) 80
Bed Width (inch) 15.7

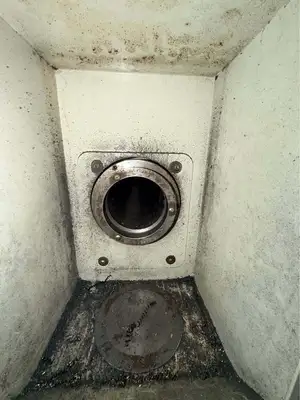

Spindle Bore (inch) 4.09
Spindle Nose (camlock) D1-11
Spindle Nose Taper 5 MT
Number of Spindle Speeds 3 infinitely variable
Spindle Speed RPM Range 1 – 2000
X-Axis Rapid Travers (in/min) 315
Z-Axis rapid Traverse (in/min) 394
X-Axis Thrust (lbs.) 1,464
Z-Axis Thrust (lbs.) 2,196
X-Axis Ballscrew 25 x 4 mm
Z-Axis Ballscrew 40 x 8 mm
Positioning Accuracy (inch) 0.0002
Repeatability (inch) 0.0001
Tailstock Quill Diameter (inch) 3.7
Tailstock Quill Travel (inch) 5.7
Tailstock Quill Taper 6 MT
Machine Foot Print (LxWxH) (inch) 161 x 77 x 69
Machine Weight (lbs.) 8,060
