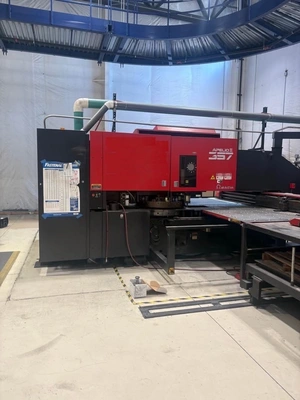

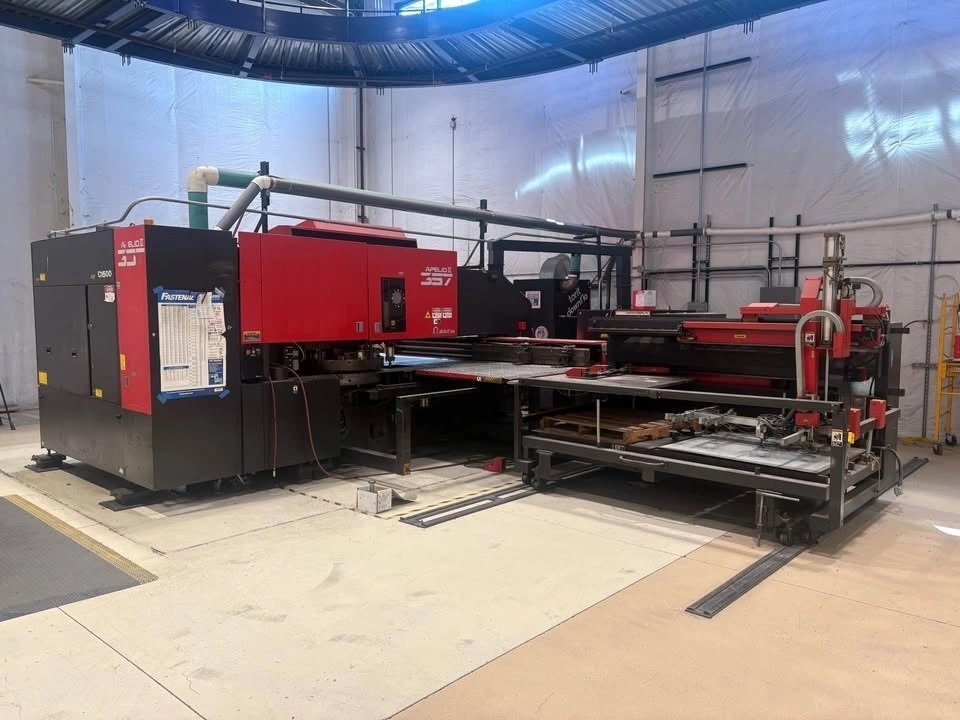

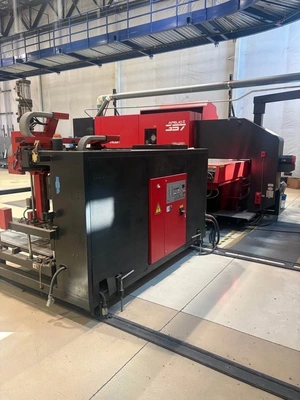

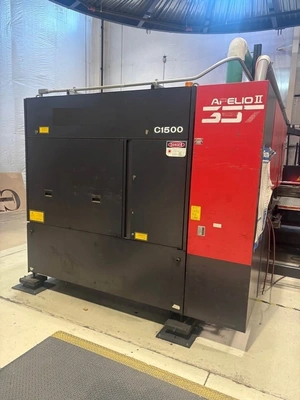

Amada Apelio 357 II CNC Combination Plasma Turret Punch

Machine frame: Double-C Frame
Laser Properties

Laser power: 1500 W
Oscillator: C-1500
Laser type: CO2-Laser
Working range for Laser (X x Y): 1830 x 1270 mm

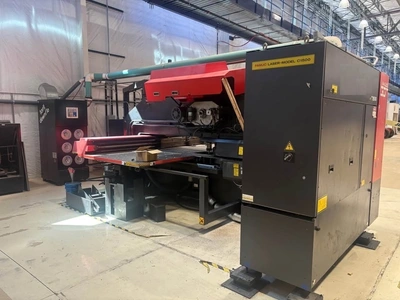

Oscillator

Type: C-1500
Stability: ± 1.00 %
Duty range: 0 ~ 100%
Stability: ± 1.00 %
Beam divergence: < 2 mm x mrad
Laser source: AC HF excited, fast-flowing
Pulse frequency: Hz
Laser wave length: 10.6 µm
Lasergas consumption: 10 l per hour
Punching properties

Punching force: 300 kN
Working range for punching (X x Y): 1270 x 1830 mm
Tool stations: 58
Punching drive: Hydraulic
Tooling system: Turret magazine
Tool stations that can rotate: 2

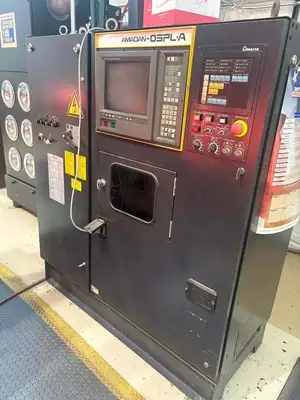

Controller

Type: AMADAN
Operating system: Embedded
Controlled axes (simultaneously): 3
Length: 5,520 mm
Height: 1,030 mm
Display size: 14"
Operating system: Embedded
Programming system: ISO / EIA
Width: 4,619 mm
Weight: 15,000 kg
