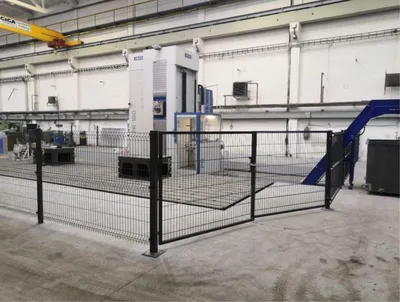

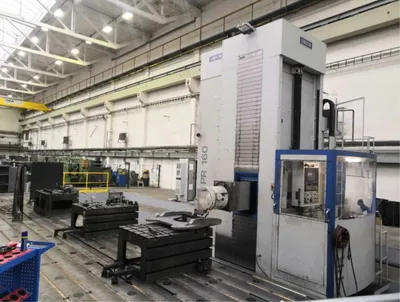

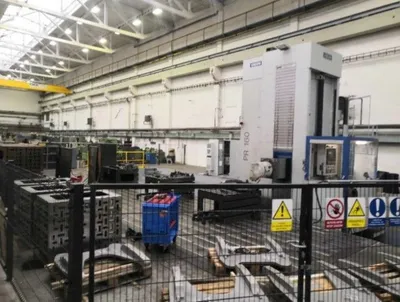

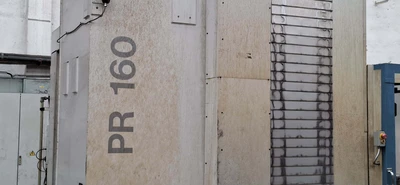

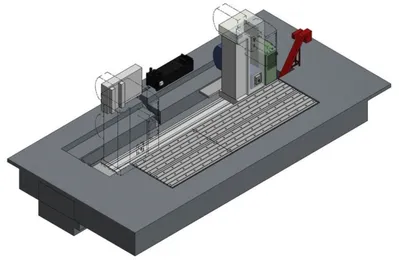

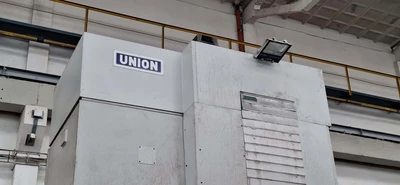

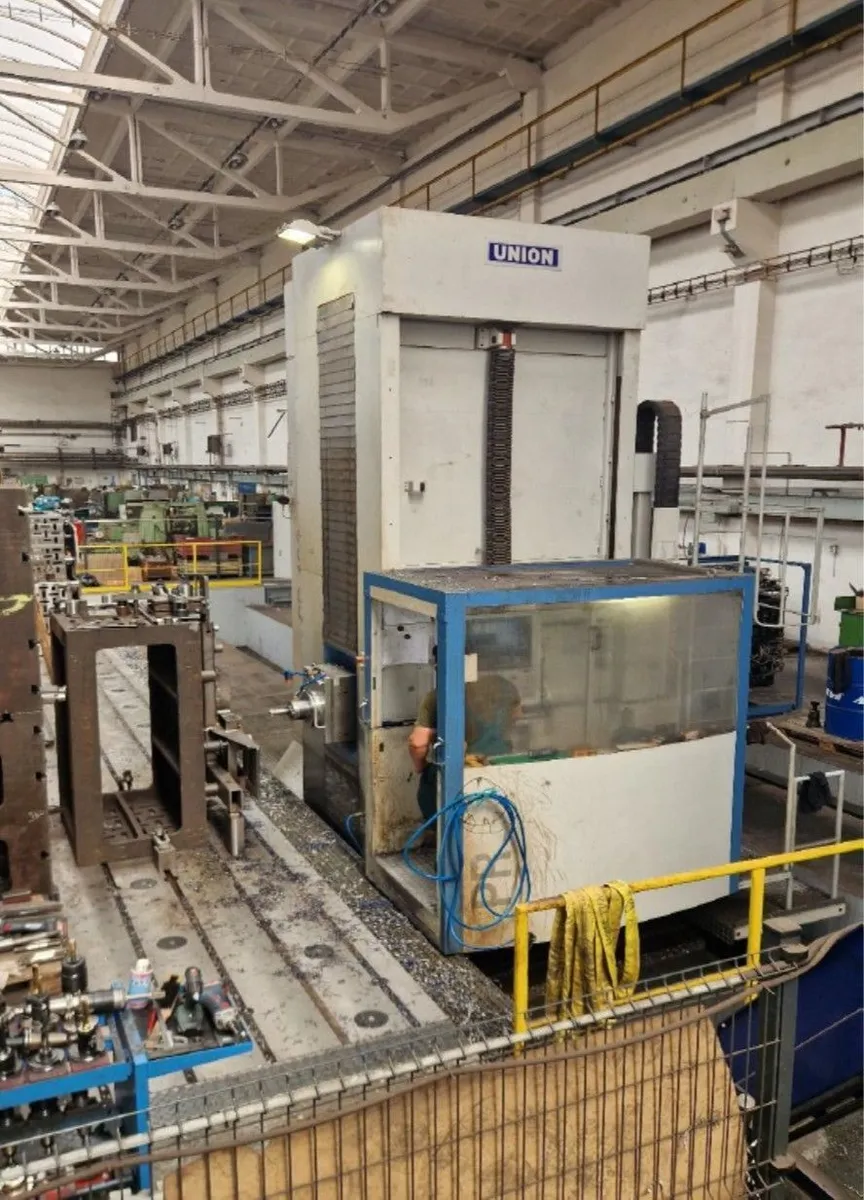

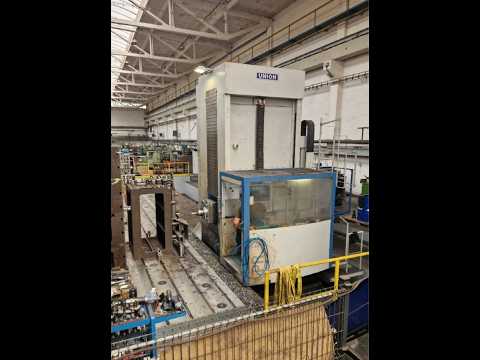

Union PR160 CNC Floor Type Horizontal Boring Mill (2008)

Union PR160 CNC Floor Type Horizontal Boring Mill (2008)

Year of manufacture…………………………………..2008

Type………………………………………………Plate type

X-axis travel……………………………….11,000 mm

Y-axis travel……………………………….3,000 mm

Z-axis travel (spindle extension)…………1,000 mm

W-axis travel (spindle extension)…….700 mm

Working feed X, Y, Z, W………….1 – 6,000 mm/min

Rapid feed………………………………..15,000 mm/min

Feed force X, Y, Z, W…………….25 kN

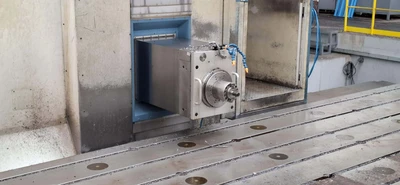

Spindle diameter………………………..162 mm

Clamping…………………………………………..ISO 50

Max. spindle speed……………………….2,800 rpm

Max. torque…………………………………2,868 Nm

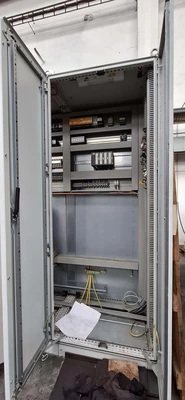

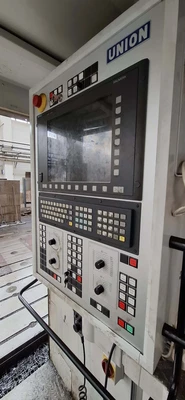

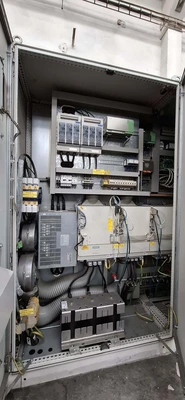

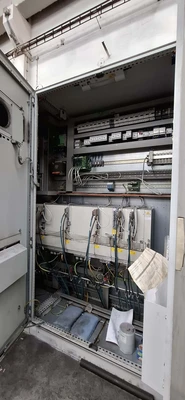

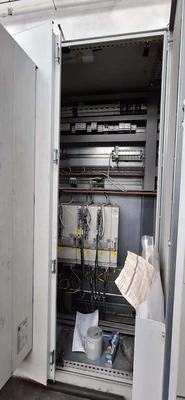

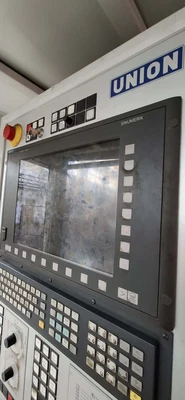

Control system: Siemens Sinumerik 840D

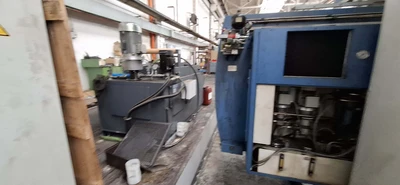

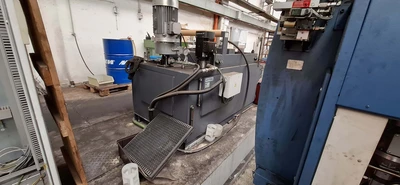

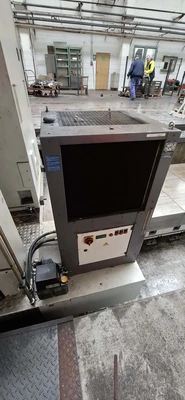

Cooling by rinsing (6 bar) and high-pressure cooling through the spindle center (max. 70 bar)

Right-angle milling head KDF4/90 see below

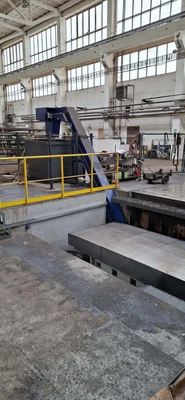

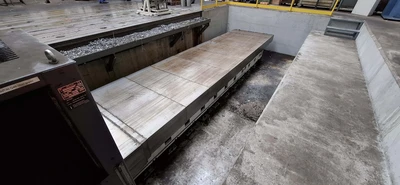

Swarf conveyor X=11 m

Workpiece probe

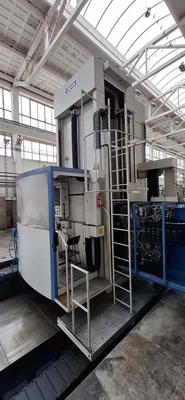

Operator lifting cabin

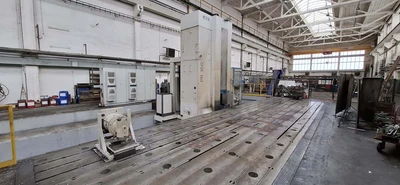

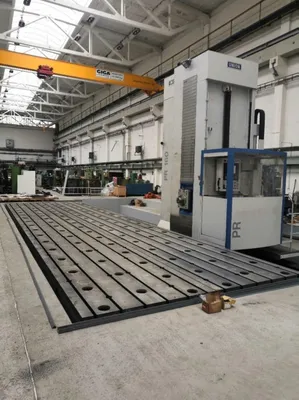

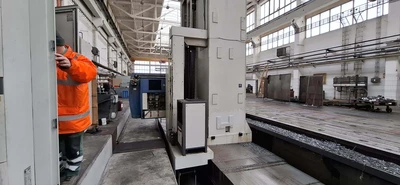

Clamping plates……..total dimensions 13,600 x 3,770 mm, divided into 4 parts

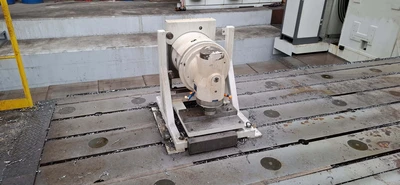

Right-angle milling head KFD4/90:

Automatic head clamping on the quill

Automatic tool clamping

Clamping cone... ISO 50

Max power... 30 kW

Max torque... 1,000 Nm

Max speed... 2,800 rpm

Max. feed force X,Y... 17.5kN

Max. feed force W... 12kN

Positioning... 1-360°

Positioning accuracy... +/-3 sec
