heavy-duty, automatic buffing and polishing machine specifically designed for high-gloss finishing on lacquered wood panels, such as those used in furniture and kitchen manufacturing. It is typically part of a two-machine line that includes the Rotoplus LUC 1350 for initial polishing and wax application

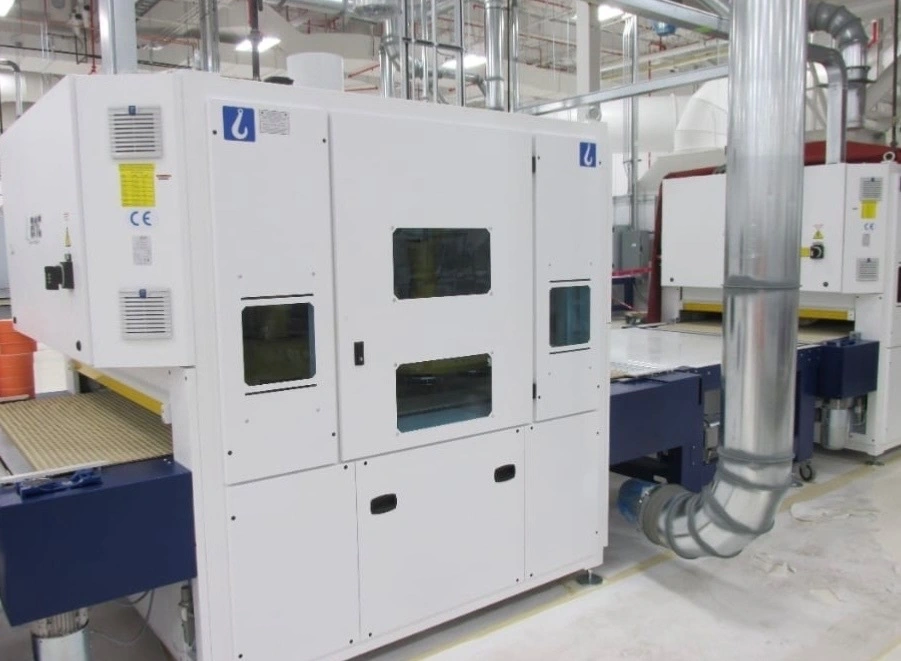

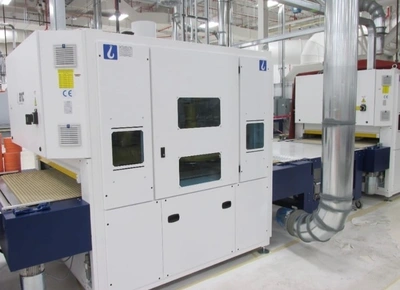

EMC Rotoplus LUC Brill 1350 Wet Sanding and Polishing Machine (2017)
Working Width: 1,350 mm (53 inches).
1st Station (Longitudinal Brush): Longitudinal cleaning/polishing cotton brush with a diameter of 275 mm (10-13/16") and a length of 1,420 mm (55-5/16").
2nd Station (Polishing Carousel): 5-arm carousel with rotating pads or brushes. The carousel is fitted with (15) buffing pads (standard) of 160 mm or 350 mm max diameter, depending on configuration.
Speed Control: Variable pad speeds from 280 to 1,600 RPM or 3 to 36 RPM, controlled by an electronic inverter.
Motors: 7.5 kW (10 HP) longitudinal motor; carousel brushes use 5.5 kW (7.5 HP) motors (5 total) or 2.2 kW motors.
System: Automatic liquid abrasive spraying gun with a 50-liter pressure tank.
Control: Main electronic touch screen display for all working functions.
Features: Constant pass line (900 mm from the floor)
Working Width: 1,350 mm (approx. 52 inches).
Working Thickness: Capable of handling materials from 0.5 mm to 170/200 mm.
Voltage: 230/400 V, 50/60 Hz, 3-Phase.
Feed Speed: Variable speed from 0.4 to 8 m/min, controlled via an electronic inverter.
Polishing Carousel: Equipped with a 5-arm carousel holding 15 rotating buffing pads (three per group).
Advanced Control: Features a 7-inch color touch screen with PLC micro-processor, capable of storing up to 100 working programs.
Automation: Includes an automatic timing sequence starter, synchronized feed speeds across the line, and an automatic system for abrasive wax application.
Remote Support: Integrated software and plug for telemetry, allowing for direct computer remote diagnostics
