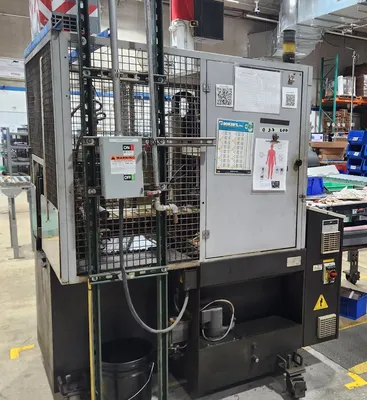

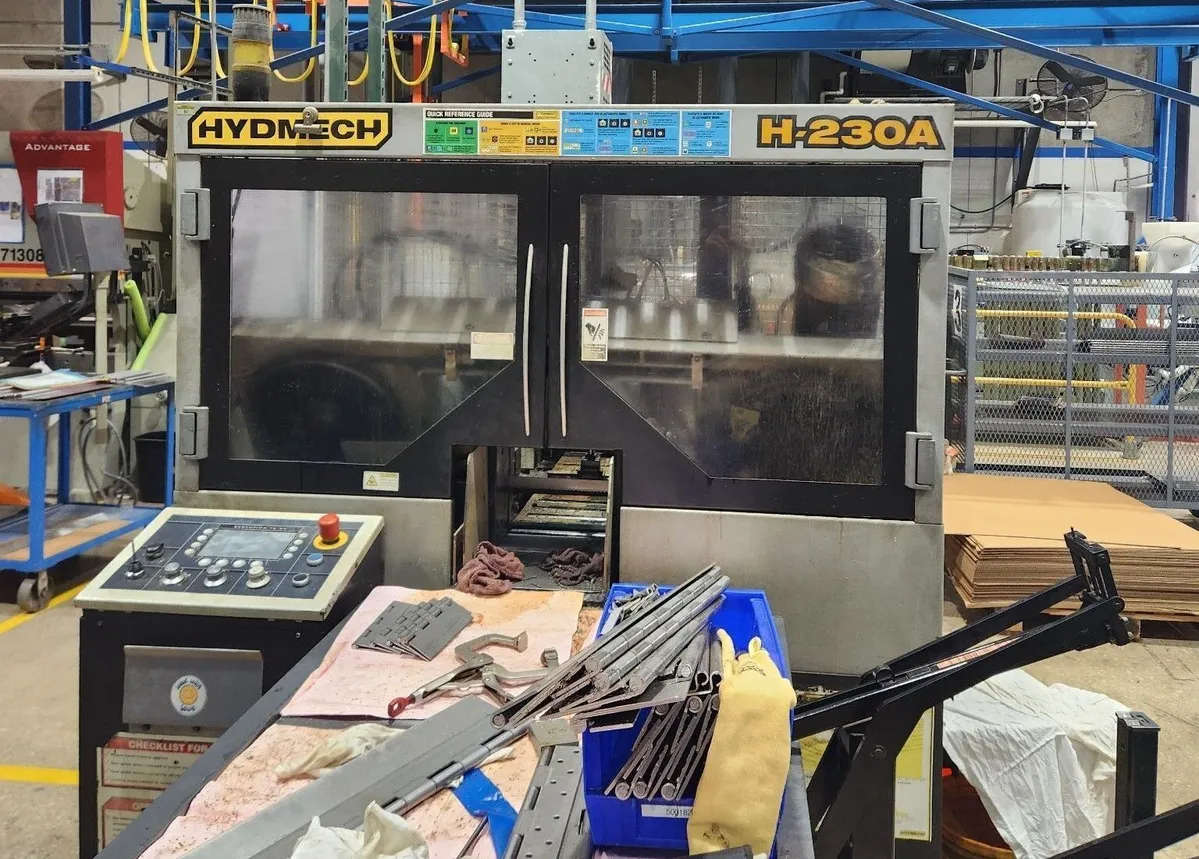

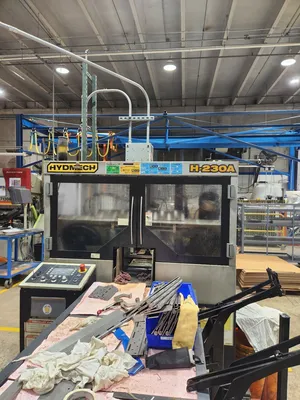

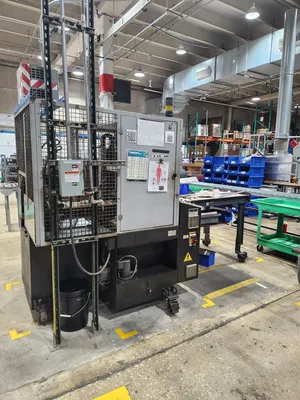

Hyd-Mech H-230A Automatic Horizontal Band Saw (2017)
Have one to sell?
ConditionUsed
1 available
Low Hour Hyd-Mech H-230A Automatic Horizontal Band Saw (2017) For Sale. Its split front vise for material clamping results in less burr on cut pieces. The machines controller can be easily programmed, storing up to 10 different cutting jobs with 5 in queue and features several different cutting modes.
Equipped with a shuttle feed, its shuttle vise assembly is capable of high speed material indexing up to 19” in a single stroke. Driven by a stepper motor controlled by a ball screw assembly, the H-230A provides quick, accurate cuts.
Featuring a 9″H x 9″W capacity, 3 HP motor, and 1″ blade, the H-230A is a reliable choice for your horizontal cutting applications.
Hyd-Mech H-230A Automatic Horizontal Band Saw (2017)
Capacity Rectangular (h x w) Round
90° 9″ x 9″ 9″
Blade Size 1” x 9’ 8”
Blade Drive 3 HP VFD
Machine Voltage 480 v (all other voltages require optional transformer)
Blade Speed 50-350 SFM
Automatic Multi-Indexing 0-19″
Remnant Length 2.5” (6” with bundling)
Machine Weight 2,200 lbs.
Table Height 35”
Dimensions (w x l x h) 61” x 63” x 67”
