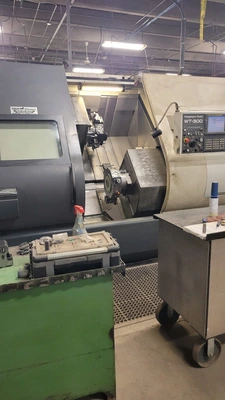

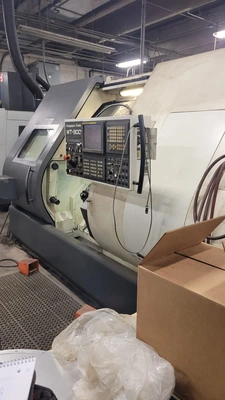

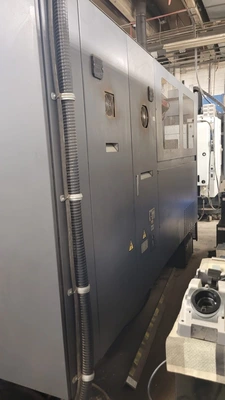

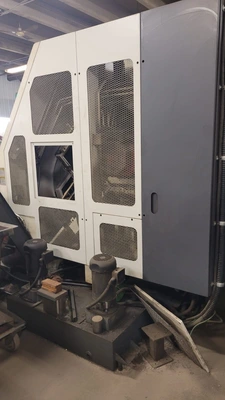

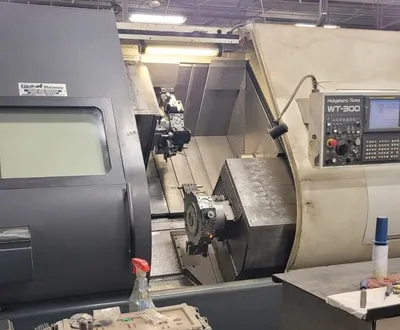

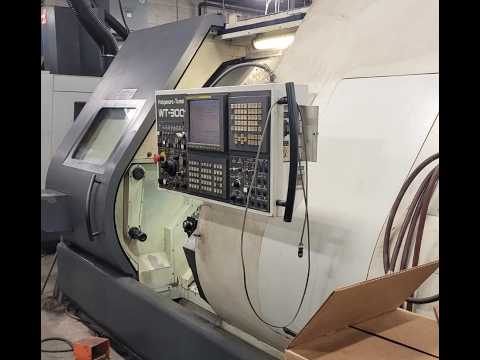

Nakamura Tome WT-300 Live Tool CNC Lathe

Nakamura Tome WT-300 Live Tool CNC Lathe

Max. Swing Over Bed: 12.2″
Max. Turning Capacity: 10.6″
Maximum Center Distance: 30.7″
Upper Turret: 30.7″
Lower Turret: 30.77
Upper Turret: 7.6″
Lower Turret: 7.6″
Y-Axis Travel (Upper Turret Only): 2.36″
B-Axis Sub Spindle Slide: 33.46″
C-Axis On Both Spindles: .001º
No. Of Turrets: 2
Tool Positions On Each Turret: 12
No. Of Stations On Each Turret: 24
Spindle Bore: 3.1″
Spindle Nose: A2-6
Spindle Speed Range: 50-4500 Rpm
Live Tooling Horsepower: 5 Hp
Machine Dimensions: 166″ X 100″ X 89″ H (Approx.)
Weight: 28,000 Lbs (Approx.)
