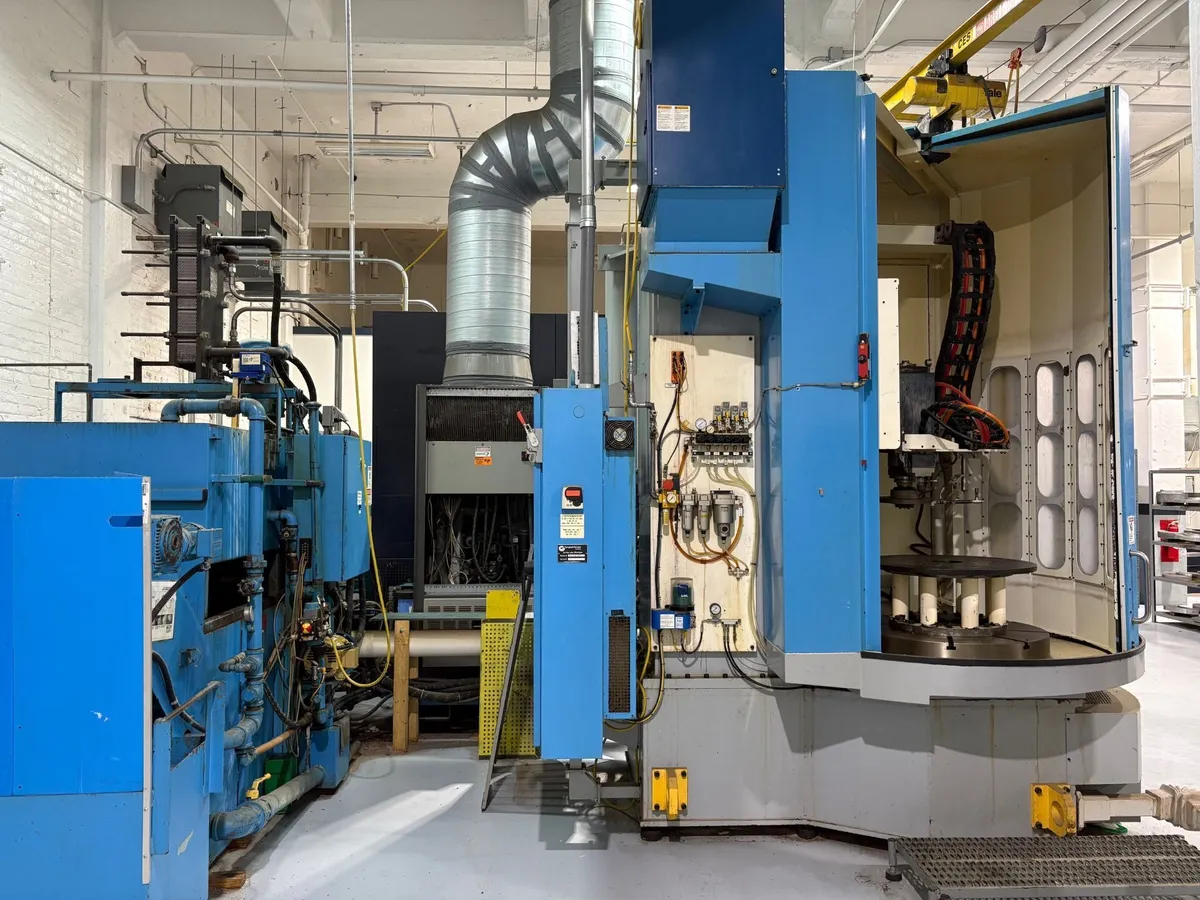

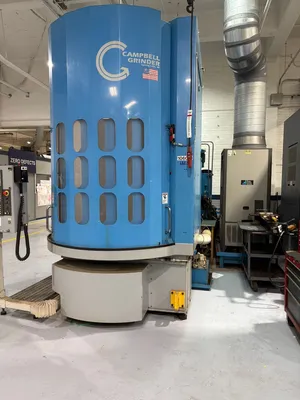

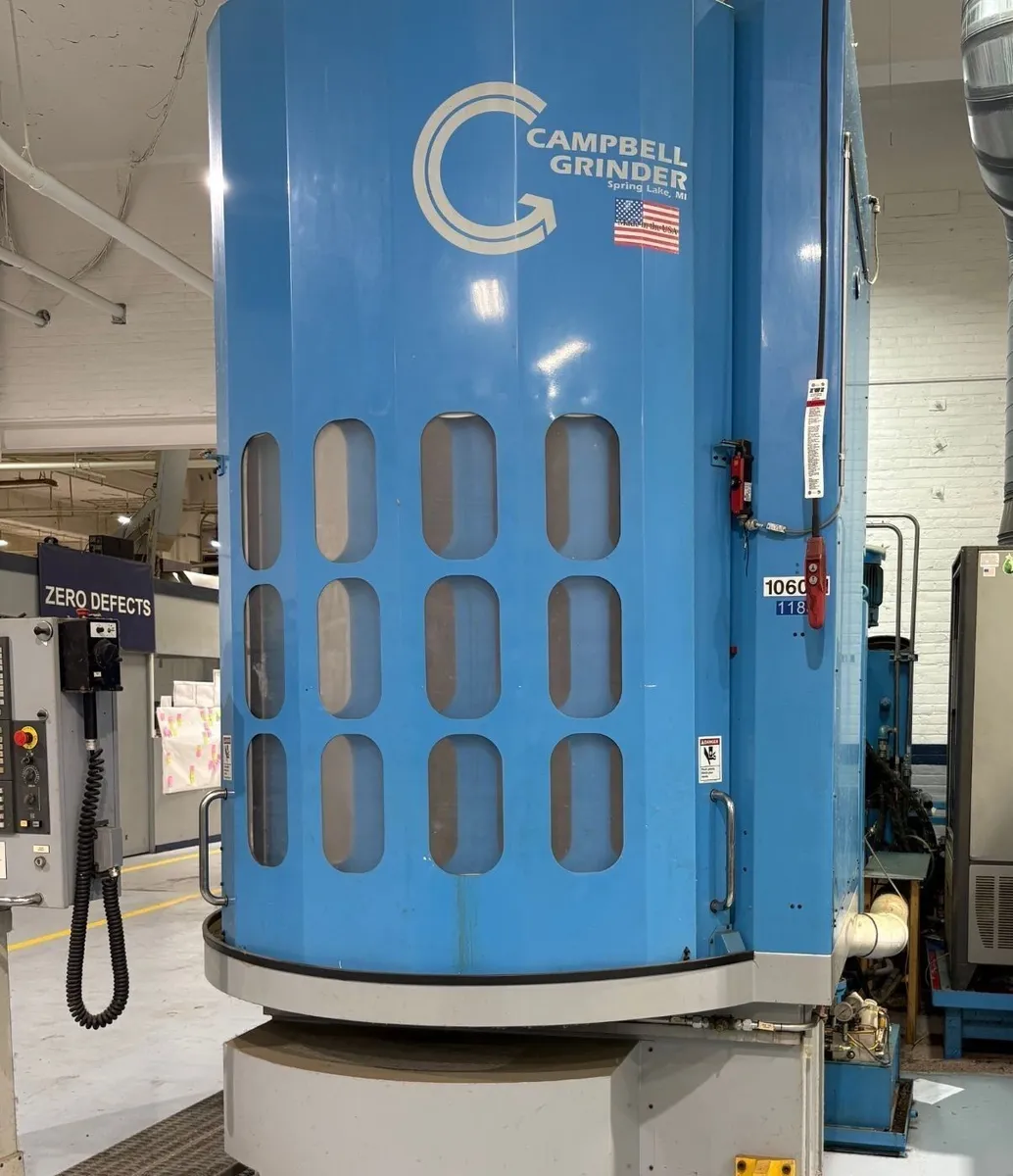

Campbell Model 750-36-36-36/42 CNC Vertical Universal Grinder (2012)

Campbell Model 750-36-36-36/42 CNC Vertical Universal Grinder (2012)

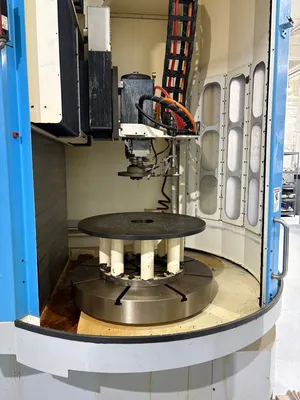

Table Diameter: 36"
Swing Diameter: 42″
Part Height – Maximum: 24″ (Arbor Dependent) and Approach Dependent, Angular or Straight Approach
X-Axis: 36″
Z-Axis: 36″
Main Grinding Spindle: 25 HP
Campbell grinder for sale Spindle Speeds: 1,500 to 7,200 RPM
Spindle Taper: HSK-80
B-Axis (Spindle Swivel): +/- 180 Degrees
Table Drive Motor (A.C. Digital Servo “Whisper Drive”): 7.5 HP
C-Axis Table Drive: 0 – 150 RPM
Table Run-Out, Radial & Axial: 0.0001″
Rotary Dresser Spindle Motor: 10 HP / 3600 RPM
Electrics: 480/3/60
Floor Space Required: 208″ L-R x 166″ F-B x 139″ H
Approximate Weight: 25,000 Lbs.
